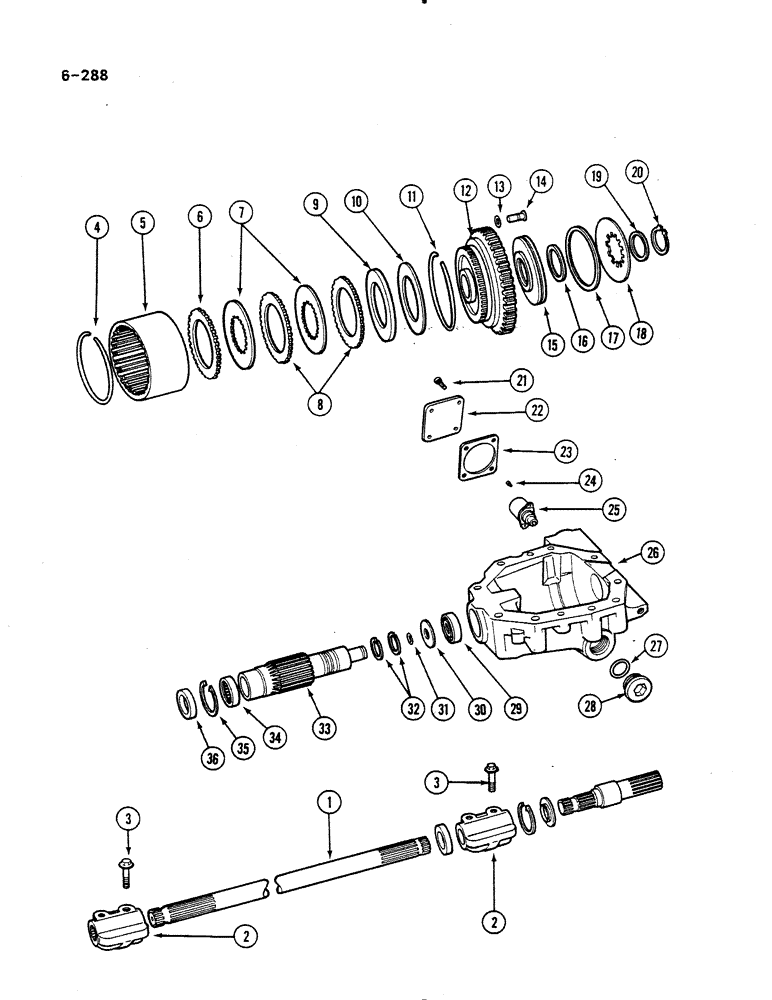

Запчасти Case IH 485 (6-288) - TRANSFER GEARBOX, 4 WHEEL DRIVE, MFD AXLE APL-325, P.I.N. 18001 AND AFTER (06) - POWER TRAIN

82360C91

DRIVE

BOX transfer gear, Includes: Ref. 4 thru 36 in this figure and Ref. 37 thru 39 in Figure 6-290

1шт.

1

1335029C1

DRIVE SHAFT

SHAFT drive

1шт.

2

90031C2

SPLINED COUPLING,21T

COUPLING drive shaft

2шт.

3

90088C1

BOLT,M12 x 1.5 x 47mm, Cl 12.9

hex, M12 x 45 mm

4шт.

4

81190C1

RING, SNAP

RING snap

1шт.

5

81184C1

RING CARRIER

CARRIER

1шт.

6

81189C1

WASHER

WASHER

1шт.

7

81187C1

DRIVEN PLATE

PLATE inner

8шт.

8

81188C1

DRIVE PLATE

PLATE outer

9шт.

9

81183C1

WASHER

WASHER

1шт.

10

81186C1

WASHER

shim, 4.0 mm, for various other size washers from 4.4 to 6.8 mm see FEC 6096

1шт.

11

81185C1

CIRCLIP

RING snap

1шт.

12

81174C1

GEAR

1шт.

13

81179C1

O-RING,1.5mm Thk x 7mm ID, 70 Duro

7 x 1.5 mm

1шт.

14

81178C1

LARGE PIN,17mm OD x 34.7mm L

BOLT

1шт.

15

81175C1

PISTON

1шт.

16

81176C1

PACKING RING

RING, 51.5 x 2.5 mm

1шт.

17

81177C1

RING,Square, 2.5mm Thk x 107mm ID

RING, 107 x 2.5 mm

1шт.

18

81180C1

SPRING

SPRING

1шт.

19

81181C1

RING

1шт.

20

933283R1

SNAP RING,M45, Ext

RING retaining, external, 40.72 mm, subs to 800-1145, Replaces 933283C1

1шт.

21

930244R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, M8 x 25 mm, class 8.8

1шт.

22

81173C1

COVER

valve

1шт.

23

81172C1

PACKING RING

GASKET valve cover

1шт.

24

930974R1

HEX SOC SCREW,M5 x 10mm, Cl 8.8

SCREW cap, hex socket, M5 x 10 mm, class 8.8

2шт.

25

81171C1

VALVE

1шт.

26

81170C1

CASE

HOUSING transfer gear, includes ball listed below

1шт.

3057501R1

BALL

6 mm diameter

4шт.

27

81168C1

O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro

33 x 2 mm

1шт.

28

905476R1

PLUG

hex socket, M36, grade 5.8

1шт.

29

81088C1

BEARING, ROLLER

BEARING roller

1шт.

30

81089C1

THRUST WASHER

WASHER

1шт.

31

81182C1

RING

19 x 1.5 mm

1шт.

32

81191C1

SEALING RING

RING, 35 x 2 mm

2шт.

33

81192C1

SHAFT

drive

1шт.

34

81093C1

BEARING, ROLLER

BEARING roller

1шт.

35

933086R1

SNAP RING,M30, Ext

- retaining, external, 27.48 mm

1шт.

36

81086C1

OIL SEAL

SEAL oil

1шт.
