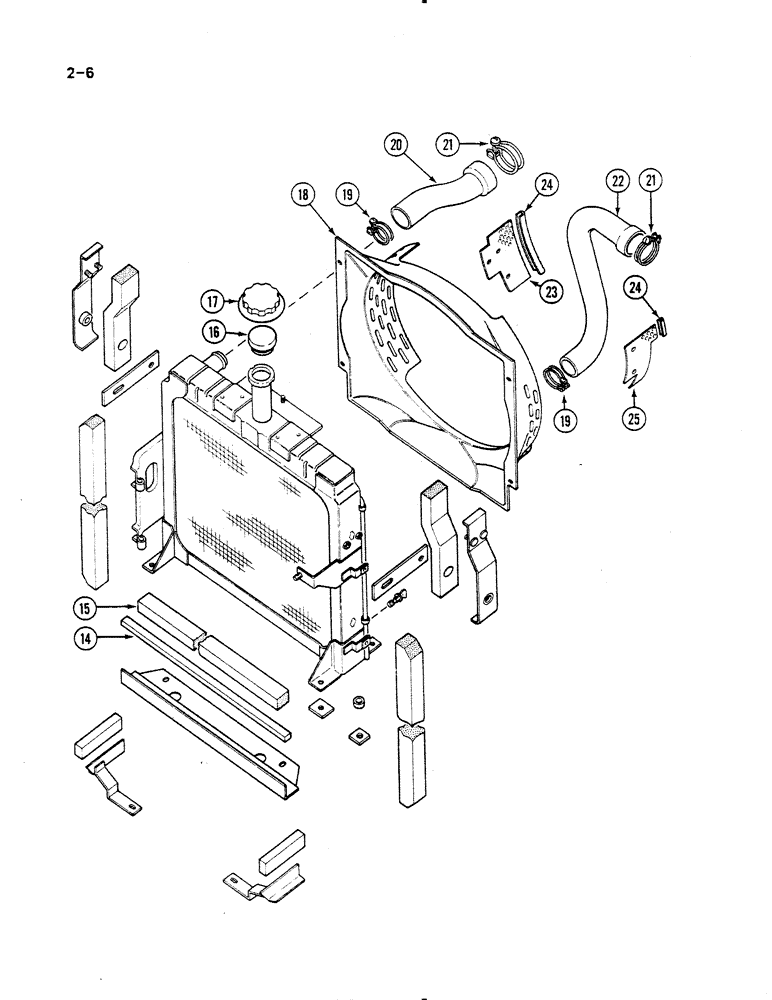

Запчасти Case IH 485 (2-006) - RADIATOR AND CONNECTIONS, P.I.N. 18001 AND AFTER (CONTD) (02) - ENGINE

14

NSS

NOT SOLD SEPARAT

SEAL baffle, foam, 416 mm, cut from bulk length

1шт.

MFD tractors only

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL lower radiator, 450 mm, cut from bulk length

1шт.

Not fitted on MFD tractorrs

1шт.

1500626C91

PLUG

CAP radiator, complete, Includes: Ref. 16 and 17

1шт.

16

3118639R1

CAP

radiator

1шт.

17

532674R1

PLUG

COVER radiator cap

1шт.

18

527475R3

HOUSING

fan

1шт.

18

1333138C1

GUARD

SHROUD fan, orchard version

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

95-11028

WASHER,1/4"

flat, 0.281 x 0.625 x 0.051 inch

4шт.

19

39149H

HOSE CLAMP

CLAMP hose, No. 64

2шт.

19

705935R91

HOSE CLAMP

CLAMP hose, Serial Range: optional-39149H

2шт.

20

1502065C1

RADIATOR HOSE,1.50" ID, 2.00" ID x 8.98"

1.50" ID, 2.00" mm ID X 8.98", Inlet

1шт.

21

39205H

CLAMP

hose, No. 80, type C

2шт.

21

706082R91

CLAMP

hose, Serial Range: optional-39205H

2шт.

22

402189R1

LARGE HOSE,1.50" ID, 2.00" ID x 10.39", SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A OR SAE 20R4, CLASS R, GRADE 1A, SAE 20R4 CLASS D1, Outlet 1.50" ID, 2.00" ID x 10.39", SAE 20R2

1шт.

23

99768C1

GUARD

SCREEN finger guard, right

1шт.

30325R1

WASHER,M6 x 13 x 2, HT

- M6 x 13 x 2, HT

3шт.

933833R1

LOCK WASHER,M6

WASHER lock, 6 mm

3шт.

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

3шт.

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, M6 x 12 mm, class 8.8

3шт.

24

NSS

NOT SOLD SEPARAT

STRIP edging, cut from 1265283C1

2шт.

24

1265283C2

STRIP

edging, bulk length

1шт.

25

99767C1

GUARD

SCREEN finger guard, left

1шт.

933833R1

LOCK WASHER,M6

WASHER lock, 6 mm

2шт.

30325R1

WASHER,M6 x 13 x 2, HT

- M6 x 13 x 2, HT

2шт.

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

2шт.

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, M6 x 12 mm, class 8.8

2шт.
