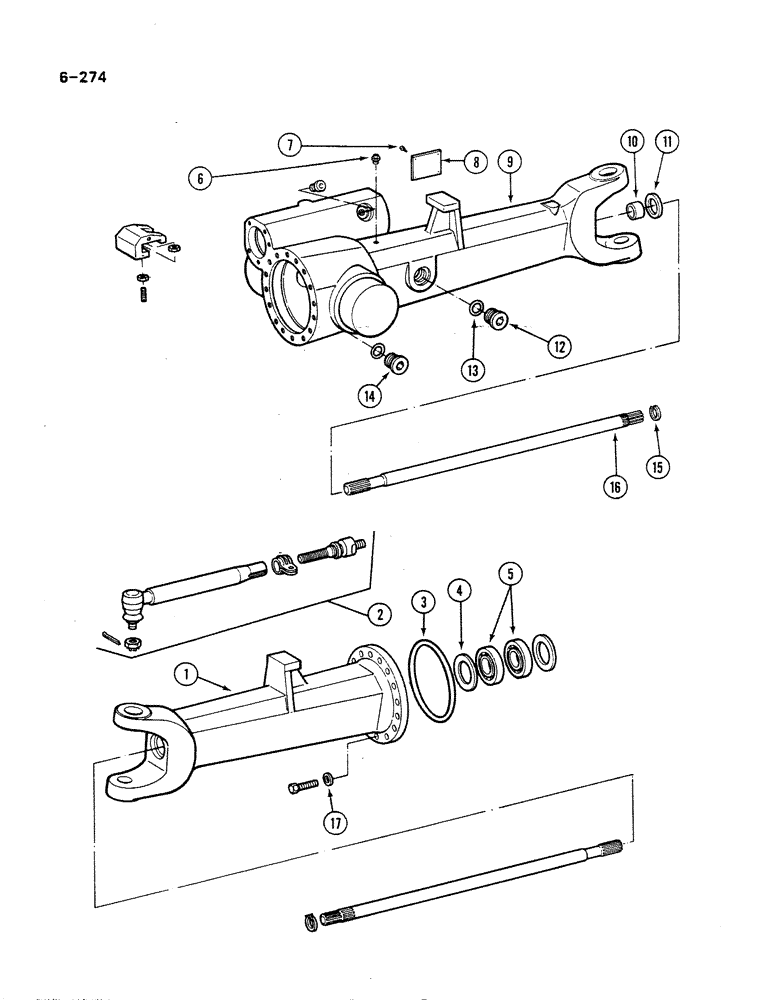

Запчасти Case IH 485 (6-274) - AXLE HOUSING, 4 WHEEL DRIVE, MFD AXLES APL-330 AND APL-325, P.I.N. 18001 AND AFTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
HOUSING ASSEMBLY, axle, mechanical, front drive, Includes: Ref. 1 thru 17
1шт.
1
81407C1
CASE
HOUSING axle, part II
1шт.
2
81289C1
DRAG LINK
ROD tie, consists of 1968464C1, 1968463C1 and 1968467C1
2шт.
1968446C1
SLEEVE CYLINDER
JOINT ball
1шт.
1968463C1
BALL JOINT
JOINT threaded
1шт.
1968467C1
HOSE CLAMP
CLAMP
1шт.
3
81279C1
O-RING,3mm Thk x 156mm ID, 80 Duro
156 x 3 mm
1шт.
4
81269C1
SHIM
DISK, 0.50 mm
2шт.
4
81257C1
DISC
DISK, 0.60 mm
2шт.
4
81258C1
DISC
DISK, 0.70 mm
2шт.
4
81270C1
DISC
DISK, 0.75 mm
2шт.
4
81259C1
DISC
DISK, 0.80 mm
2шт.
4
81271C1
DISC
DISK, 0.85 mm
2шт.
4
81260C1
SHIM
DISK, 0.90 mm
2шт.
4
81272C1
DISC
DISK, 0.95 mm
2шт.
4
81261C1
SHIM
DISK, 1.00 mm
2шт.
4
81273C1
SHIM
DISK, 1.05 mm
2шт.
4
81262C1
SHIM
DISK, 1.10 mm
2шт.
4
81274C1
DISC
DISK, 1.15 mm
2шт.
4
81263C1
DISC
DISK, 1.20 mm
2шт.
4
81275C1
DISC
DISK, 1.25 mm
2шт.
4
81264C1
DISC
DISK, 1.30 mm
2шт.
4
81276C1
DISC
DISK, 1.35 mm
2шт.
4
81265C1
DISC
DISK, 1.40 mm
2шт.
4
81266C1
DISC
DISK, 1.50 mm
2шт.
4
81267C1
DISC
DISK, 1.60 mm
2шт.
4
81268C1
DISC
DISK, 1.80 mm
2шт.
5
81277C1
RACE
BEARING outer race
2шт.
5
81278C1
RACE
BEARING inner race
2шт.
6
898138H1
BREATHER
VALVE breather
2шт.
7
932658R1
GROOVED PIN,Rd Hd, M3 x 5
PIN stud, groove drive, 3 x 5 mm
4шт.
8
NSS
NOT SOLD SEPARAT
PLATE name
1шт.
9
81406C1
HOUSING ASSY.
HOUSING axle, part I
1шт.
10
81410C1
BUSHING
SLEEVE
2шт.
11
81411C1
SEAL ASSY.
SEAL shaft
2шт.
12
905476R1
PLUG
hex socket, M36, grade 5.8
1шт.
13
81284C1
O-RING,2.2mm Thk x 33mm ID
32 x 2 mm
2шт.
14
81283C1
PLUG
screw
1шт.
15
81409C1
RING, SNAP
RING retaining
2шт.
16
1968451C1
SHAFT
plug in, Replaces 81408C1
2шт.
17
3222147R1
DISC
WASHER flat, 14 mm
16шт.
Выбрано товаров: 41
