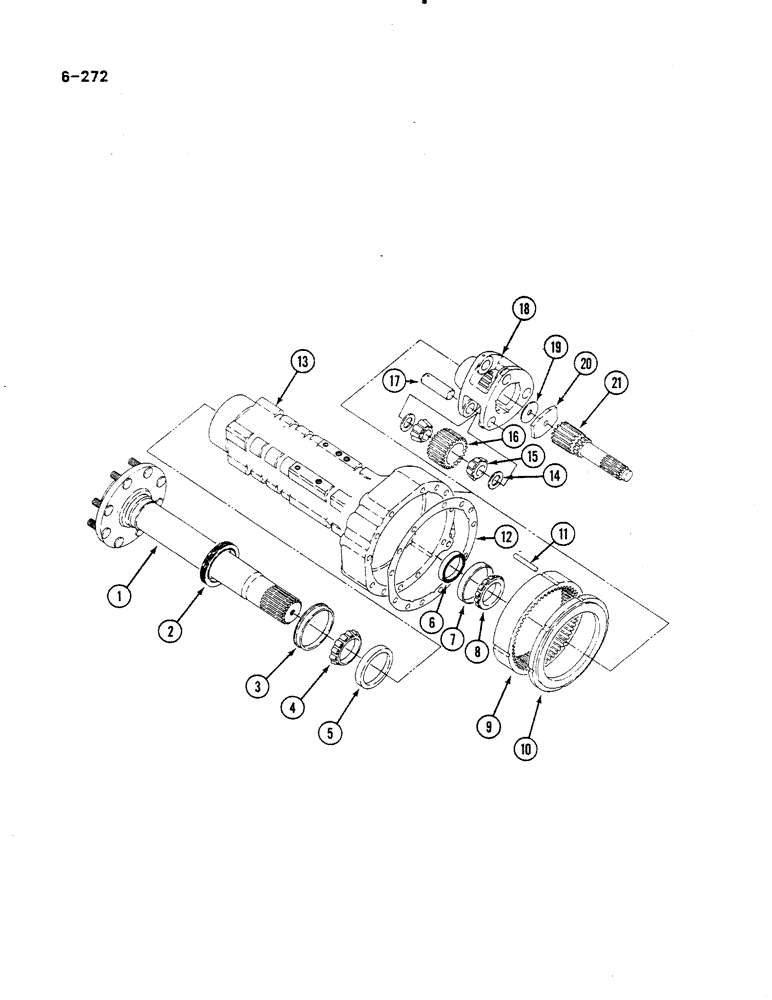

Запчасти Case IH 485 (6-272) - REAR AXLE, CARRIER AND CONNECTIONS (06) - POWER TRAIN

1

1349300C1

HALF SHAFT

AXLE ASSEMBLY, rear, Replaces 404340R21

2шт.

1349235C1

WHEEL BOLT,Knurled, M16 x 1.5 x 55mm, Cl 10.9, Full Thd

BOLT rear wheel, Replaces 404341R3

16шт.

1349236C1

NUT

rear wheel mounting, Replaces 3047575R3

16шт.

2

105470C1

OIL SEAL

SEAL oil, rear axle, outer

2шт.

3

399754R1

SLEEVE

wear

2шт.

4

ST2000A

TAPERED BEARING

BEARING roller, rear axle, outer

2шт.

4

1500904C91

ROLLER BEARING

roller, Serial Range: optional-ST2000A

1шт.

4

399756R91

BEARING ASSY,2.6876" ID x 4.3307" OD x 0.8661, 0.7411"

BEARING roller, optional to ST2000A

1шт.

4

102160H

BEARING ASSY

BEARING roller, Serial Range: optional-ST2000A

1шт.

5

NSS

NOT SOLD SEPARAT

CUP bearing, order bearing ST2000A

2шт.

6

380200R92

OIL SEAL

oil, rear axle, inner

2шт.

7

NSS

NOT SOLD SEPARAT

CUP bearing, order bearing 299188R91

2шт.

8

299188R91

BEARING ASSY

roller, rear axle, inner

2шт.

8

298189R1

BEARING

ASSEMBLY, Serial Range: optional-299188R91

1шт.

8

1500907C91

ROLLER BEARING

roller, Serial Range: optional-299188R91

1шт.

9

535316R1

GEAR, RING

GEAR ring, 66 teeth

2шт.

10

114620C1

RING,260mm OD

brake, outer disc

2шт.

11

529685R1

DOWEL

PIN dowel, 3/8 x 2-1/4 inch

6шт.

12

399762R3

GASKET

carrier, rear axle

2шт.

13

94225C1

AXLE CARRIER

CARRIER rear axle, left

1шт.

13

94226C1

AXLE CARRIER

CARRIER rear axle, right

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

hex, 5/8 NC x 4-1/4 inch, grade 8, 2 wheel drive tractors

22шт.

223444C1

BOLT hex, 5/8 NC x 4 inch grade 8, MFD tractors, Start Serial: 18001

22шт.

14

65420C1

SHIM KIT

KIT service, planet gear shim, includes shims listed below

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.042 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.049 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.056 inch

3шт.

15

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

inner, planet gear

12шт.

16

399784R2

PINION

GEAR planet, 25 teeth

6шт.

17

399788R1

PIN

planet shaft

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

18

404339R3

PINION CARRIER

CARRIER planet gear

2шт.

19

65422C1

SHIM KIT

KIT service, rear axle, retainer shims

1шт.

20

399748R1

SPACER

planet carrier

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

hex, 5/8 NF x 1-1/2 inch, grade 8

2шт.

21

404338R1

SHAFT

planetary drive, right

1шт.

21

404337R1

SHAFT

planetary drive, left

1шт.
