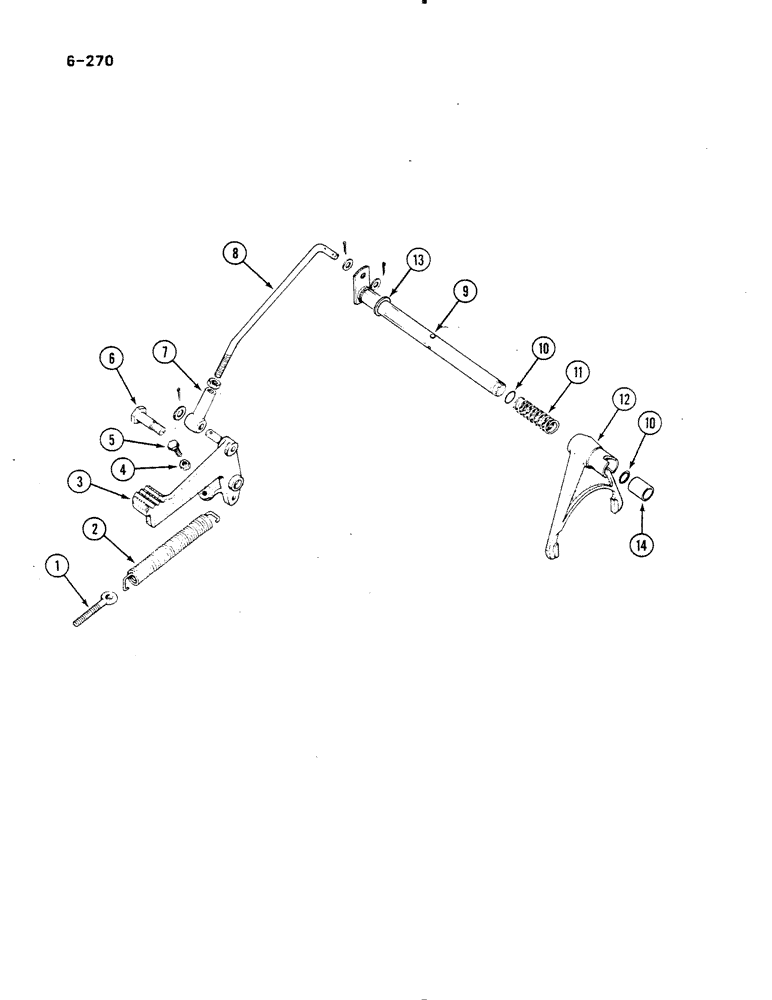

Запчасти Case IH 485 (6-270) - DIFFERENTIAL LOCK (06) - POWER TRAIN

1

3121850R1

EYEBOLT,3/8" - 16 x 3"

BOLT eye, pedal return spring

1шт.

102635

NUT,3/8"-16, G5

2шт.

2

3121849R1

SPRING

return, differential lock pedal

1шт.

3

66441C1

PEDAL

differential lock

1шт.

11002VA

WASHER

plain, 0.531 x 0.875 x 0.054 inch

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

4

109084

NUT,1/4"-20, G5

1шт.

5

1282707C1

BOLT,1/4" - 20 x 1", Full Thd

BOLT pedal adjusting, special, 1/4 x 1 inch

1шт.

6

527885R1

BOLT

BOLT pivot, differential lock pedal

1шт.

7

527880R1

END

connecting

1шт.

8

527879R1

ROD

differential lock pedal

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

Q1597

WASHER

plain, 0.406 x 0.734 x 0.056 inch

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

9

1500384C1

SHAFT ASSY.

SHAFT differential lock, 2 wheel drive tractors

1шт.

9

1289507C1

SHAFT

differential lock, MFD tractors, Start Serial: 18001

1шт.

10

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 inch, class 5

2шт.

11

527878R1

SPRING

actuating, differential lock fork

1шт.

12

1500386C1

FORK

differential lock shaft, includes the differential lock pin listed below

1шт.

1500388C2

PIN

differential lock, cam actuating

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

1шт.

Q3501

WASHER

plain, 0.781 x 1.25 x 0.054 inch

1шт.

13

551658R1

WASHER

plain, 0.781 x 1.25 x 0.027 inch

1шт.

Q3501

WASHER

plain, 0.781 x 1.25 x 0.054 inch

1шт.

14

94272C1

BUSHING

rear frame adaptor, 2 wheel drive tractors

1шт.
