(6-266) - DIFFERENTIAL, 4 WHEEL DRIVE, MFD AXLE APL-330, P.I.N. 18001 AND AFTER

Запчасти Case IH 485 (6-266) - DIFFERENTIAL, 4 WHEEL DRIVE, MFD AXLE APL-330, P.I.N. 18001 AND AFTER (06) - POWER TRAIN

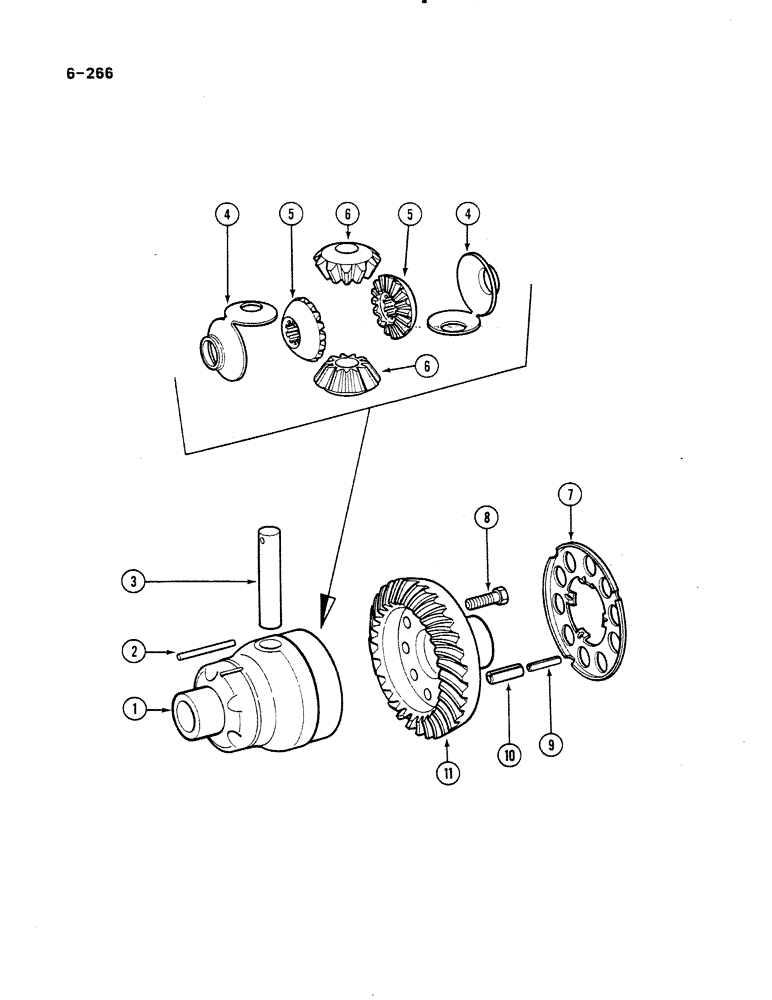

Схема запчастей Case IH 485 - (6-266) - DIFFERENTIAL, 4 WHEEL DRIVE, MFD AXLE APL-330, P.I.N. 18001 AND AFTER (06) - POWER TRAIN
3
7
8
4
1
6
2
5
10
6
11
5
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

DIFFERENTIAL ASSEMBLY, Includes Ref. 1 - 11

1шт.

1

81400C1

HOUSING

CASE differential

1шт.

2

932183R1

LOCK PIN,M5 x 50, Slotted

PIN slotted spring, 5 x 50 mm

1шт.

3

81252C1

AXLE DIFFERENTIAL

SHAFT differential

1шт.

4

81402C1

THRUST WASHER

WASHER thrust

2шт.

5

81401C1

CONE PINION

GEAR differential, side

2шт.

6

81403C1

CONE PINION

GEAR pinion, differential

2шт.

7

81253C1

PLATE

lock

1шт.

8

931369R1

BOLT,Hex, M10 x 1.5 x 28mm, Cl 10.9, Full Thd

BOLT hex, M10 x 28 mm, class 10.9

10шт.

9

932671R1

LOCK PIN,M6 x 30, Slotted

PIN, slotted spring, 6 x 30 mm

5шт.

10

Q2948

LOCK PIN,M10 x 30, Slotted

PIN, LOCK, M10 x 30, Slotted

5шт.

11

NSS

NOT SOLD SEPARAT

GEAR bevel, order gear set 81365C1

1шт.
