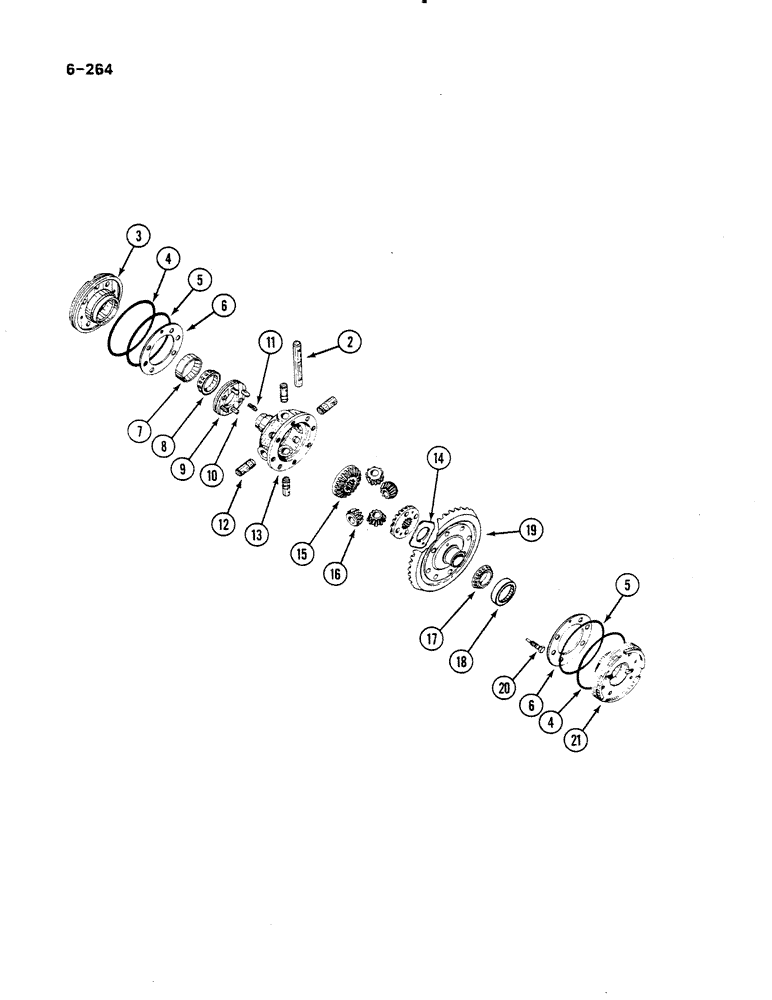

Запчасти Case IH 485 (6-264) - DIFFERENTIAL AND CONNECTIONS (06) - POWER TRAIN

2

399775R1

SHAFT

differential pinion

2шт.

3

399770R2

BEARING CARRIER

CARRIER differential bearing, right

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

hex, 1/2 NC x 1-1/2 inch, grade 8

4шт.

4

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 inch, class 6

2шт.

5

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 x 7-7/8 inch

2шт.

6

65419C1

BEARING CARRIER

KIT shims, differential bearing carrier

1шт.

7

105504H

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm

roller, Includes: Ref. 8

1шт.

7

402353R91

BEARING ASSY,2.25" ID x 3.815" OD x 0.8268"

roller, optional to 105504H, Includes: Ref. 8

1шт.

7

1500909C91

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.1 mm

roller, optional to 105504H, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING cone, differential right

1шт.

9

399764R11

LOCKING RING

RING differential lock

1шт.

10

399765R1

PIN

coupling

4шт.

11

400867R1

SPRING

differential lock

2шт.

12

NSS

NOT SOLD SEPARAT

Not used in this application

1шт.

13

399763R1

PINION CARRIER

CARRIER differential

1шт.

14

399778R1

THRUST WASHER

thrust, differential bevel gear

1шт.

15

404336R1

PINION

GEAR bevel, differential, 20 teeth

2шт.

16

399776R1

PINION

GEAR differential pinion, 10 teeth

2шт.

17

105502H

TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"

roller, Includes: Ref. 18

1шт.

17

399766R91

ROLLER BEARING

BEARING roller, optional to 105502H, Includes: Ref. 18

1шт.

17

1502182C91

TAPERED BEARING,57.163 mm ID x 97.655 mm OD x 24.808 mm

roller, optional to 105502H, Includes: Ref. 18

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING cup, differential left

1шт.

19

99449C1

GEAR, BEVEL

GEAR bevel, matched set with shaft, 12 to 53 teeth

1шт.

19

94252C1

GEAR, BEVEL

SET bevel gear and shaft, matched, 11 to 52 teeth

1шт.

20

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT dowel, hex, 1/2 NC x 2-1/8 inch

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

hex, 1/2 NC x 1-1/2 inch, grade 8

7шт.

21

399769R2

BEARING CARRIER

CARRIER differential bearing, left

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

hex, 1/2 NC x 1-1/2 inch, grade 8

4шт.
