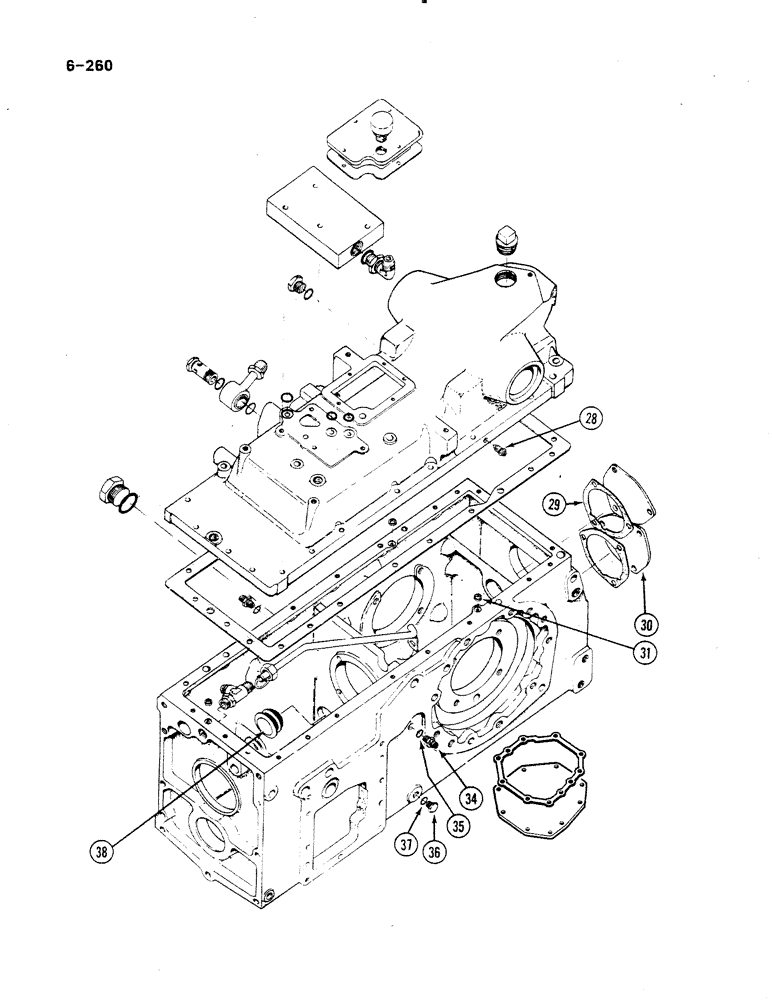

Запчасти Case IH 485 (6-260) - REAR FRAME, COVER AND CONNECTIONS (CONTD) (06) - POWER TRAIN

28

82301R1

BLEEDER,3/8" - 24 x 117mm

brake bleed

2шт.

28

3068777R1

SCREW

brake bleed, Serial Range: optional-82301R1

2шт.

29

399843R3

GASKET

rear frame, IPTO flange

2шт.

30

399842R1

COVER

rear frame

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

31

406734R1

SEAL

teflon

3шт.

32

NSS

NOT SOLD SEPARAT

Not used in this application

1шт.

33

NSS

NOT SOLD SEPARAT

Not used in this application

1шт.

34

3129671R1

FITTING

ADAPTER brake pipe, left brake inlet tube

1шт.

35

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

36

9410356

PLUG

O-ring boss, 7/16 inch NF

1шт.

37

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

38

527748R1

PLUG

oil reservoir

1шт.
