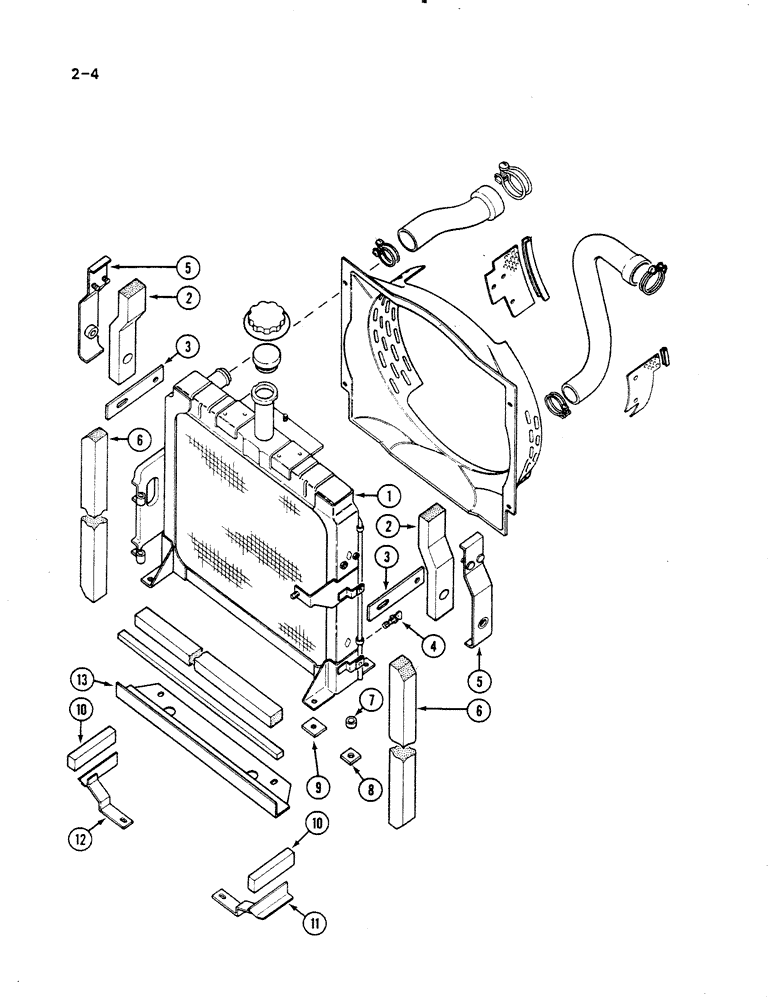

Запчасти Case IH 485 (2-004) - RADIATOR AND CONNECTIONS, P.I.N. 18001 AND AFTER (02) - ENGINE

1

84524C93

RADIATOR

P/N 1536373C1 New Radiator W/New bolt pattern (D0039)

1шт.

1

1333111C1

RADIATOR

orchard version

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, grade 5, ZND

4шт.

Radiator rear mounting to bolster

1шт.

Radiator front mounting to bolster and grille, and hood support assembly.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Radiator rear mounting to bolster

1шт.

Radiator front mounting to bolster and grille, and hood support assembly.

1шт.

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

4шт.

7500032

BUSHING

NUT wing, 5/16 inch NC

1шт.

2

98934C1

SEAL

SEAL, foam, radiator side

2шт.

3

98905C1

BRACKET

STRAP, radiator mounting, Serial Range: -19948

1шт.

3

99996C1

BRACKET

SUPPORT, radiator mounting, Start Serial: 19948

1шт.

30175R1

WASHER,M8 x 17.5 x 2, HT

2шт.

30382R1

NUT,M8 x 1.25, Cl 10

Hex M8 x 1.25, Cl 10

2шт.

4

3113083R1

PLUG, DRAIN

VALVE drain, 1/4 inch

1шт.

5

98907C1

GUARD

SHIELD, radiator seal

2шт.

5

1333122C1

GUARD

SHIELD radiator seal, orchard version

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL foam, radiator side, 325 mm, cut from bulk length, P/N 73217C1, 1' piece

2шт.

7

99427C1

SPACER

BUSHING

4шт.

8

84525C1

SPACER

2шт.

9

47240D

PAD

radiator

4шт.

10

NSS

NOT SOLD SEPARAT

GASKET side panel, 4.7 inch, cut from 73228C1

2шт.

Not fitted on MFD tractorrs

1шт.

NSS

NOT SOLD SEPARAT

GASKET side panel, 7.7 inch, cut from 73228C1

2шт.

MFD tractors only

1шт.

73228C1

GASKET

SEAL FOAM, 4 foot roll

1шт.

11

98878C1

SUPPORT

side seal, short, left

1шт.

Not fitted on MFD tractorrs

1шт.

98874C1

SUPPORT

ASSEMBLY side seal long, left

1шт.

MFD tractors only

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

1шт.

12

98877C1

SUPPORT

side seal, short, right

1шт.

Not fitted on MFD tractorrs

1шт.

98873C1

SUPPORT

ASSEMBLY side seal long, right

1шт.

MFD tractors only

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

1шт.

13

98956C1

BAFFLE

lower air, short

1шт.

MFD tractors only

1шт.
