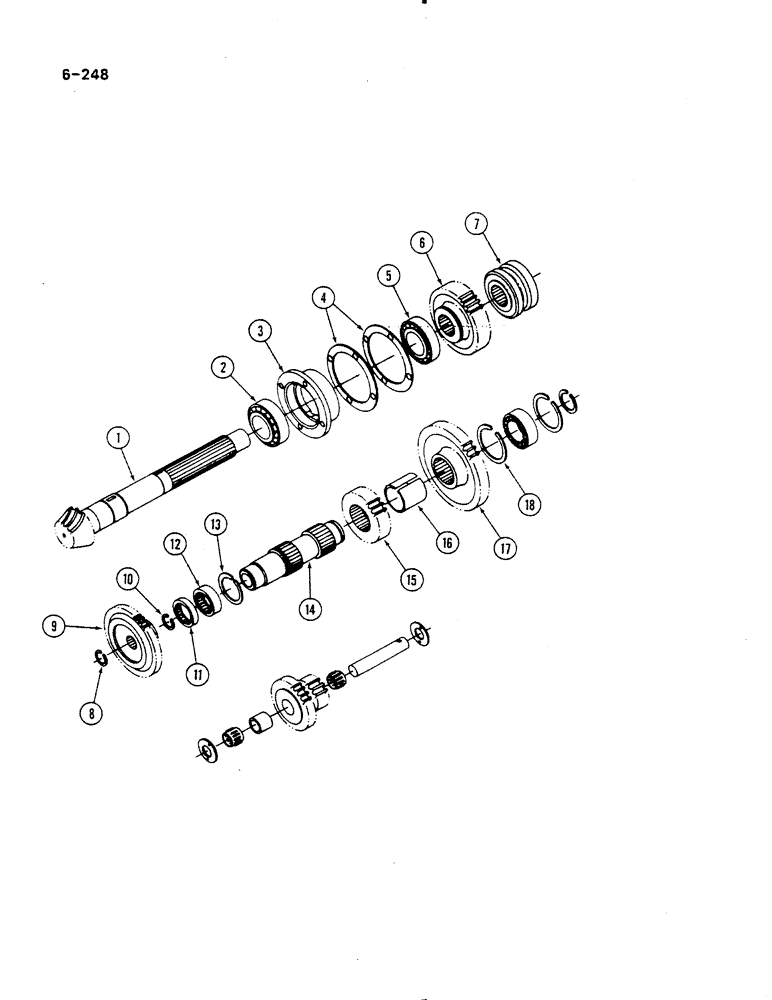

Запчасти Case IH 485 (6-248) - RANGE TRANSMISSION, IN REAR FRAME (06) - POWER TRAIN

1

99449C1

GEAR, BEVEL

GEAR bevel, matched set with shaft, 12/53 teeth

1шт.

FEC #4365 adapts 1954073C1 gear set.

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

main shaft, rear

1шт.

2

399824R91

ROLLER BEARING

BEARING, Serial Range: optional-399823R91

1шт.

2

1502181C91

BALL BEARING

, Serial Range: optional-399823R91

1шт.

3

399825R1

BEARING CUP

CAGE bearing

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

4шт.

4

65423C1

SHIM KIT

KIT shim, main shaft bearing cage

1шт.

5

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

main shaft, front

1шт.

5

399822R91

ROLLER BEARING

BEARING, Serial Range: optional-399821R91

1шт.

5

1502180C91

BALL BEARING

, Serial Range: optional-399821R91

1шт.

6

1286470C1

GEAR

sliding, forward and reverse, 42 teeth

1шт.

7

1277137C1

COLLAR ASSY.

COLLAR, high speed shift

1шт.

8

533266R1

RING, SNAP

RING retaining, external, 0.98 inch

1шт.

9

404218R1

GEAR

drive, pump, 55 teeth, Serial Range: -18001

1шт.

9

94404C1

PINION

GEAR drive, pump, 55 teeth, Start Serial: 18001

1шт.

10

399837R1

SNAP RING,#118, 1.121", Ext

RING retaining, external, 1.121 inch

1шт.

11

527747R91

BEARING, NEEDLE

BEARING needle, pump drive gear

1шт.

11

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING needle, Serial Range: optional-527747R91

1шт.

12

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING needle, countershaft

1шт.

12

527746R91

BEARING, NEEDLE

BEARING needle, Serial Range: optional-399820R9

1шт.

13

398264R1

SNAP RING,#215, 2.026", Ext

RING retaining, external, 2.026 inch

1шт.

14

404096R1

SHAFT

counter, range transmission, Serial Range: -18001

1шт.

14

94403C1

SHAFT

counter, range transmission, Start Serial: 18001

1шт.

15

103150C1

PINION

GEAR driving, lo range, 24 teeth

1шт.

16

399835R1

BUSHING

countershaft gears

1шт.

17

404097R1

GEAR

constant mesh, 46 teeth

1шт.

18

399832R1

RING, SNAP

RING retaining

1шт.
