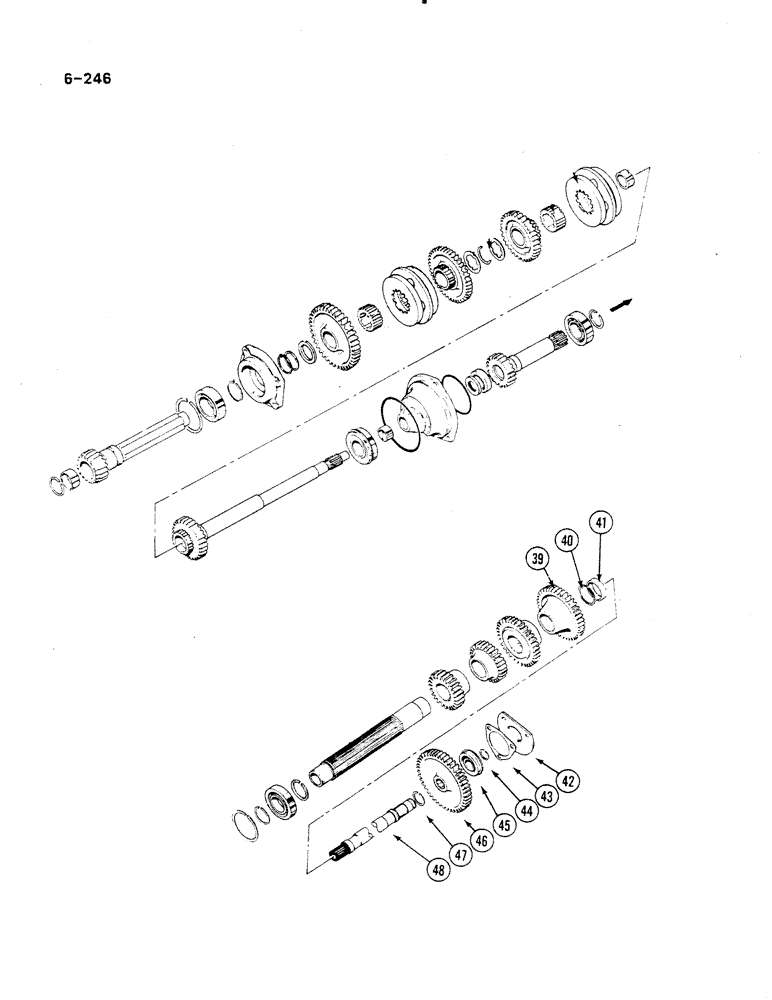

Запчасти Case IH 485 (6-246) - SPEED TRANSMISSION, IN CLUTCH HOUSING (CONTD) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
39
404090R1
PINION
GEAR driven, constant mesh, 39 teeth
1шт.
40
398264R1
SNAP RING,#215, 2.026", Ext
RING retaining, external, 2.026 inch
1шт.
41
399820R91
BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W
BEARING needle, countershaft, Serial Range: -18001
1шт.
41
94376C91
NEEDLE BEARING,47.625 mm ID x 57.162 mm OD x 25.4 mm
needle, Start Serial: 18001
1шт.
42
398259R1
LARGE PLATE
RETAINER, IPTO driven shaft, front bearing cap
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
3шт.
43
92648C1
GASKET,0.5mm Thk
IPTO driven shaft, front bearing retainer
1шт.
44
A32438
SNAP RING
RING retaining, IPTO driven shaft, front bearing
1шт.
45
ST367
BEARING, BALL,25 mm ID x 62 mm OD x 17 mm
BEARING ball, PTO driven shaft, front
1шт.
45
67654C91
BALL BEARING
BEARING ball, Serial Range: optional-ST367
1шт.
45
65353C91
BALL BEARING
BEARING ball, Serial Range: optional-ST367
1шт.
45
69384C91
BALL BEARING
BEARING ball, Serial Range: optional-ST367
1шт.
45
1502192C91
BALL BEARING,25 mm ID x 67.7 mm OD x 17 mm
BEARING ball, optional to ST367
1шт.
45
80491C91
BEARING ASSY
ball, Serial Range: optional-ST367
1шт.
46
404214R1
GEAR
driven, IPTO, 46 teeth
1шт.
47
399837R1
SNAP RING,#118, 1.121", Ext
RING retaining, external, 1.121 inch
1шт.
48
536748R1
SHAFT ASSY.
SHAFT driven, IPTO, front, Serial Range: -18001
1шт.
48
99439C1
SHAFT
driven, IPTO, front, Start Serial: 18001
1шт.
1277488C2
SEAL KIT
KIT service, seals, includes parts listed below and instructions
1шт.
NSS
NOT SOLD SEPARAT
SLEEVE installation
2шт.
NSS
NOT SOLD SEPARAT
SEAL oil, clutch shaft
1шт.
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
355740R1
O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro
3-3/4 x 4 inch, class 5
1шт.
NSS
NOT SOLD SEPARAT
SEAL oil, PTO drive shaft
1шт.
3129030R2
SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk
SEAL oil, release sleeve
1шт.
NSS
NOT SOLD SEPARAT
INSTRUCTIONS fitting
1шт.
Выбрано товаров: 26
