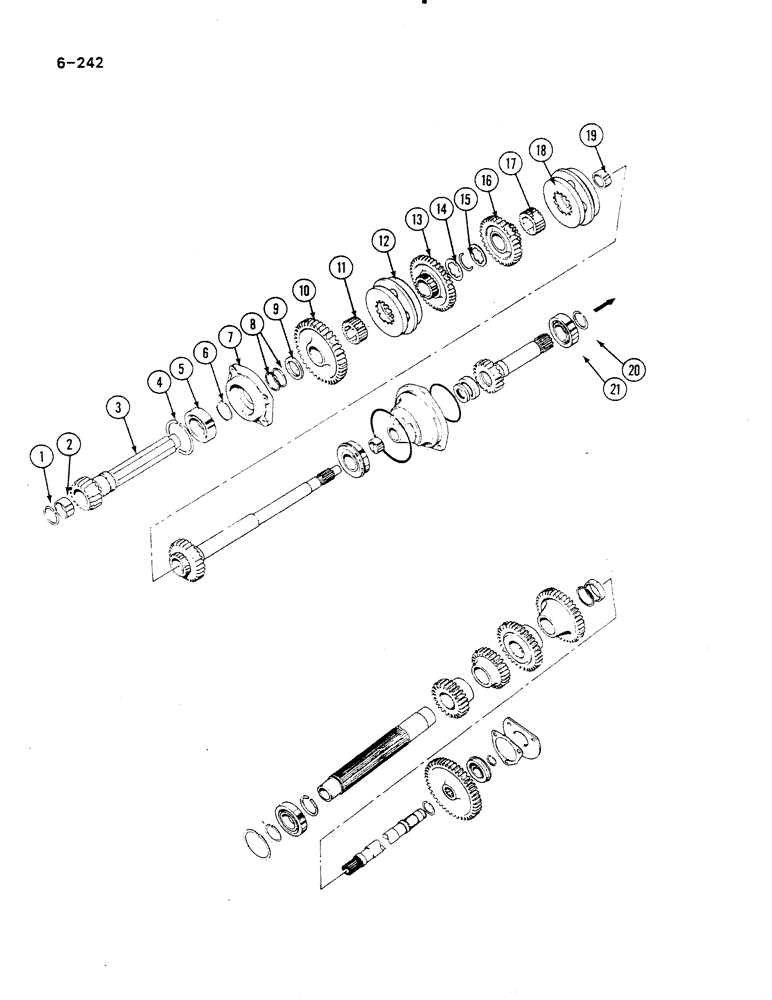

Запчасти Case IH 485 (6-242) - SPEED TRANSMISSION, IN CLUTCH HOUSING (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
66014C1
SNAP RING
RING snap, internal
1шт.
2
613639C91
NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W
needle
1шт.
3
65258C1
SHAFT
main, speed transmission
1шт.
3
3118323R11
SHAFT
main, speed transmission, with 2 speed power shift
1шт.
4
A32422
SNAP RING,2.36mm Thk, Int
RING snap, internal
1шт.
5
20161D
BEARING, BALL,50 mm ID x 90 mm OD x 20 mm
BEARING ball, optional to ST264
1шт.
5
71271C91
BALL BEARING
BEARING ball, Serial Range: optional-ST264
1шт.
5
704234R91
BALL BEARING
BEARING ball, Serial Range: optional-ST264
1шт.
5
3048701R91
BALL BEARING
BEARING ball, Serial Range: optional-ST264
1шт.
6
A27089
SNAP RING,2.36mm Thk, Ext
RING retaining
1шт.
7
534411R1
BEARING ASSY
CAGE, main shaft bearing
1шт.
NLS
NO LONGER SERVICED
hex, 3/8 NC x 1 inch, grade 5
4шт.
8
404281R1
RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk
sealing
2шт.
9
398332R1
WASHER
mainshaft bearing cage
1шт.
10
398331R2
PINION
GEAR driven, 1st speed, 41 teeth
1шт.
11
398325R1
HUB
speed shift
1шт.
12
65793C2
SYNCHRONIZER
with cups
1шт.
13
398330R3
PINION
GEAR driven, 2nd speed, 33 teeth
1шт.
14
398328R2
THRUST WASHER
WASHER thrust, main shaft
2шт.
15
398329R1
CIRCLIP
RING snap, synchronizer locating
1шт.
16
398327R3
PINION
GEAR driven, 4th speed, 24 teeth
1шт.
17
398325R1
HUB
speed shift
1шт.
18
65793C2
SYNCHRONIZER
with cups
1шт.
19
531168R91
BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W
BEARING needle
1шт.
20
379511R1
SNAP RING,#177, 1.657", Ext
RING retaining, external, 1.657 inch
1шт.
21
67653C91
BEARING
ball, PTO drive shaft, Serial Range: optional-ST342
1шт.
21
65354C91
BALL BEARING
BEARING ball, PTO drive shaft, Serial Range: optional-ST342
1шт.
21
1502094C91
BALL BEARING,44.9945 mm ID x 84.9945 mm OD x 18.94 mm
ball, PTO drive shaft, optional to ST342
1шт.
Выбрано товаров: 30
