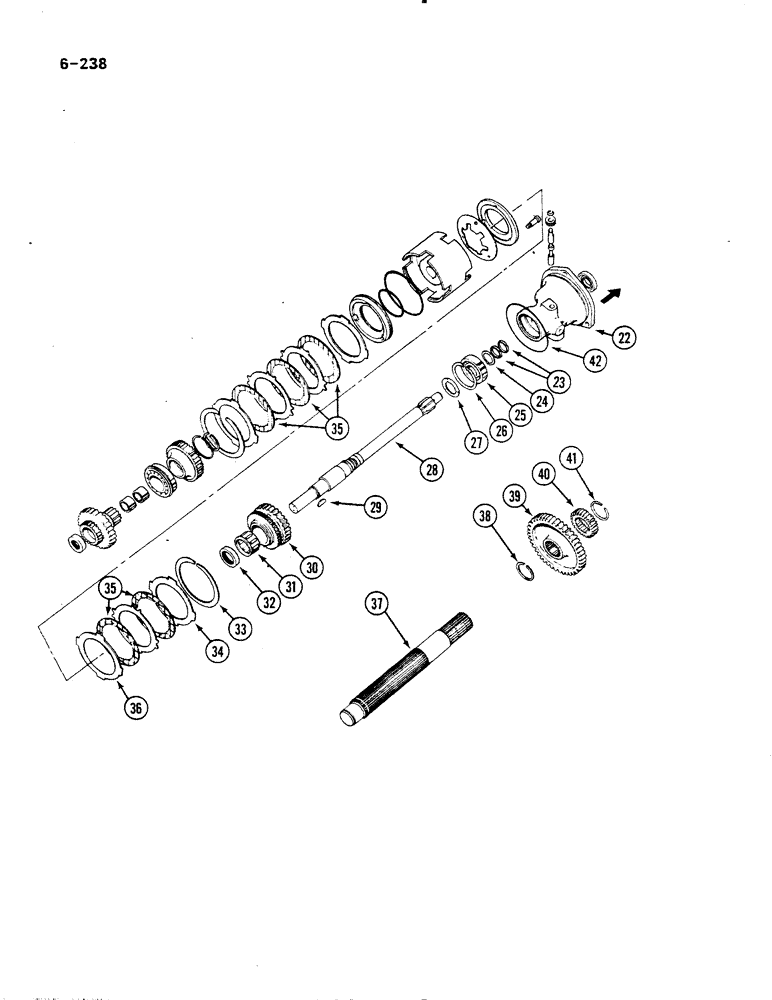

Запчасти Case IH 485 (6-238) - TWO SPEED POWER SHIFT, P.I.N. 18001 AND AFTER (CONTD) (06) - POWER TRAIN

22

98555C1

HOUSING

CAGE, IPTO and clutch cup retainer

1шт.

23

85038C1

SEALING RING,27.15mm ID x 30.4mm OD x 2.29mm Thk

piston, clutch shaft

2шт.

24

A21619

CIRCLIP

RING retaining, clutch shaft bearing, outer

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball

1шт.

25

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

BEARING ball, optional to ST205A

1шт.

25

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

BEARING ball, optional to ST205A

1шт.

25

71270C91

BEARING, BALL

BEARING ball, Serial Range: optional-ST205A

1шт.

25

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball, optional to ST205A

1шт.

26

377911R1

RING, SNAP

RING retaining, inner, clutch shaft bearing

1шт.

27

402562R1

THRUST WASHER

WASHER thrust, clutch shaft

1шт.

28

92757C91

SHAFT

clutch

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

SCREW set, hex socket, 1/4 NC x 1/4 inch

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex socket, 1/4 NC x 1/4 inch, optional to 222386

1шт.

29

124554

O-RING

Woodruff, 5/16 x 1 inch, clutch cup retainer

1шт.

30

402563R2

PINION

GEAR drive, sprag clutch

1шт.

31

402566R1

BEARING ASSY

sprag

1шт.

32

402567R91

OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk

SEAL oil, sprag bore

1шт.

33

401720R1

CIRCLIP

RING retaining, backing plate

1шт.

34

402569R1

PLATE

clutch backing

1шт.

35

401716R3

DISC

PLATE clutch driven

6шт.

36

402572R1

PLATE

piston backing

1шт.

37

404104R3

SHAFT

counter rotating

1шт.

38

381486R1

SNAP RING,#187, 1.759", Ext

RING retaining, external, 1.759 inch

1шт.

39

404105R1

PINION

GEAR driven, 42 teeth

1шт.

40

NSS

NOT SOLD SEPARAT

Not used in this application

1шт.

41

381486R1

SNAP RING,#187, 1.759", Ext

RING retaining, external, 1.759 inch

1шт.

42

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 x 5-1/2 inch, class 6

1шт.
