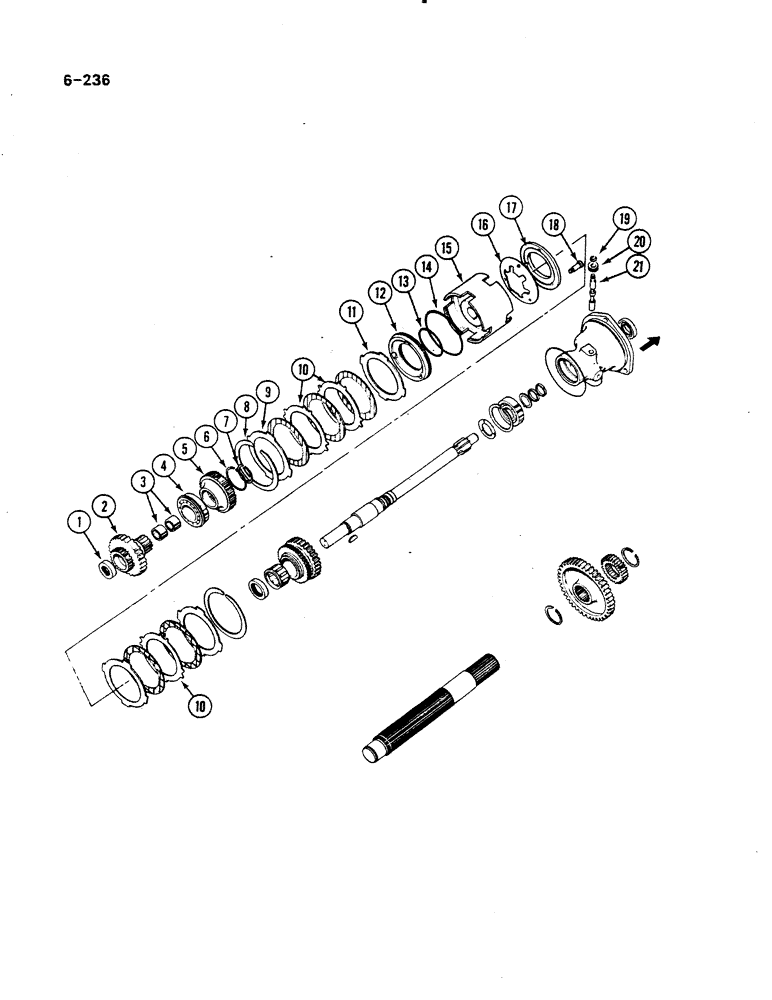

Запчасти Case IH 485 (6-236) - TWO SPEED POWER SHIFT, P.I.N. 18001 AND AFTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
3118322R91
BEARING, NEEDLE
BEARING needle, clutch shaft
1шт.
2
3118321R2
PINION
GEAR, direct drive hub, 28 teeth
1шт.
3
550839R91
BEARING, NEEDLE
BEARING needle
2шт.
3
531436R91
NEEDLE BEARING
BEARING needle, Serial Range: optional-550839R91
2шт.
4
ST243
BEARING, BALL,45 mm ID x 85 mm OD x 19 mm
BEARING ball, direct drive gear
1шт.
4
42347D
BALL BEARING
BEARING ball, Serial Range: optional-ST243
1шт.
4
398323R91
BALL BEARING
BEARING ball, Serial Range: optional-ST243
1шт.
4
70126C91
BALL BEARING
BEARING ball, Serial Range: optional-ST243
1шт.
4
3066862R91
BALL BEARING
BEARING ball, Serial Range: optional-ST243
1шт.
4
3067617R91
BEARING, BALL
BEARING ball, Serial Range: optional-ST243
1шт.
4
3066860R91
BALL BEARING
BEARING ball, Serial Range: optional-ST243
1шт.
5
404199R3
SPROCKET ASSY.
CARRIER, direct drive clutch disc
1шт.
6
336000R1
SNAP RING,#175, 1.640", Ext
RING retaining, external, 1.64 inch
1шт.
7
583976R1
SNAP RING,#125, 1.179", Ext
RING retaining, external, 1.179 inch
1шт.
8
401720R1
CIRCLIP
RING retaining, backing plate
1шт.
9
1502340C1
PLATE
clutch backing
1шт.
10
401717R1
PLATE
clutch separator
4шт.
11
402572R1
PLATE
piston backing
1шт.
12
402570R1
PISTON
direct drive clutch
1шт.
13
402571R1
O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk
piston, inner
1шт.
14
401724R1
SEAL,0.551" ID x 0.07" Width
O-RING piston, outer
1шт.
15
1502339C1
HOUSING
CUP, direct drive clutch
1шт.
16
402574R1
BELLEVILLE WASHER
WASHER Belleville
3шт.
17
402573R1
PLATE
pressure, clutch lock up
1шт.
18
1502341C1
BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm
BOLT, piston return
3шт.
65240C1
SQUARE NUT
square, 1/4 inch NF
3шт.
402576R1
WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk
piston support
3шт.
19
NSS
NOT SOLD SEPARAT
Not used in this application
1шт.
20
NSS
NOT SOLD SEPARAT
Not used in this application
1шт.
21
NSS
NOT SOLD SEPARAT
Not used in this application
1шт.
Выбрано товаров: 30
