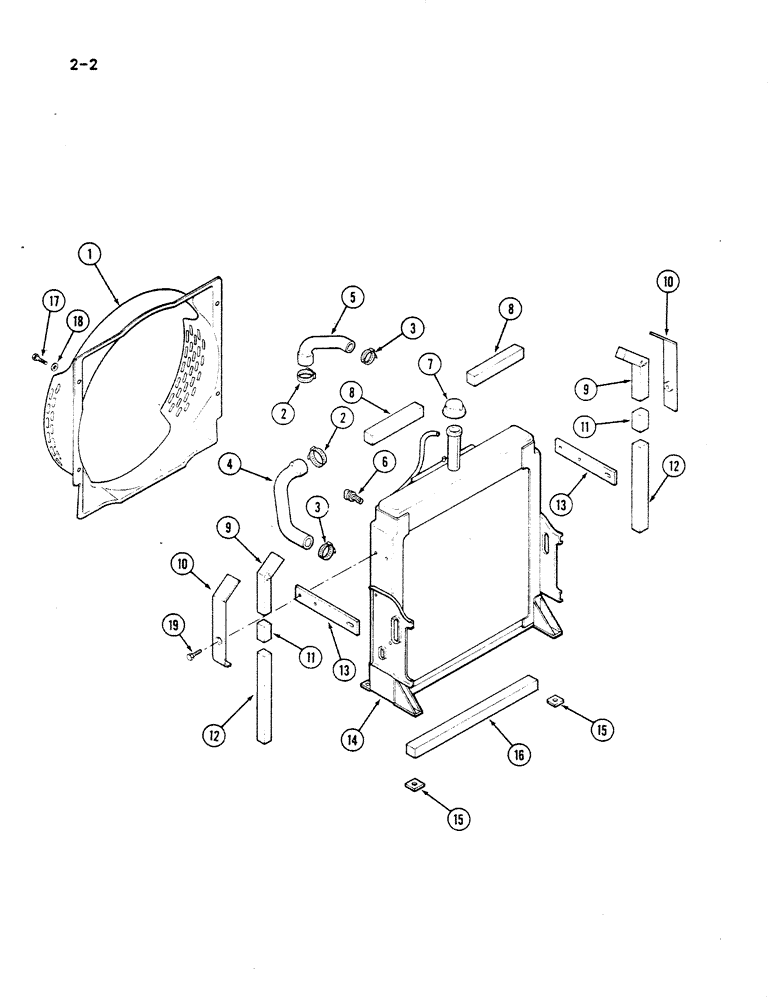

Запчасти Case IH 485 (2-002) - RADIATOR AND CONNECTIONS, PRIOR TO P.I.N. 16472 (02) - ENGINE

1

527475R3

HOUSING

fan

1шт.

2

706082R91

CLAMP

hose

2шт.

2

39205H

CLAMP

hose, No. 80, type C (Optional to 706082 R91)

2шт.

3

39149H

HOSE CLAMP

CLAMP hose, No. 64

2шт.

4

402189R1

LARGE HOSE,1.50" ID, 2.00" ID x 10.39", SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A OR SAE 20R4, CLASS R, GRADE 1A, SAE 20R4 CLASS D1, Outlet 1.50" ID, 2.00" ID x 10.39", SAE 20R2

1шт.

5

1502065C1

RADIATOR HOSE,1.50" ID, 2.00" ID x 8.98"

1.50" ID, 2.00" mm ID X 8.98", Inlet

1шт.

6

3113083R1

PLUG, DRAIN

VALVE drain, 1/4 inch

1шт.

7

1500626C91

PLUG

CAP radiator, complete

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL radiator top, 8 inch (203 mm), (Cut from 73217C1, 4 foot roll) (1.2 M)

1шт.

73217C1

FILLING STRIP

SEAL foam, bulk length, 4 foot roll

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL shield, long 5.6 inch (142 mm), (Cut from 73217C1 4 foot roll) (1.2 M)

2шт.

10

98885C1

GUARD

SHIELD radiator seal

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL shield, short, 2.1 inch (53 mm), (Cut from 73217C1, 4 foot roll) (1.2 M)

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL radiator side, 14 inch (356 mm), (Cut from 73217C1, 4 foot roll) (1.2 M)

2шт.

13

94313C1

STRAP

mounting, radiator

2шт.

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

14

84524C93

RADIATOR

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, grade 5, ZND

4шт.

Side panel support and radiator rear mounting to bolster.

1шт.

Radiator front mounting to bolster.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Side panel support and radiator rear mounting to bolster.

1шт.

Radiator front mounting to bolster.

1шт.

129-419

WING NUT,5/16"-18

NUT wing, 5/16 inch NC

1шт.

Side panel support and radiator rear mounting to bolster.

1шт.

Radiator front mounting to bolster.

1шт.

84525C1

SPACER

2шт.

Side panel support and radiator rear mounting to bolster.

1шт.

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

4шт.

Side panel support and radiator rear mounting to bolster.

1шт.

Radiator front mounting to bolster.

1шт.

99427C1

SPACER

BUSHING

4шт.

15

47240D

PAD

radiator

2шт.

16

537162R1

FILLING STRIP

SEAL lower radiator

1шт.

17

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

18

95-11028

WASHER,1/4"

flat, 0.281 x 0.625 x 0.051 inch

4шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.
