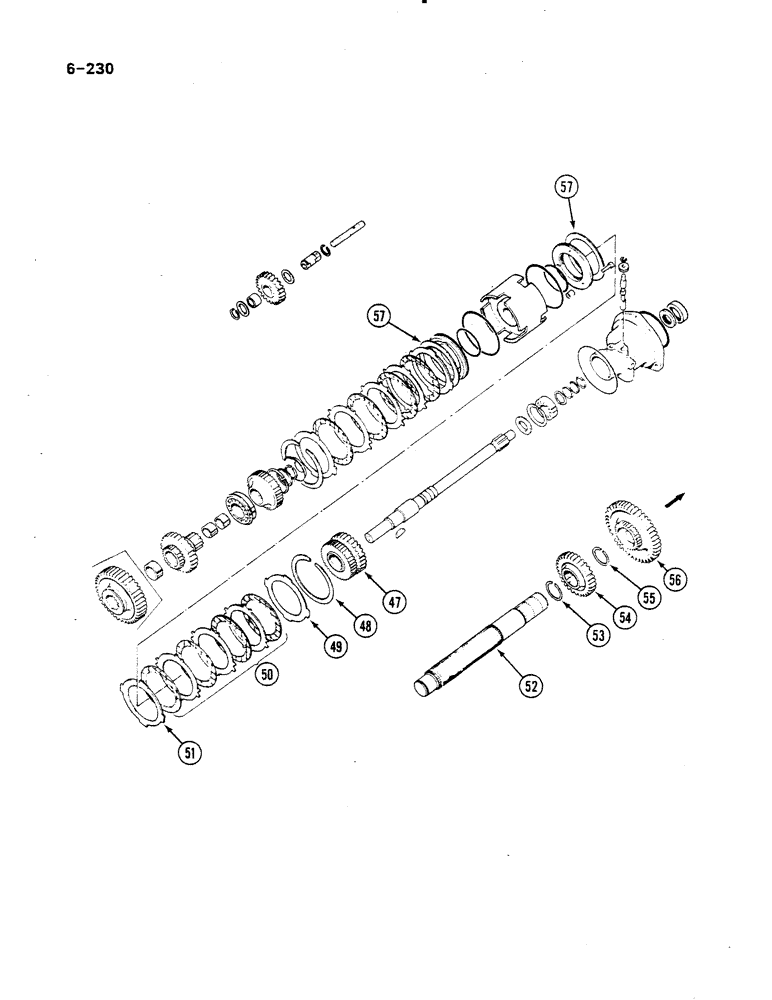

Запчасти Case IH 485 (6-230) - FORWARD AND REVERSE, SYNCHROMESH DRIVE (CONTD) (06) - POWER TRAIN

47

527763R3

PINION

GEAR drive, 28 teeth

1шт.

48

401720R1

CIRCLIP

RING retaining, backing plate

1шт.

49

70016C1

PLATE

clutch backing

1шт.

50

NSS

NOT SOLD SEPARAT

PLATE clutch, order kit 534937R92

1шт.

51

402572R1

PLATE

piston backing

1шт.

52

404104R3

SHAFT

counter rotating

1шт.

53

381486R1

SNAP RING,#187, 1.759", Ext

RING retaining, external, 1.759 inch

2шт.

54

527771R1

PINION

GEAR, forward and reverse, driven, 31 teeth

1шт.

55

381486R1

SNAP RING,#187, 1.759", Ext

RING retaining, external, 1.759 inch

1шт.

56

527770R1

GEAR

driven, IPTO 46 teeth, fwd and rev pump 33 teeth

1шт.

57

70039C1

SHIM KIT

KIT service, piston return shims, includes shims and instructions listed below

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.014 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.024 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.036 inch

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS, fitting - shim installation

1шт.

1277488C2

SEAL KIT

KIT service, seals, includes parts listed below and instructions

1шт.

NSS

NOT SOLD SEPARAT

SEAL oil, clutch shaft

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE installation

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE installation

1шт.

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 inch, class 5

1шт.

NSS

NOT SOLD SEPARAT

SEAL oil, IPTO drive shaft

1шт.

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL oil, release sleeve

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS fitting

1шт.
