(6-228) - FORWARD AND REVERSE, SYNCHROMESH DRIVE (CONTD)

Запчасти Case IH 485 (6-228) - FORWARD AND REVERSE, SYNCHROMESH DRIVE (CONTD) (06) - POWER TRAIN

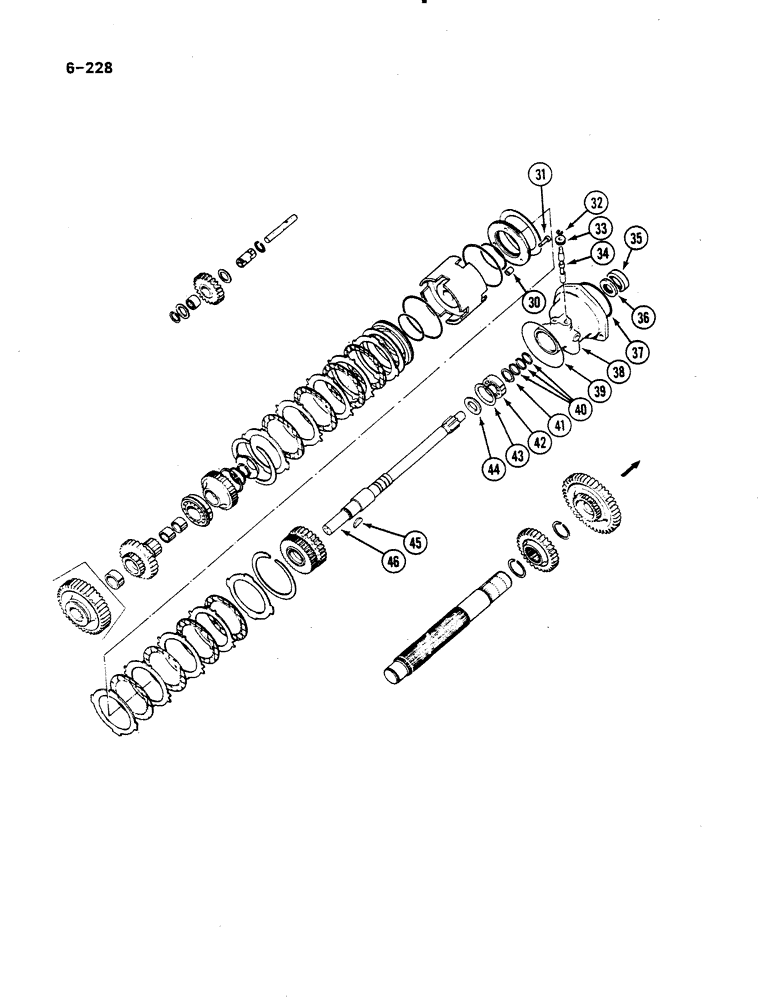

Схема запчастей Case IH 485 - (6-228) - FORWARD AND REVERSE, SYNCHROMESH DRIVE (CONTD) (06) - POWER TRAIN
43
36
34
46
41
33
31
38
40
35
45
44
37
42
30
39
32
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

30

527769R2

SPACER

piston

3шт.

31

527768R1

BOLT (SPREADER),Skt Hd, 1/4" - 28 x 1"

BOLT, forward and reverse piston return

3шт.

114530C1

BOLT

forward and reverse piston return, Serial Range: optional-527768R1

3шт.

65240C1

SQUARE NUT

square, 1/4 inch NF

3шт.

32

896045R1

SNAP RING,#37, Ext

1шт.

33

531539R1

COLLAR

control stem

1шт.

34

536974R1

STEM

forward and reverse control

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL, IPTO shaft, order kit 1277488C2

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL, drive shaft, PTO, order kit 1277488C2

1шт.

37

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 inch, class 5

1шт.

38

527761R4

CAGE

retaining, IPTO clutch cup

1шт.

39

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 x 5-1/2 inch, class 6

1шт.

40

406275R1

RING

piston, clutch shaft, Serial Range: -18001

3шт.

40

85038C1

SEALING RING,27.15mm ID x 30.4mm OD x 2.29mm Thk

piston, clutch shaft, Start Serial: 18001

3шт.

41

3112664R1

SNAP RING

RING retaining

1шт.

42

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING ball

1шт.

43

T17410

SNAP RING,M62 x 1.58mm Thk, Int

RING retaining, inner clutch shaft bearing

1шт.

44

527767R1

THRUST WASHER

WASHER thrust, clutch shaft

1шт.

45

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY Woodruff, 5/16 x 1 inch

1шт.

46

70014C2

PACKAGE, REPAIR

KIT service, forward and reverse shaft and clutch cup, Serial Range: -18001

1шт.

46

92758C91

PACKAGE

KIT service, forward and reverse shaft and clutch cup, Start Serial: 18001

1шт.

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

NSS

NOT SOLD SEPARAT

CUP

1шт.

583976R1

SNAP RING,#125, 1.179", Ext

RING retaining, external, 1.179 inch

1шт.

70020C1

SLINGER

direct drive clutch

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

SCREW set, hex socket, 1/4 NC x 1/4 inch

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex socket, 1/4 NC x 1/4 inch, optional to 222386

2шт.

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY Woodruff, 5/16 x 1 inch

1шт.
