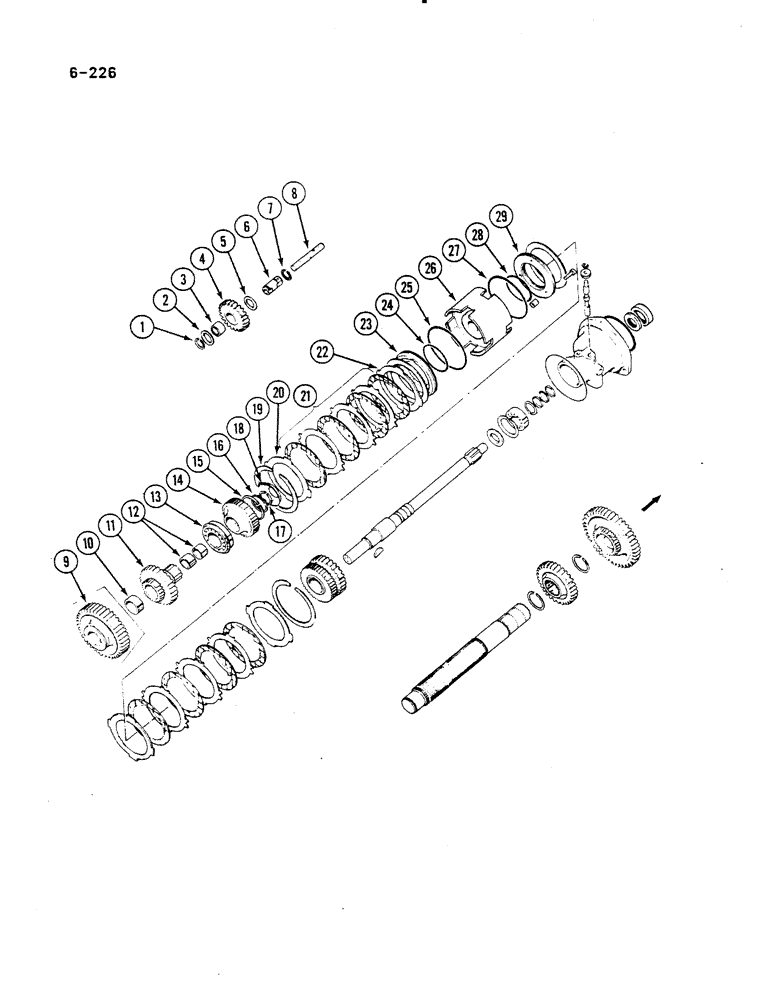

Запчасти Case IH 485 (6-226) - FORWARD AND REVERSE, SYNCHROMESH DRIVE (06) - POWER TRAIN

1

362260R1

RING, SNAP

RING retainer, idler gear

1шт.

2

527772R1

WASHER

forward and reverse, idler gear

1шт.

3

551139R91

BEARING, NEEDLE

BEARING needle

1шт.

4

527776R1

PINION

GEAR, forward and reverse idler, 23 teeth

1шт.

5

527772R1

WASHER

forward and reverse idler gear

1шт.

6

527775R2

SLEEVE

idler gear.

1шт.

18543R1

LOCK PIN,7/32" x 1", Slotted

PIN, 7/32" x 1", Slotted

1шт.

7

362260R1

RING, SNAP

RING retainer, idler gear

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

8

527774R1

SHAFT

forward and reverse idler

1шт.

9

527773R2

GEAR

hi lo sliding, 42 teeth

1шт.

10

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING needle

1шт.

11

404200R3

PINION

GEAR, direct drive hub, 28 teeth

1шт.

12

550839R91

BEARING, NEEDLE

BEARING needle

2шт.

13

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING ball, direct drive gear

1шт.

14

404199R3

SPROCKET ASSY.

CARRIER, direct drive clutch disc

1шт.

15

70244C1

RING, SNAP

RING snap, internal

1шт.

16

336000R1

SNAP RING,#175, 1.640", Ext

RING retaining, external, 1.64 inch

1шт.

17

583976R1

SNAP RING,#125, 1.179", Ext

RING retaining, external, 1.179 inch

1шт.

18

70020C1

SLINGER

direct drive clutch

1шт.

19

401720R1

CIRCLIP

RING retaining, backing plate

1шт.

20

70016C1

PLATE

clutch, backing

1шт.

21

534937R92

PACKAGE, REPAIR

KIT service, forward and reverse clutch plate, includes the two plates and O-rings listed directly below

1шт.

NSS

NOT SOLD SEPARAT

PLATE clutch separator

8шт.

NSS

NOT SOLD SEPARAT

PLATE clutch driven

6шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

piston, inner, clutch

2шт.

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING piston, outer

2шт.

22

402572R1

PLATE

piston backing

1шт.

23

70017C1

PISTON

direct drive clutch

1шт.

24

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

piston, inner, clutch

1шт.

25

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING piston, outer

1шт.

26

NSS

NOT SOLD SEPARAT

CUP, direct drive clutch, order kit 92758C91 for P.I.N. 18001 and after, order kit 70014C2 for prior to P.I.N 18001

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING piston, outer

1шт.

28

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

piston, inner, clutch

1шт.

29

70017C1

PISTON

direct drive clutch

1шт.
