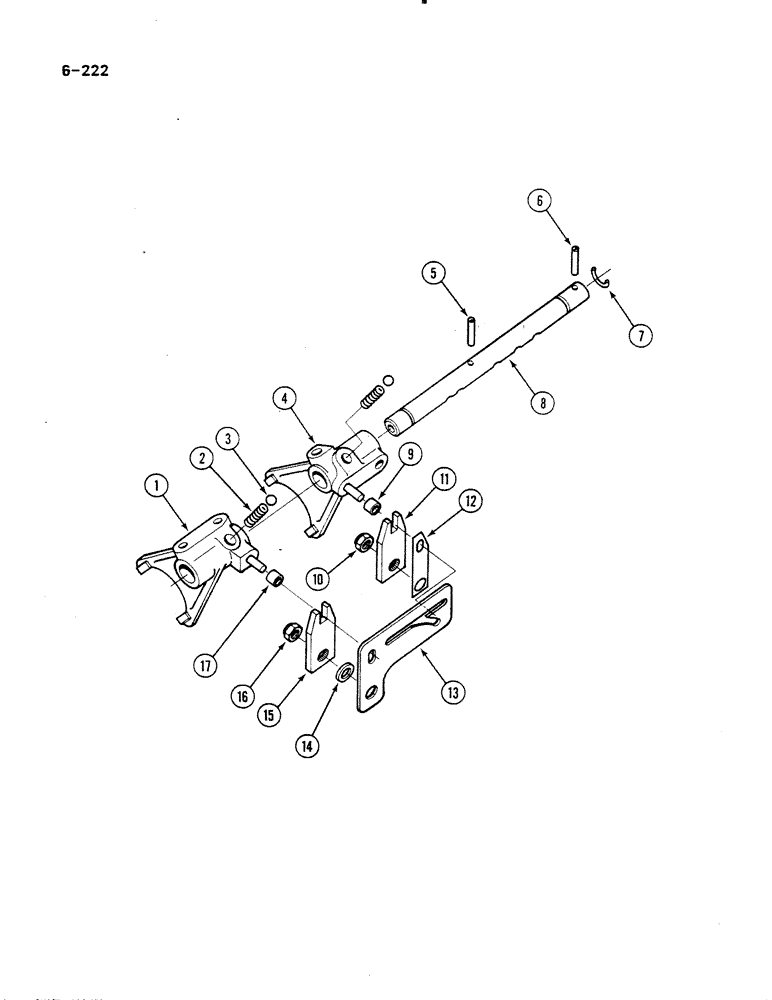

Запчасти Case IH 485 (6-222) - GEAR SHIFT MECHANISM, RANGE TRANSMISSION, WITHOUT FORWARD AND REVERSE (06) - POWER TRAIN

1

1286428C1

FORK

front

1шт.

2

103062C1

SPRING

poppet ball

2шт.

3

17013R1

BALL,13/32" Dia

2шт.

4

1286416C1

FORK

rear

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

148501C1

RING, SNAP

RING retaining

2шт.

8

1286415C1

RAIL

range shift fork

1шт.

9

1286423C1

BUSHING

range shift pin

1шт.

10

19605R1

LOCK NUT,1/2"-13, GB

NUT lock, 1/2 inch NC, grade 5

1шт.

10

131-208

SPECIAL NUT,1/2"-13

NUT lock, 1/2 inch NC, optional to 19605R1

1шт.

11

1286421C1

ARM

range shift, inner

1шт.

12

1286444C2

STRIP

PLATE retainer

1шт.

13

1286419C1

PLATE, LOCKING

PLATE interlock, range

1шт.

14

21018R1

WASHER

flat, 0.781 x 1.5 x 0.027 inch

1шт.

16066R1

WASHER

flat, 0.781 x 1.5 x 0.054 inch

1шт.

15

1286421C1

ARM

range shift, inner

1шт.

16

19605R1

LOCK NUT,1/2"-13, GB

NUT lock, 1/2 inch NC, grade 5

1шт.

16

131-208

SPECIAL NUT,1/2"-13

NUT lock, 1/2 inch NC, optional to 19605R1

1шт.

17

1286423C1

BUSHING

range shift pin

1шт.
