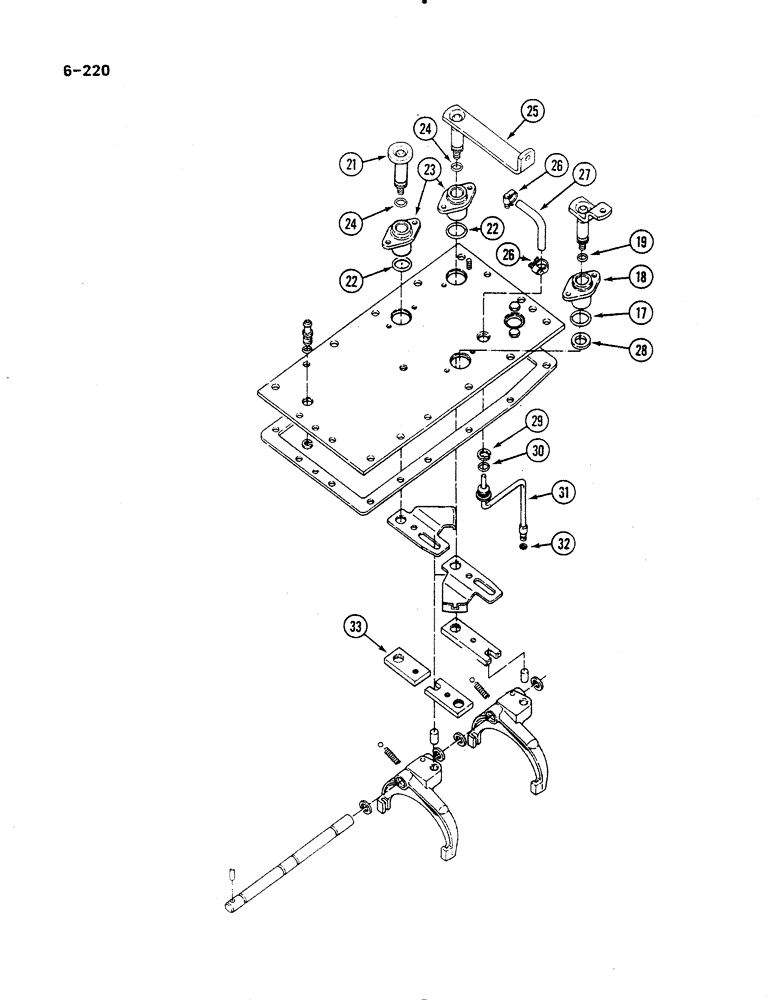

Запчасти Case IH 485 (6-220) - GEAR SHIFT MECHANISM, SPEED TRANSMISSION (CONTD) (06) - POWER TRAIN

17

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1-1/8 x 1-1/4 inch, class 6

1шт.

18

3129165R2

HOUSING

speed shift arm

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

19

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

21

1277030C1

PIVOT ASSY.

PIVOT interlock

1шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT lock, 1/2 inch NC, grade 5

1шт.

22

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1-1/8 x 1-1/4 inch, class 6

2шт.

23

3129165R2

HOUSING

speed shift arm

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

120376

NUT,5/16"-18, G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

2шт.

25

3129166R1

ARM ASSY.

ARM, speed shift actuating, 1st and 2nd

1шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT lock, 1/2 inch NC, grade 5

1шт.

26

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

26

534421R1

HOSE CLAMP

CLAMP hose, worm drive, Serial Range: optional-279025R91

2шт.

26

3112550R1

CLAMP

hose, Serial Range: optional-2799025R91

2шт.

27

1500242C1

HOSE,6.75 mm ID, 12.7 mm OD, 92 mm Length

6.75 mm ID x 92.00 mm, Lubrication Tube

1шт.

28

1500250C1

SPACER

1шт.

29

269181R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

30

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 x 3/4 inch, class 5

1шт.

31

3129164R1

TUBE ASSY.,0.25" OD, 190.5, 83 mm Length

TUBE lubrication, transmission

1шт.

32

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 inch, class 5

1шт.

33

1277031C1

LARGE PLATE

PLATE support, interlock arm

1шт.
