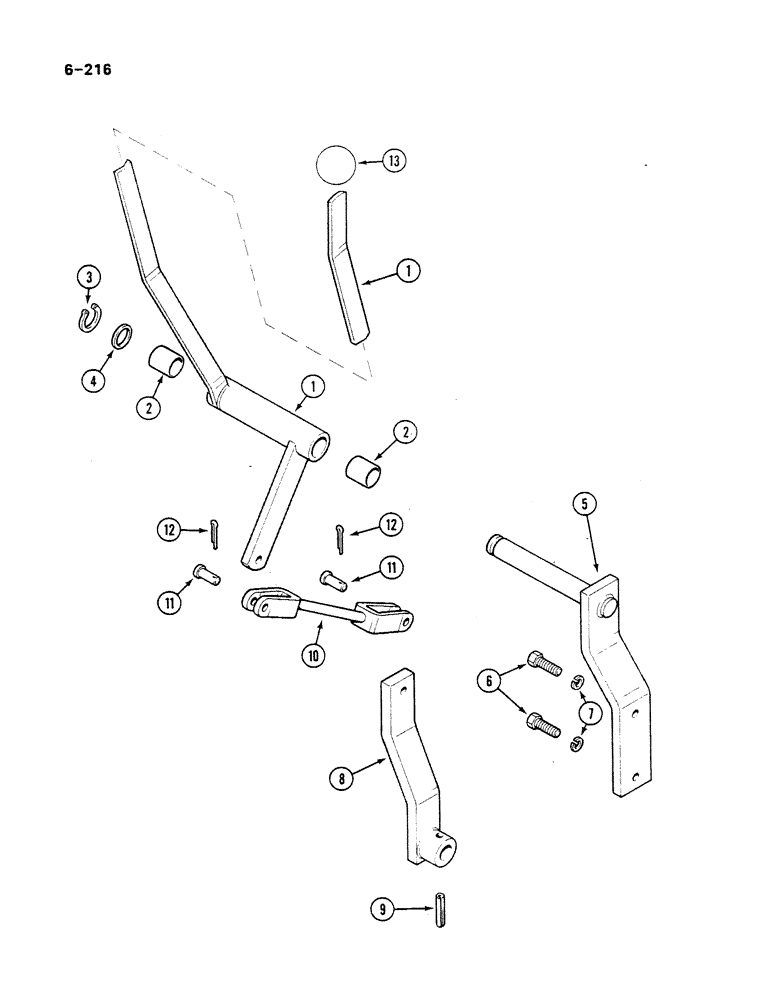

Запчасти Case IH 485 (6-216) - CONTROL LEVER, 4 WHEEL DRIVE, MFD AXLE APL-330, P.I.N. 18001 AND UP (06) - POWER TRAIN

1

82413C1

ARM

control, upper, MFD

1шт.

2

3057214R1

BUSHING

upper control arm

2шт.

3

933128R1

SNAP RING,M25, Ext

RING retainer, 25 x 1.2 mm

1шт.

4

933585R1

WASHER,Ext Tab, M10.5 ID x 26 OD x 1 Thk

round, grip, 10.5 mm

1шт.

5

82419C1

ARM

support, upper control pivot

1шт.

6

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

2шт.

7

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

82417C1

ARM

control, lower

1шт.

9

Q2932

LOCK PIN,M8 x 36, Slotted

PIN, LOCK, M8 x 36, Slotted

1шт.

10

82416C1

ROD

control arm link

1шт.

11

103496

CLEVIS PIN,3/8" x 1.060"

PIN clevis, 3/8 x 1-3/32 inch

2шт.

12

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

13

3134919R2

KNOB

upper control arm

1шт.

1328614C1

DECAL

control, MFD

1шт.

99861C1

DECAL

4WD lubrication, English

1шт.

99862C1

DECAL

MFD lubrication, French

1шт.

99900C1

DECAL

MFD lubrication, Spanish

1шт.

1093124R1

PRODUCT GRAPHIC

DECAL, 4 wheel and 2 wheel shift position

1шт.
