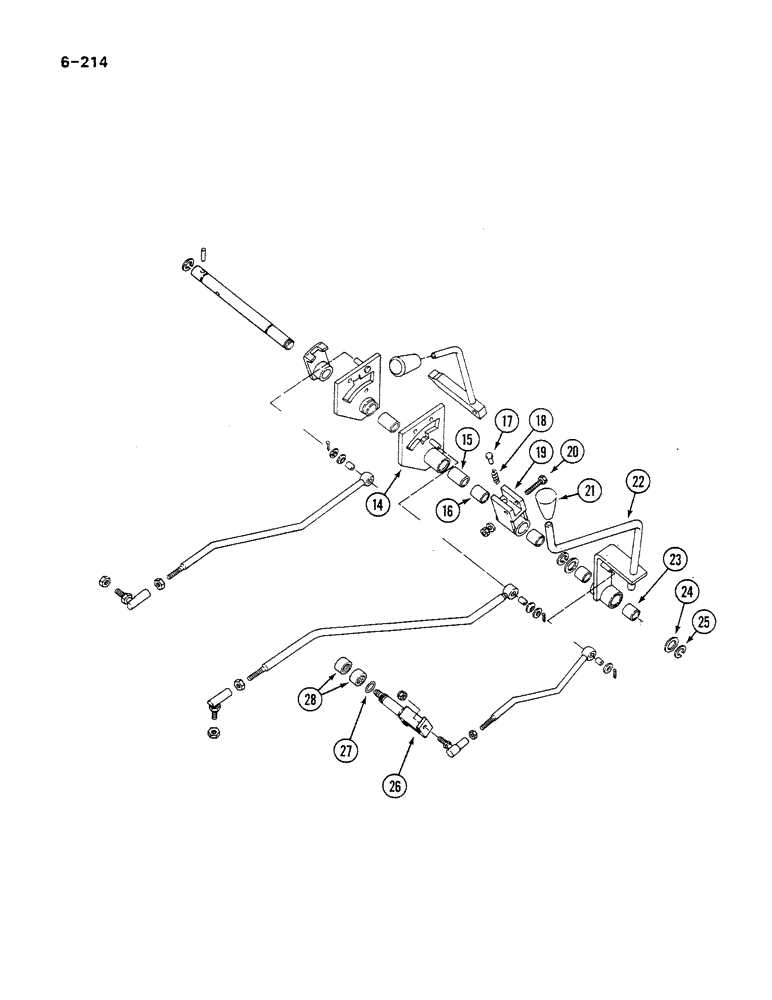

Запчасти Case IH 485 (6-214) - TRANSMISSION CONTROL, EXTERNAL, WITH FORWARD AND REVERSE (CONTD) (06) - POWER TRAIN

14

3129217R91

LEVER ASSY.

LEVER speed shift, 3rd and 4th, Includes: Ref. 15

1шт.

15

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

16

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

housing

2шт.

17

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

1шт.

18

71486C1

SPRING

compression

1шт.

19

3129214R92

HOUSING ASSY.

HOUSING selector arm, Includes: Ref. 16

1шт.

20

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

1шт.

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT hex lock, 3/8 inch NC, grade 8

1шт.

21

3129267R1

BALL KNOB

KNOB range lever

1шт.

22

3129271R94

LEVER ASSY.

LEVER range shift, Includes: Ref. 23

1шт.

23

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

range shift lever

1шт.

24

615192R1

WASHER

flat, 0.906 x 1.25 x 0.027 inch

2шт.

25

454331R1

SNAP RING,#87, Ext

1шт.

26

1289948C1

ARM

range shift, outer rear

1шт.

21018R1

WASHER

flat, 0.781 x 1.5 x 0.027 inch

1шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT lock, 1/2 inch NC, grade 5

1шт.

27

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

1шт.

28

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

BEARING needle

2шт.

318300R1

PLUG,Cup, 1"

cup, 1 inch

1шт.
