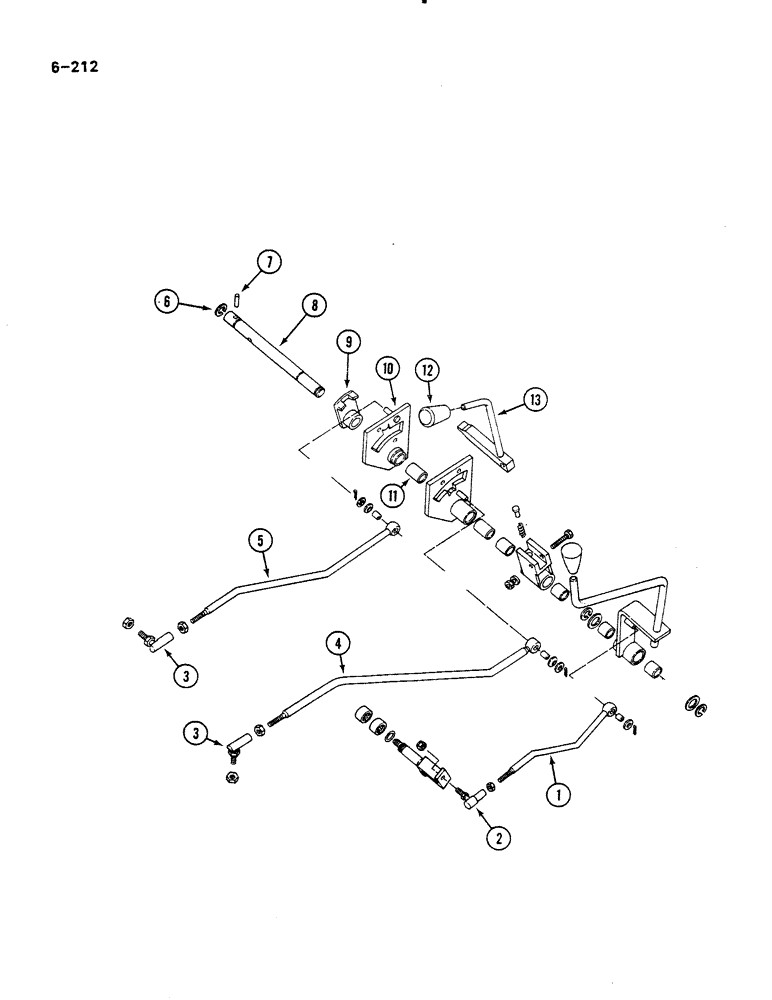

Запчасти Case IH 485 (6-212) - TRANSMISSION CONTROL, EXTERNAL, WITH FORWARD AND REVERSE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
3129232R91
ROD ASSY.
ROD range shift, rear, includes bushing
1шт.
1
1536646C1
ROD ASSY.
ROD range shift, rear, new
1шт.
3129156R1
BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L
rod eye end
1шт.
83723R1
WAVE WASHER
spring
1шт.
Q3641
WASHER
plain, 0.406 x 0.625 x 0.054 inch
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
865197R1
CLEVIS PIN,3/8" x 1.218"
PIN clevis, 3/8 x 1-7/32 inch
1шт.
2
653867C1
BALL JOINT
JOINT ball, 3/8 inch
1шт.
124925
JAM NUT,Jam, 3/8"-24, G5
1шт.
3048059R91
LOCK NUT
NUT lock, 3/8 inch NF
1шт.
3
1500497C1
BALL JOINT
JOINT ball
2шт.
1500536C1
JAM NUT
hex, jam 7/16 inch NF
2шт.
231-4617
LOCK NUT,7/16"-20, GB
NUT hex lock, 7/16 inch NF, grade 5, optional to 1500536C1
2шт.
702455R1
LOCK NUT
hex lock, 7/16 inch NF, Serial Range: optional-1500536C1
2шт.
4
3129226R91
ROD ASSY.
ROD speed shift, 3rd and 4th, includes bushing
1шт.
3129156R1
BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L
rod eye end
1шт.
83723R1
WAVE WASHER
spring
1шт.
Q3641
WASHER
plain, 0.406 x 0.625 x 0.054 inch
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
5
3129222R91
ROD ASSY.
ROD speed shift, 1st and 2nd, includes bushing
1шт.
3129156R1
BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L
rod eye end
1шт.
83723R1
WAVE WASHER
spring
1шт.
Q3641
WASHER
plain, 0.406 x 0.625 x 0.054 inch
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
6
454331R1
SNAP RING,#87, Ext
1шт.
7
617940R1
PIN,5/16" x 1 3/4", Coiled
1шт.
8
3129270R1
SHAFT
idle, range shift lever
1шт.
9
3129218R2
PLATE
GATE shift
1шт.
617940R1
PIN,5/16" x 1 3/4", Coiled
1шт.
10
3129211R91
LEVER ASSY.
LEVER speed shift, 1st and 2nd, Includes: Ref. 11
1шт.
11
3129207R1
BUSHING,22.25mm ID x 25.48mm OD x 30mm L
lever
1шт.
12
3129267R1
BALL KNOB
KNOB range lever
1шт.
13
3129265R2
LEVER
speed shift
1шт.
Выбрано товаров: 33
