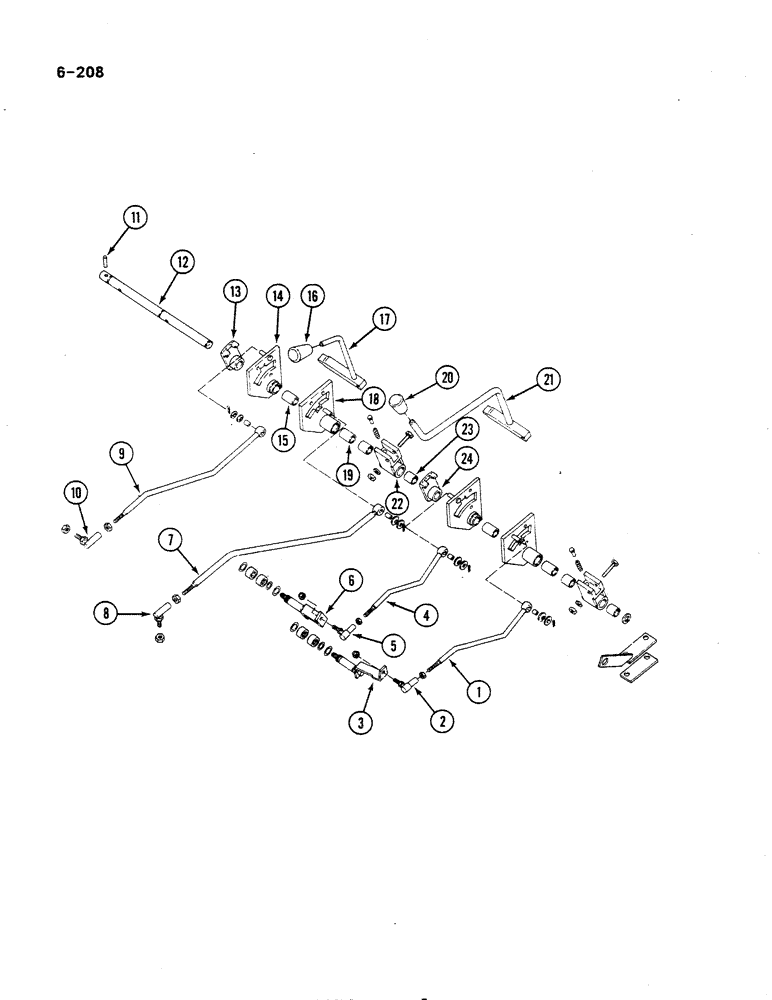

Запчасти Case IH 485 (6-208) - TRANSMISSION CONTROL, EXTERNAL, WITHOUT FORWARD AND REVERSE (06) - POWER TRAIN

1

3129228R91

ROD ASSY.

ROD range shift, front, includes bushing

1шт.

If rod assembly Ref. 1, 3129228R91, is substituted with rod assembly 1536648C1, order 7/16" ball joint 1500497C1 and hex jam nut 1500536C1.

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod eye end

1шт.

2

653867C1

BALL JOINT

JOINT ball, 3/8 inch

1шт.

If rod assembly Ref. 1, 3129228R91, is substituted with rod assembly 1536648C1, order 7/16" ball joint 1500497C1 and hex jam nut 1500536C1.

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

If rod assembly Ref. 1, 3129228R91, is substituted with rod assembly 1536648C1, order 7/16" ball joint 1500497C1 and hex jam nut 1500536C1.

1шт.

3048059R91

LOCK NUT

NUT lock, 3/8 inch NF

1шт.

3

1289946C2

ARM

range shift, outer front

1шт.

4

3129232R91

ROD ASSY.

ROD range shift, rear, includes bushing

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod eye end

1шт.

5

653867C1

BALL JOINT

JOINT ball, 3/8 inch

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

3048059R91

LOCK NUT

NUT lock, 3/8 inch NF

1шт.

6

1289948C1

ARM

range shift, outer rear

1шт.

7

3129226R91

ROD ASSY.

ROD speed shift, 3rd and 4th

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod eye end

1шт.

8

1500497C1

BALL JOINT

JOINT ball

1шт.

1500536C1

JAM NUT

hex, jam, 7/16 inch NF

1шт.

231-4617

LOCK NUT,7/16"-20, GB

NUT hex lock, 7/16 inch NF, grade 5

1шт.

Use P/N 9413215

1шт.

9

3129222R91

ROD ASSY.

ROD speed shift, 1st and 2nd, includes bushing

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod eye end

1шт.

10

1500497C1

BALL JOINT

JOINT ball

1шт.

1500536C1

JAM NUT

hex, jam, 7/16 inch NF

1шт.

231-4617

LOCK NUT,7/16"-20, GB

NUT hex lock, 7/16 inch NF, grade 5

1шт.

Use P/N 9413215

1шт.

11

617940R1

PIN,5/16" x 1 3/4", Coiled

3шт.

12

3129155R2

SHAFT

idle, range shift lever

1шт.

13

3129218R2

PLATE

GATE shift

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

14

3129211R91

LEVER ASSY.

LEVER speed shift, 1st and 2nd, Includes: Ref. 15

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

15

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

16

1265215C1

BALL KNOB

KNOB lever, speed shift

1шт.

17

3129265R2

LEVER

speed shift

1шт.

18

3129217R91

LEVER ASSY.

LEVER speed shift, 3rd and 4th, Includes: Ref. 19

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

19

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

20

1332762C1

BALL KNOB

KNOB range lever

1шт.

21

3129268R2

LEVER ASSY.

LEVER range shift

1шт.

21

1333108C1

LEVER

range shift, Orchard version

1шт.

22

3129214R92

HOUSING ASSY.

HOUSING selector arm, Includes: Ref. 23

1шт.

23

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

24

98573C1

LEVER

GATE shift

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.
