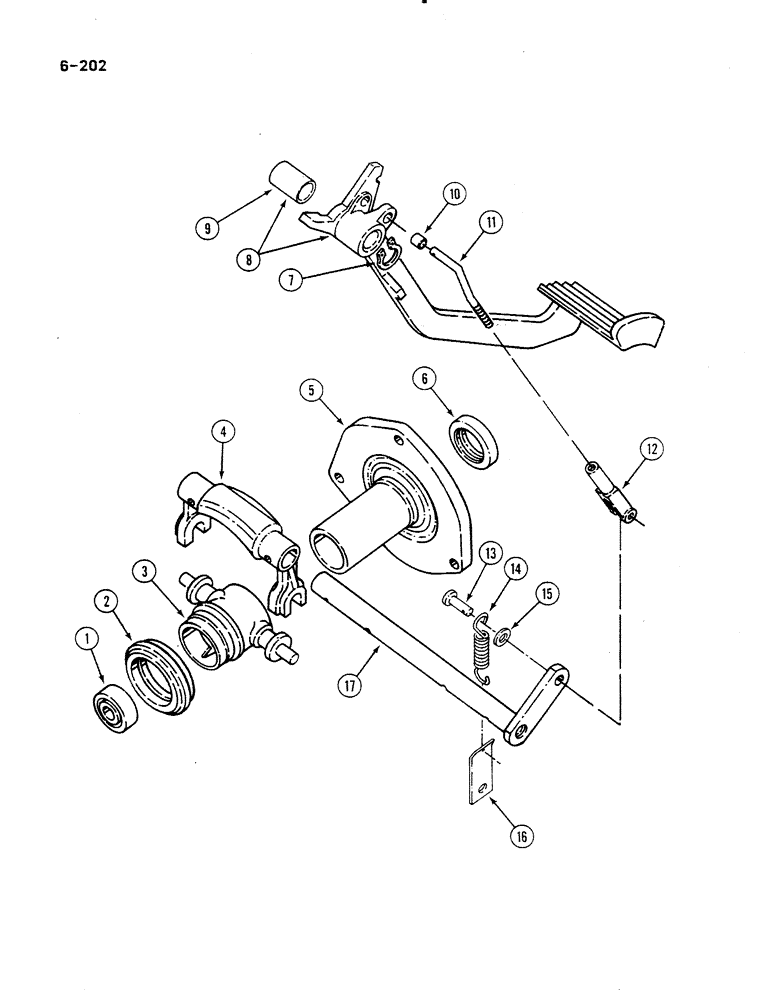

Запчасти Case IH 485 (6-202) - CLUTCH CONTROLS (06) - POWER TRAIN

1

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

1шт.

1

69844C91

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING ball, optional to 537290R91

1шт.

1

538961R91

BEARING ASSY,19.995 mm ID x 46.995 mm OD x 13.94 mm

BEARING ball, optional to 537290R91

1шт.

1

70127C91

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING ball, optional to 537290R91

1шт.

1

70295C91

BALL BEARING

BEARING ball, Serial Range: ptional-537290R91

1шт.

2

85104C91

BEARING, BALL

BEARING ball, clutch release

1шт.

Ref. 2 on this Figure and Ref. 5 on previous Figure, there is a thrust washer that goes between these parts of 1970876C3

1шт.

3

105445C1

BUSHING

SLEEVE clutch release, 11 inch clutch

1шт.

3

85112C1

SLEEVE

clutch release, 12 inch heavy duty clutch

1шт.

4

398342R1

FORK

clutch release

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

5

71229C1

SLIPPER

CARRIER clutch release sleeve

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT hex, 3/8 NC x 1-3/8 inch, grade 5

3шт.

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

3шт.

6

108982C1

OIL SEAL

SEAL oil

1шт.

6

108735C1

OIL SEAL

oil, Serial Range: optional-108982C1

1шт.

6

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL oil, release sleeve, Serial Range: optional-108982C1

1шт.

7

454331R1

SNAP RING,#87, Ext

1шт.

8

1500212C92

PEDAL ASSY.

PEDAL clutch, with bushing, Includes Ref. 9 and 10

1шт.

23183R1

WASHER

plain, 0.906 x 1.375 x 0.054 inch

1шт.

9

530816R1

BUSHING,22.25mm ID x 25.48mm OD x 38.1mm L

1шт.

10

1500445C1

BUSHING,9.6mm ID x 15.03mm OD x 9.65mm L

clutch operating rod

1шт.

11

71086C1

ROD ASSY.

ROD clutch operating

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

12

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS light adjustable, 3/8 NF x 2-1/2 inch

1шт.

12

1500764C1

CLEVIS

adjustable, Serial Range: optional-104038

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

13

74158H

CLEVIS PIN,3/8" x 1.344"

PIN clevis, 3/8 x 1-11/32 inch

1шт.

3114469R1

SPLIT PIN/SAFETY PIN

PIN quick release

1шт.

14

85141C1

SPRING

return, clutch pedal

1шт.

15

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

1шт.

16

1500594C1

PLATE

anchor, spring

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

17

1288115C1

SHAFT ASSY.

SHAFT clutch release

1шт.
