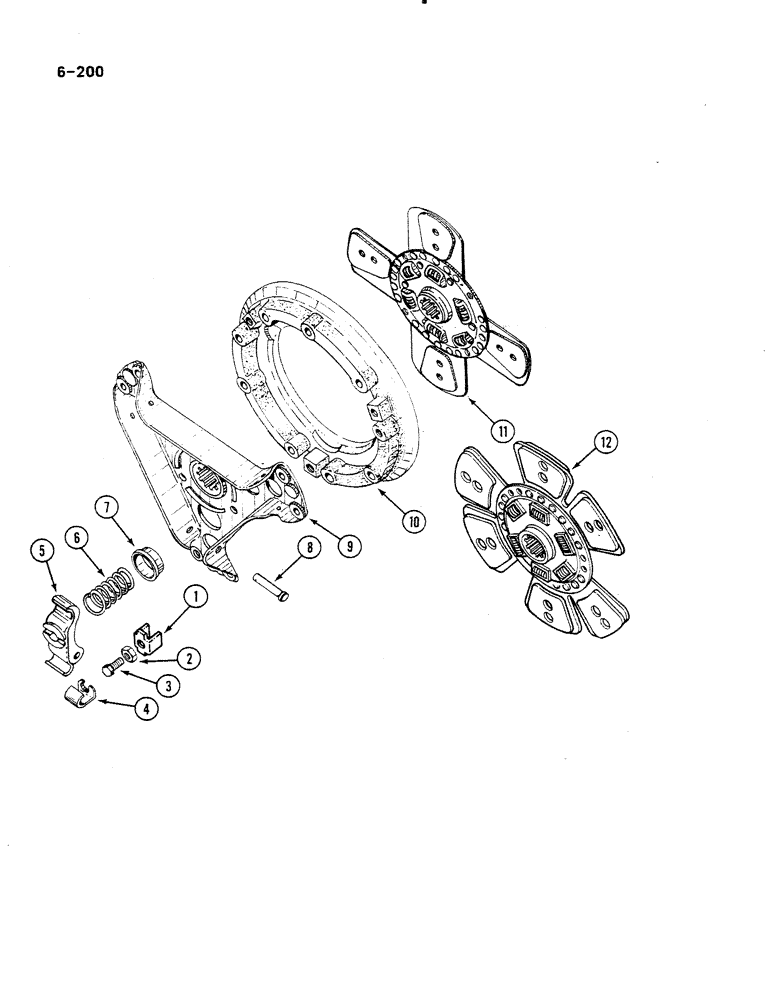

Запчасти Case IH 485 (6-200) - CLUTCH, 11 INCH LAYCOCK (06) - POWER TRAIN

92602C91

CLUTCH ASSEMBLY

COVER, clutch pressure plate

1шт.

92602C92R

REMAN-CLUTCH PLATE,Pressure Plate Only

Remanufactured, Clutch Plate, 11 in, 10 Tooth Hub

1шт.

92602C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

1

NSS

NOT SOLD SEPARAT

CLIP wear, order kit 92607C1

3шт.

2

NSS

NOT SOLD SEPARAT

LOCKNUT, order kit 92607C1

3шт.

3

NSS

NOT SOLD SEPARAT

SCREW, order kit 92607C1

3шт.

4

NSS

NOT SOLD SEPARAT

CLIP return, order kit 92607C1

3шт.

5

NSS

NOT SOLD SEPARAT

LEVER, order kit 69912C1

3шт.

6

NSS

NOT SOLD SEPARAT

SPRING pressure, order kit 2779018R91

3шт.

7

NSS

NOT SOLD SEPARAT

CUP spring, order kit 2779018R91

3шт.

8

NSS

NOT SOLD SEPARAT

PIN pivot, order kit 69912C1

3шт.

9

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY, order 92602C1

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE pressure, order kit 92605C1

1шт.

11

NSS

NOT SOLD SEPARAT

Not used in this application

1шт.

12

3121507R94

CLUTCH DISC

CLUTCH DISK PLATE clutch driven disc

1шт.

12

293248A1R

REMAN-CLUTCH DISC

485 w/Laycock Clutch, Reman For New P/N 3121507R94

1шт.

12

293248A1C

CORE-CLUTCH DISC

Return Part Number

1шт.

12

3121507R95

CLUTCH DISC

CLUTCH DISK PLATE ASSY, Luk purchased Laycock and made design changes

1шт.

12

293248A1R

REMAN-CLUTCH DISC

485 w/Laycock Clutch, Reman For New P/N 3121507R95

1шт.

12

293248A1C

CORE-CLUTCH DISC

Return Part Number

1шт.

92605C1

DISC

KIT, pressure plate

1шт.

92607C1

PACKAGE

KIT, adjusting screw and clip

1шт.

69912C1

KIT

KIT, lever and pivot pin..

1шт.

2779018R91

PACKAGE

KIT, spring and cup

1шт.

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

PLATE pressure, 12"

1шт.

85026C2

CLUTCH DISC

CLUTCH DISK PLATE driven, 12"

1шт.
