(5-196) - FRONT WHEELS, 4 WHEEL DRIVE TRACTOR, MFD TRACTORS, P.I.N. 18001 AND AFTER

Запчасти Case IH 485 (5-196) - FRONT WHEELS, 4 WHEEL DRIVE TRACTOR, MFD TRACTORS, P.I.N. 18001 AND AFTER (05) - STEERING

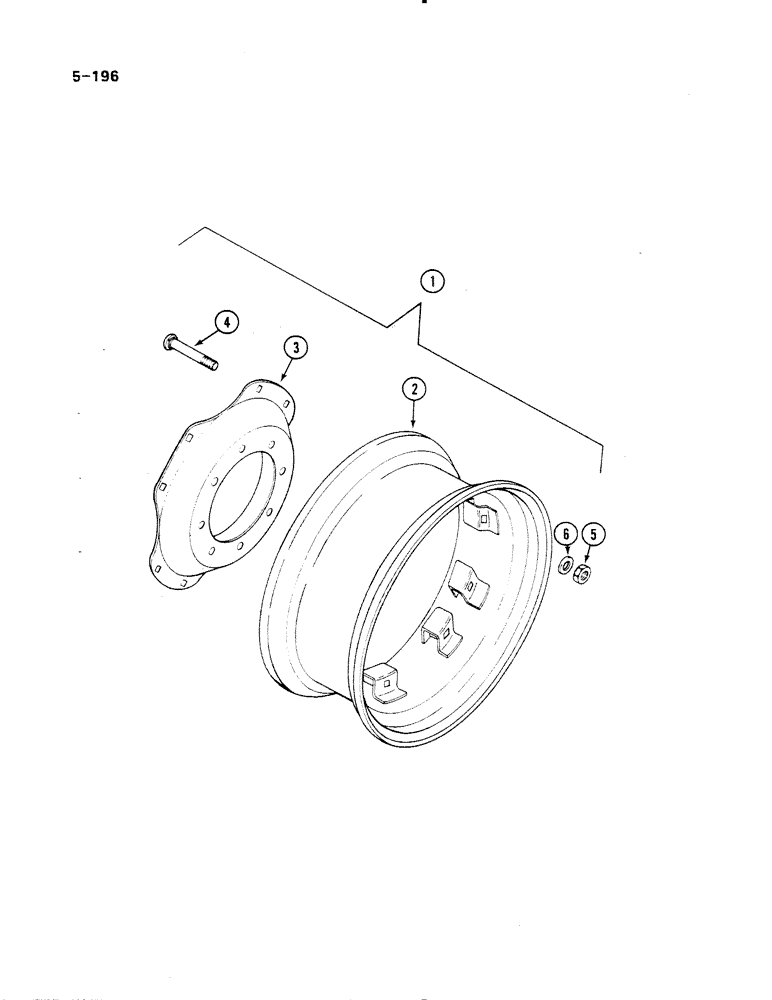

Схема запчастей Case IH 485 - (5-196) - FRONT WHEELS, 4 WHEEL DRIVE TRACTOR, MFD TRACTORS, P.I.N. 18001 AND AFTER (05) - STEERING
5
3
1
4
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

WHEEL ASSEMBLY, W7-24, includes Ref. 2 - 6

2шт.

2

99980C1

RIM

wheel, W7-24

1шт.

3

99976C1

DISC, WHEEL

DISC, 24 inch wheel

1шт.

4

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm x 74 mm, class 8.8

1шт.

5

1335134C1

NUT

hex, 16 mm

8шт.

6

1335135C1

WASHER

flat, 17 x 33 x 5 mm

6шт.
