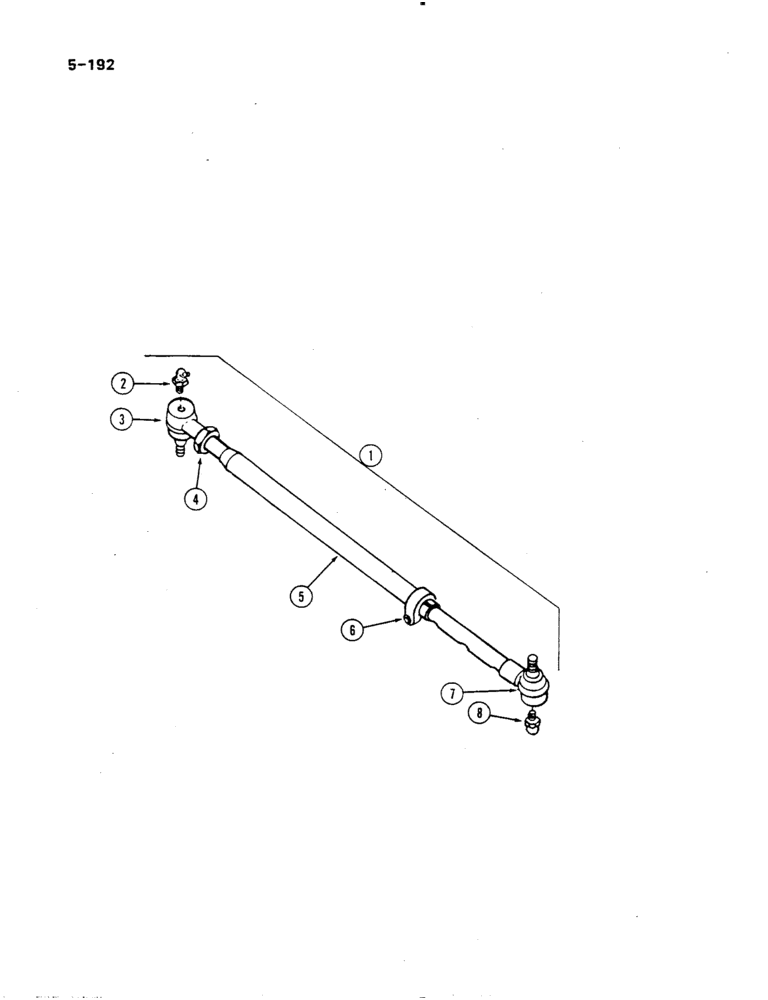

Запчасти Case IH 485 (5-192) - TIE ROD, SWEPT BACK AXLE (05) - STEERING

1

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY, adjustable tie, Includes Ref. 2 - 8

2шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

3

527658R91

BALL JOINT

END socket, right

1шт.

3

527658R91GV

TIE-ROD

Value, Tie Rod End

1шт.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

358900R1

SEAL

COVER dust

1шт.

4

390686R1

JAM NUT

hex jam, 11/16 inch NF

1шт.

5

527659R2

TUBE

tie rod

1шт.

6

43747D

CLAMP

tube, tie rod

1шт.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

BOLT hex, 7/16 NF x 1-3/4 inch

1шт.

9421096

LOCK WASHER,7/16"

1шт.

425-117

NUT,7/16"-20, G5

hex jam, 7/16 inch NF, grade 5

1шт.

7

527660R91

END

left

1шт.

7

65082C91

END

left, Serial Range: optional-527660R91

1шт.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

358900R1

SEAL

COVER dust

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , drive type 1/4"-28 NPT x .54" lg

1шт.
