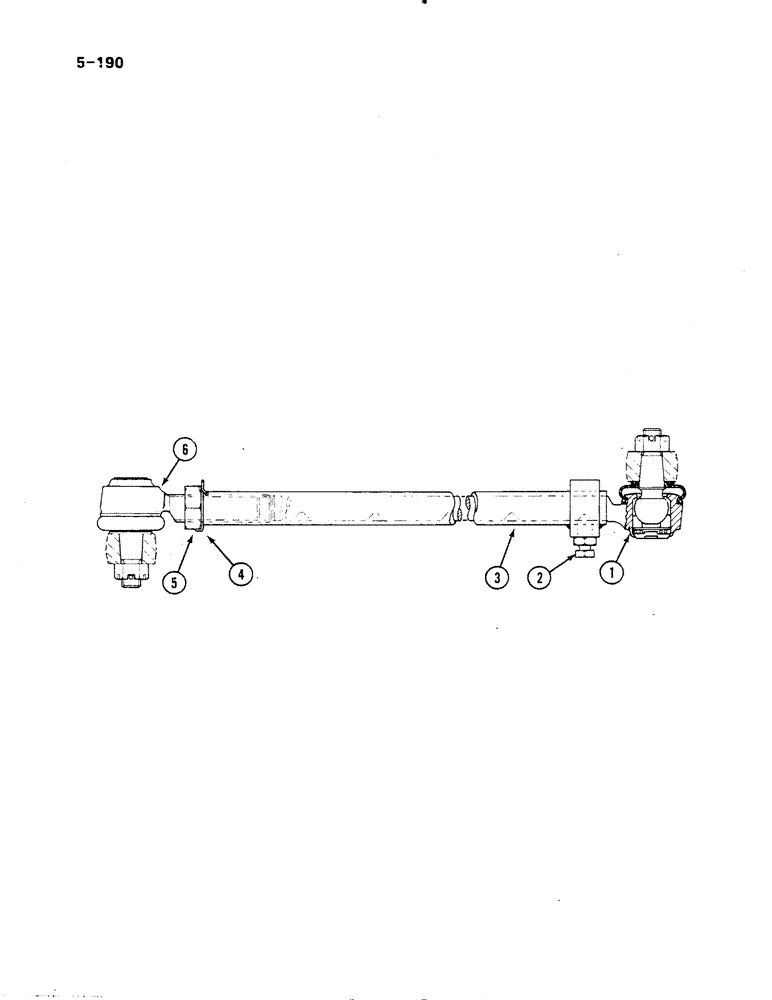

Запчасти Case IH 485 (5-190) - TIE ROD (05) - STEERING

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY, adjustable tie, Includes Ref. 1 - 6

2шт.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

1

3116406R2

END ASSY.

SOCKET ASSEMBLY, outer, adjustable straight front axle

1шт.

1332805C1

BALL JOINT

SOCKET outer, optional to 3116406 R2, swept back adjustable front axle

1шт.

3129380R1

JOINT

ball, dimple end, swept back adjustable front axle

1шт.

2

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW set

1шт.

3116410R1

LOCK NUT

NUT lock

1шт.

3

3116408R1

TUBE,20.75 mm ID, 28 mm OD, 412 mm Length

center, adjustable straight front axle

1шт.

3

3129379R1

TUBE,20.7 mm ID, 28 mm OD, 419 mm Length

center, swept back adjustable front axle

1шт.

4

3116411R1

LOCK WASHER

tab

1шт.

5

3116412R1

LOCK NUT

NUT lock

1шт.

6

3116407R2

BALL JOINT

SOCKET ASSEMBLY, inner

1шт.
