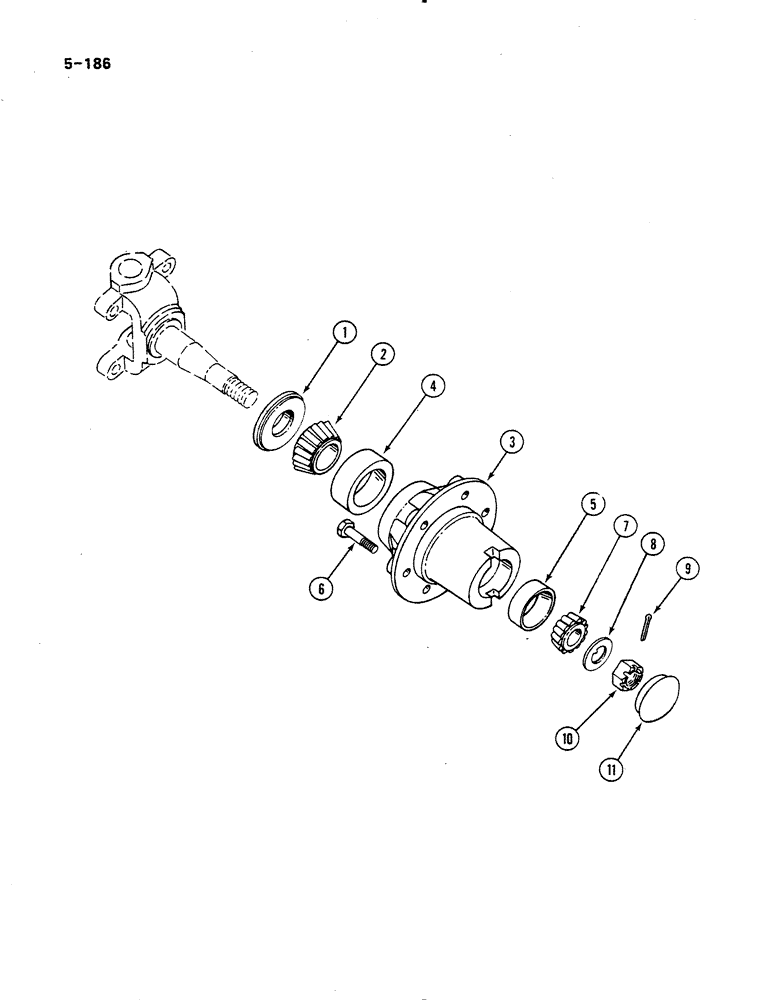

Запчасти Case IH 485 (5-186) - WHEEL HUBS AND CAPS, HEAVY DUTY FRONT AXLE (05) - STEERING

1

378402R11

RETAINER

felt, hub, includes felt retainer

2шт.

97739HX

RING

RETAINER felt

1шт.

2

ST2005A

ROLLER BEARING,44.45mm ID x 30.94mm W

BEARING cone, inner

2шт.

3

378401R21

HUB

front wheel, Includes: Ref. 4 and 5

2шт.

4

ST954

BEARING, CUP,1.7505" ID x 3.4385" OD x 1.2015"

BEARING cup, inner

1шт.

5

20646DA

TAPERED BEARING,1.125" ID x 2.484" OD x 0.937"

BEARING cup, outer

1шт.

6

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT wheel mounting

12шт.

7

ST2034

TAPERED BEARING,1.125" ID x 2.484" OD x 0.9375"

BEARING cone, outer

2шт.

8

97788HA

WASHER,1.033" ID x 2.125" OD x 2.03"

adjusting nut

2шт.

9

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

10

25-1316

NUT,1"-14, G5

NUT, SLOTTED, , Bearing Adj. 1"-14, G5

2шт.

11

378814R1

CAP

hub, front wheel

2шт.

65990C91

PACKAGE

KIT service, front wheel bearings, Includes: Ref. 1, 2, 4, 5, 7 and 8

1шт.
