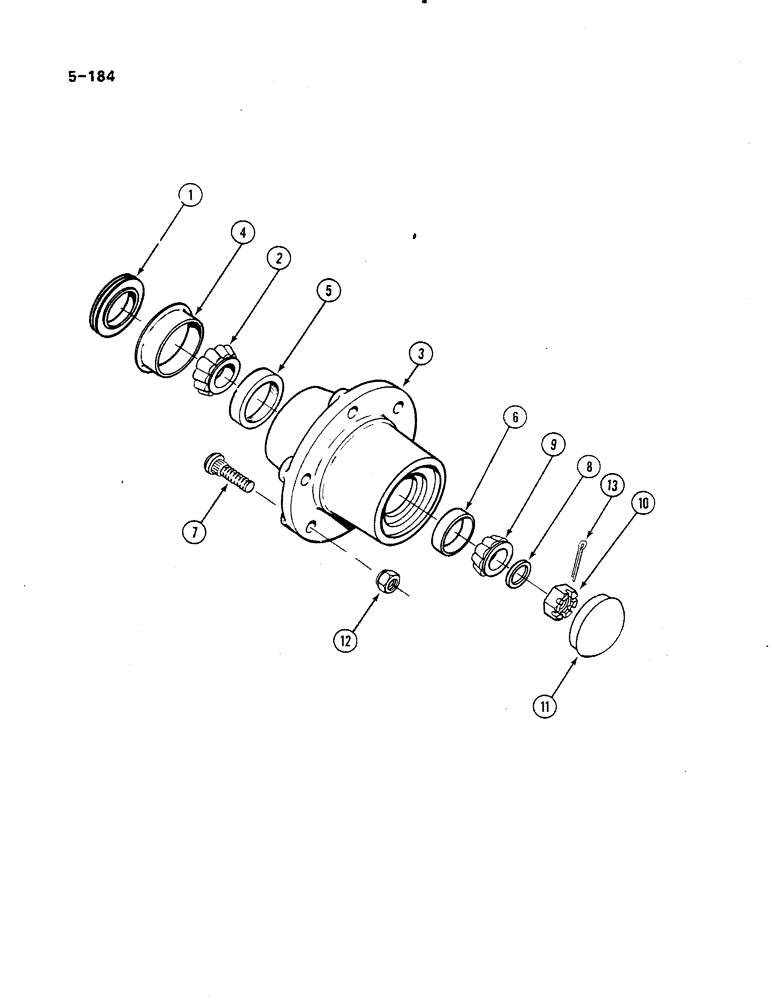

Запчасти Case IH 485 (5-184) - WHEEL HUBS AND CAPS, ADJUSTABLE FRONT AXLE, STRAIGHT AND SWEPT BACK (05) - STEERING

1

405835R91

SEAL

dust, front wheel

2шт.

1

530104R91

SEAL

SEAL dust, Serial Range: optional-405835R91

2шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

inner

2шт.

371897R91

BEARING ASSY,1.315" ID x 2.5625" OD x 0.72"

optional to 618023R91

2шт.

3

406294R21

HUB ASSY.

HUB front wheel

2шт.

4

406295R2

RING

Wear

1шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

1шт.

5

371898R1

BEARING, CUP

Inner, Serial Range: Optional-618024R1

2шт.

6

371883R1

BEARING CUP

Outer

2шт.

6

371908R1

BEARING CUP

Outer, Serial Range: Optional-371883R1

2шт.

7

528803R1

BOLT,1/2" - 20 x 1.75"

- Wheel mounting

12шт.

8

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

hardened

2шт.

9

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

2шт.

9

371907R91

ROLLER BEARING,0.8437" ID x 1.9687" OD x 0.72"

cone, outer, optional to 371882R91

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

NUT hex, slotted, 3/4 inch NF, grade 5

2шт.

11

612884R1

HUB CAP

CAP hub, front wheel

2шт.

12

483879R2

SPECIAL NUT

retaining, wheel

12шт.

13

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

B93362

BEARING

KIT, Includes P/N 369857R1, 371882R91, 371883R1, 406295R2, 432-1024, 48539DA, 618023R91, 618024R1

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

1шт.

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

1шт.

371883R1

BEARING CUP

1шт.

406295R2

RING

1шт.

432-1024

COTTER PIN,5/32" x 1 1/2"

subbed from 108643 5/32" x 1 1/2"

1шт.

48539DA

PACKING RING

SEAL

1шт.

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE

1шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.
