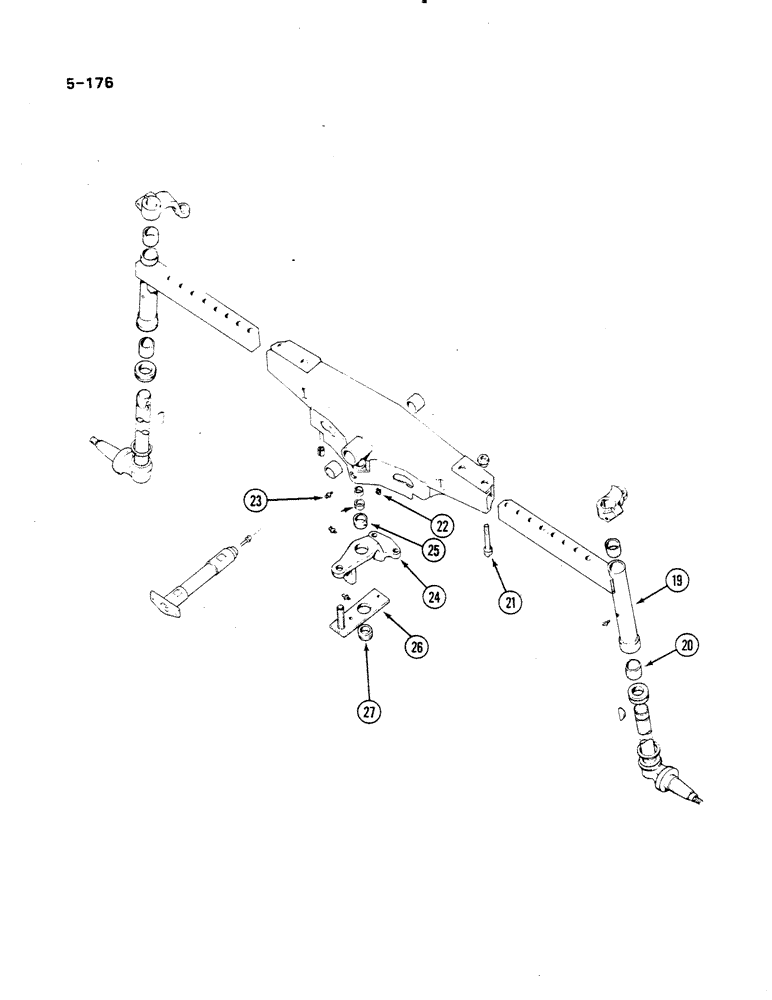

Запчасти Case IH 485 (5-176) - ADJUSTABLE FRONT AXLE, STRAIGHT, 52 TO 80 INCH TREAD (CONTD) (05) - STEERING

19

67532C91

EXTENSION ASSY.

EXTENSION front axle, left, low spindle, drawbar tractor, Includes: Ref. 20

1шт.

19

3116475R91

EXTENSION ASSY.

EXTENSION front axle, left, low spindle, low profile utility tractors, Includes: Ref. 20

1шт.

20

376099R1

BUSHING

extension, front axle

2шт.

21

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

22

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING grease, drive type, 1/4 inch

1шт.

23

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING grease, 45 degree drive type, 1/4 inch

1шт.

24

67499C91

ARM ASSY.

ARM center, power steering, Includes: Ref. 25

1шт.

25

379748R1

BUSHING

2шт.

26

405580R11

BAR ASSY.

BAR power steering cylinder, Includes: Ref. 27

1шт.

67976C1

PLATE, LOCKING

STRIP lock, steering center arm bolt

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

27

379748R1

BUSHING

1шт.
