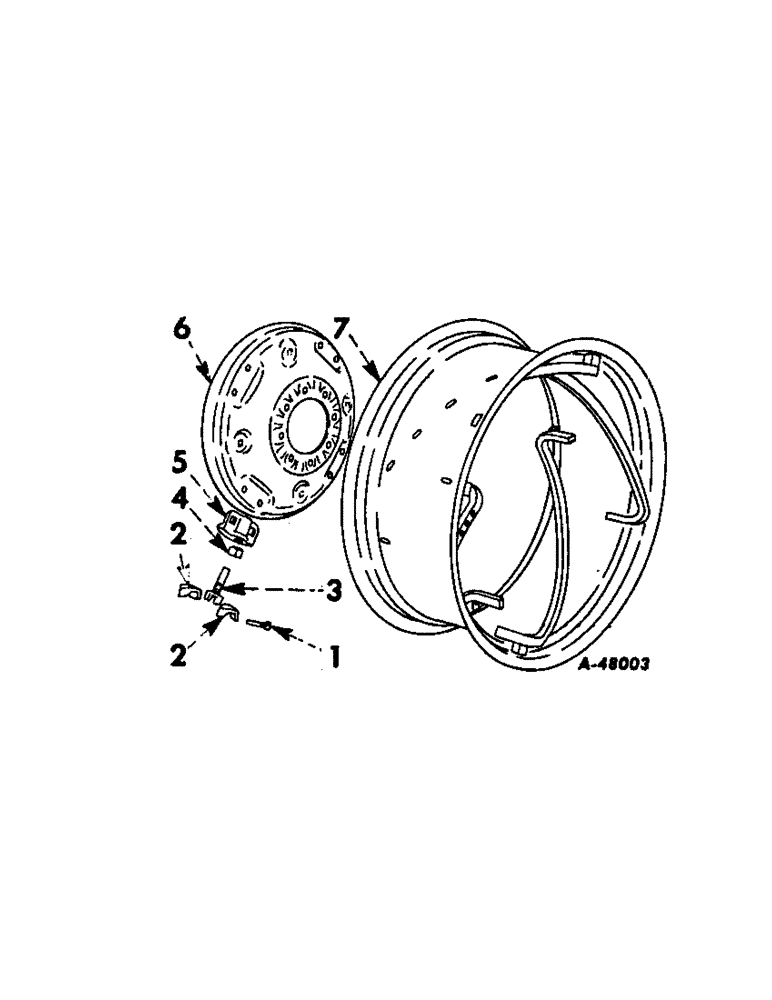

Запчасти Case IH 484 (15-03) - WHEELS AND TRACTION, POWER ADJUSTED REAR WHEELS, TRACTORS BUILT PRIOR TO 1982 Wheels & Traction

365323R92

WHEEL ASSY, W12-28 power adjusted rear

2шт.

397106R91

WHEEL ASSY, W13-28 power adjusted rear

2шт.

1

365326R1

SCREW

power adjusted rear wheel stop

4шт.

2

365327R2

STOP

BODY, power adjusted rear wheel stop

4шт.

3

365329R1

JACK SCREW

power adjusted rear wheel jack

8шт.

4

365328R1

NUT

power adjusted rear wheel jack screw

8шт.

5

365330R1

BODY

power adjusted rear wheel jack screw

8шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8 x 1-1/2 crg type 1

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

365325R1

DISC, power adjusted rear wheel

1шт.

7

365324R92

RIM

ASSY, power adjusted rear wheel, W12-28 rim for 13.6.-28 or 14.9-28 tire

2шт.
