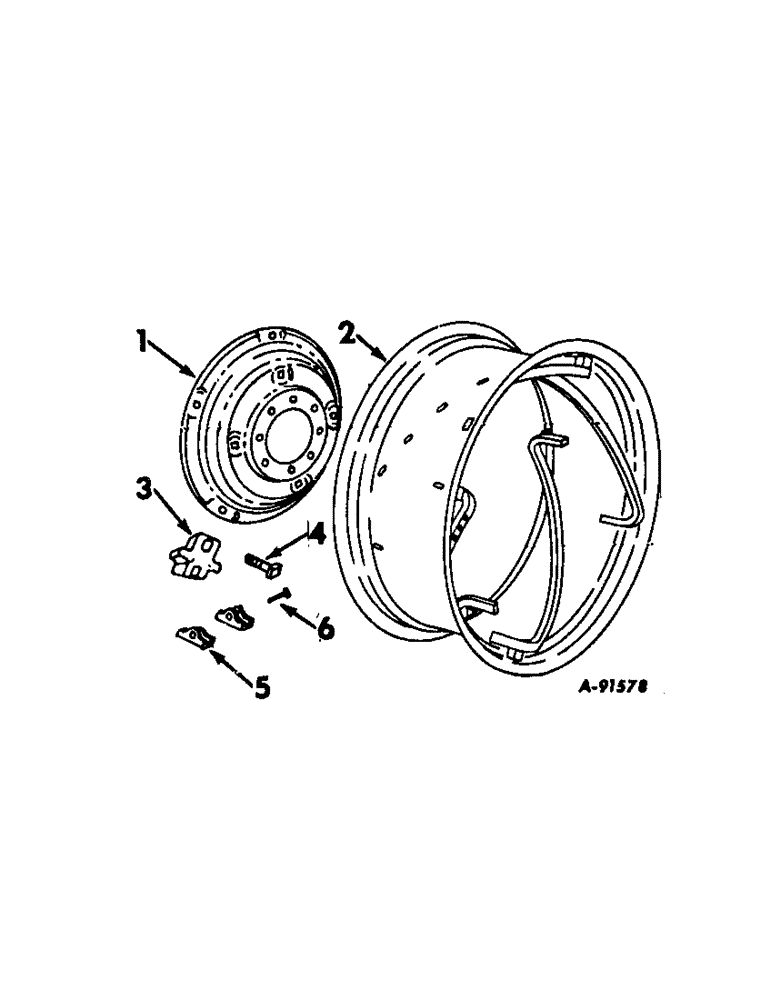

Запчасти Case IH 484 (15-03[A]) - WHEELS AND TRACTION, POWER ADJUSTED REAR WHEELS Wheels & Traction

WHEEL ASSY (NSS) W12-28 power adjusted rear, order components

2шт.

Tractors built 1982 and since.

1шт.

WHEEL ASSY (NSS) W14L-30 power adjusted rear, order components

2шт.

1

1282567C1

DISC, WHEEL

DISC, 28 in. dia., use w/28 in. wheel

2шт.

1

399002R1

DISC, WHEEL

DISC, 30 in. dia., use w/30 in. wheel

2шт.

2

11282568C1

RIM ASSY, 28 in. for 13.6 & 14.9-28 tire, use w/28 in. wheel

1шт.

2

1282566C1

RIM

ASSY, 30 in. for 16.9-30 tire, replaces 399003R1, use w/30 in. wheel

1шт.

3

399004R1

SHIN

CLAMP, rim

5шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT, 3/4 x 2.25 sq-hd

5шт.

399006R1

WHEEL NUT

3/4 hex

5шт.

399007R1

WASHER

3/4 pln

5шт.

5

365327R2

STOP

BODY, stop, use w/rim 1282568C1 or 1282566C1

2шт.

5

399008R1

BODY, stop, use w/rim 399003R1

2шт.

6

365326R1

SCREW

stop

2шт.
