(15-01) - WHEELS AND TRACTION, FRONT WHEELS

Запчасти Case IH 484 (15-01) - WHEELS AND TRACTION, FRONT WHEELS Wheels & Traction

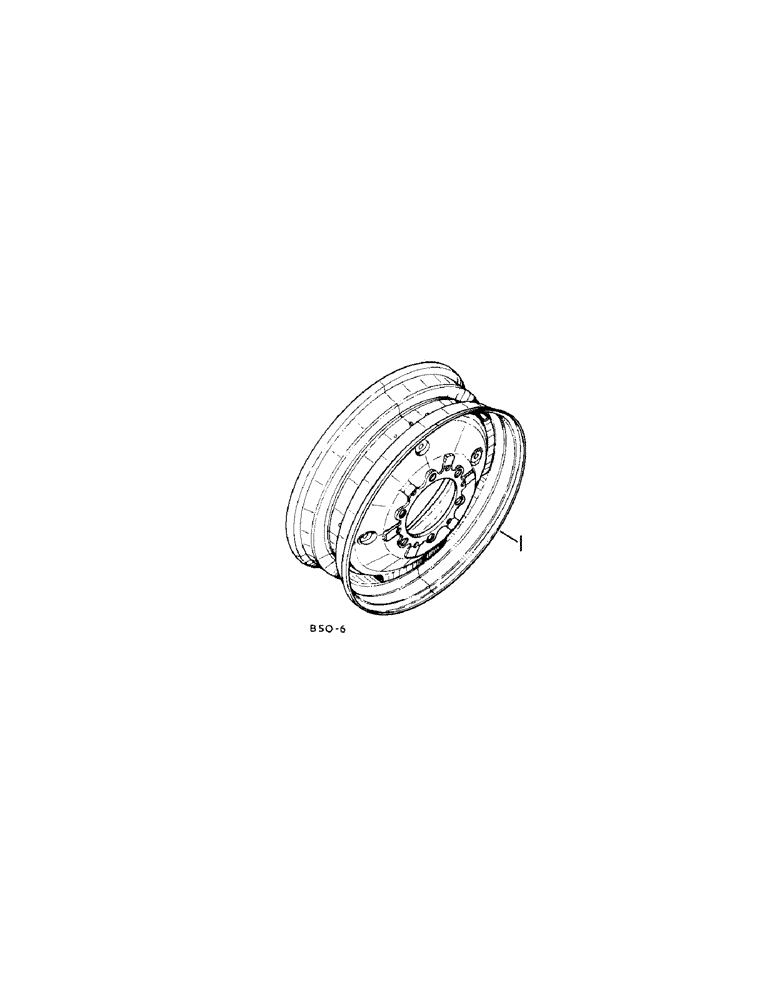

Схема запчастей Case IH 484 - (15-01) - WHEELS AND TRACTION, FRONT WHEELS Wheels & Traction
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

528687R1

WHEEL

ASSY, front disc type, w/8L-15 rim

2шт.

1

361714R91

WHEEL ASSY.

WHEEL ASSY, front disc type, w/4.25-16 dc rim

2шт.

1

G57046

WHEEL ASSY.

WHEEL ASSY, front disc type, w/5.50-16 dc rim, Replaces: 1265032C1

2шт.

1

364343R92

WHEEL

ASSY, fron tdisc type, w/5.50-16 dc rim, heavy duty

2шт.

387897R91

VALVE STEM

VALVE, tubeless tire

2шт.

483879R1

NUT

wheel

12шт.
