(15-01[A]) - WHEELS AND TRACTION, FRONT WHEELS, LOW PROFILE TRACTORS

Запчасти Case IH 484 (15-01[A]) - WHEELS AND TRACTION, FRONT WHEELS, LOW PROFILE TRACTORS Wheels & Traction

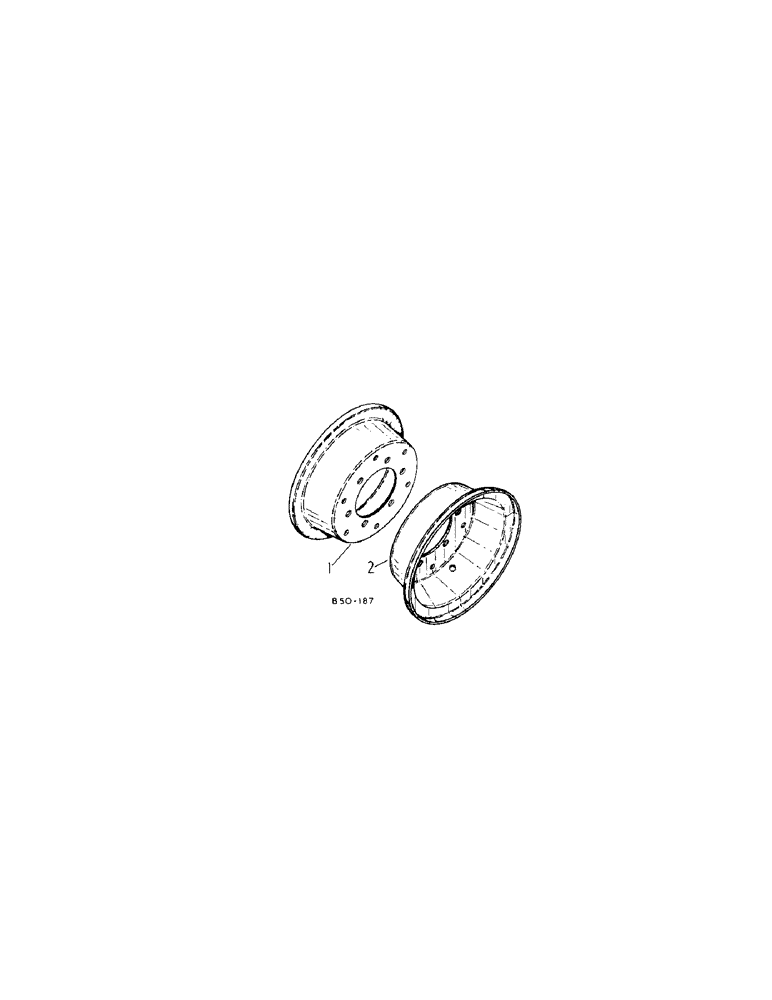

Схема запчастей Case IH 484 - (15-01[A]) - WHEELS AND TRACTION, FRONT WHEELS, LOW PROFILE TRACTORS Wheels & Traction
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

386081R1

WHEEL

9.00 x 10 front inner half

2шт.

2

386082R1

WHEEL

9.00 x 10 front outer half

2шт.

181696

BOLT, 1/2-NF x 1 type 5

12шт.

120371

NUT,1/2"-20, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.
