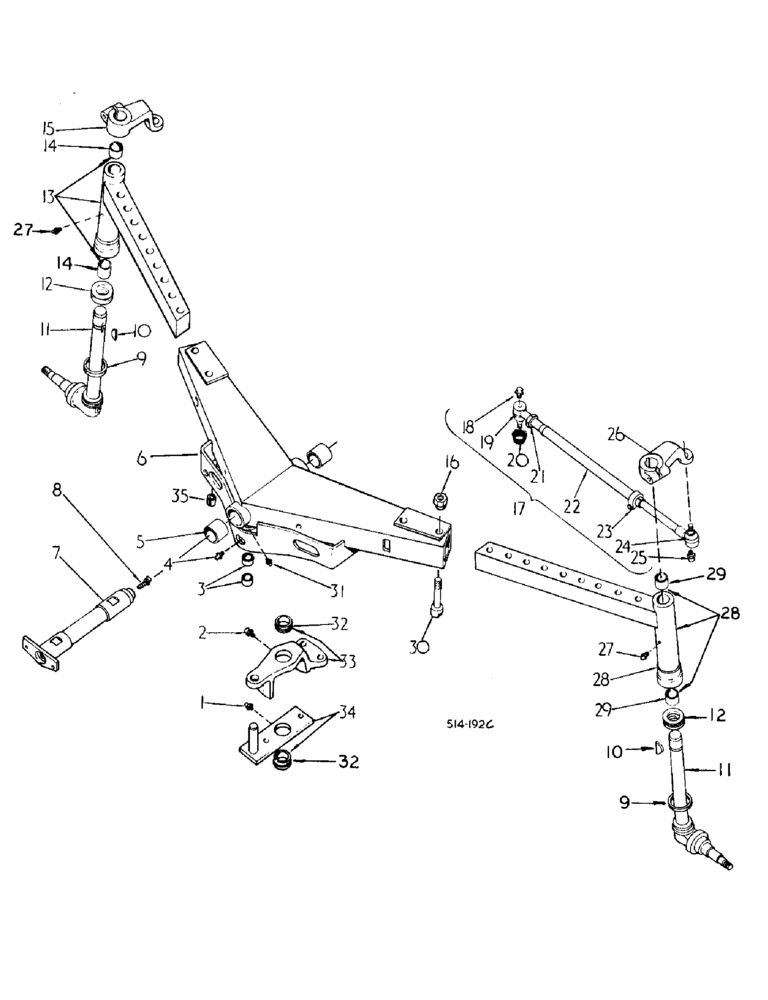

Запчасти Case IH 484 (14-05) - SUSPENSION, ADJ. FRONT AXLE, SWEPT BACK, 48 - 80 " TREAD, TRAC. W/ 1-11/16 DIA STEERING KNUCKLE POST Suspension

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 hole less ball check lub

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 hole 65D lub

1шт.

3

405574R1

BUSHING

support

2шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 hole 45D lub

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

6

539158R93

AXLE

ASSY, front, center section, Includes Refs. 3, 5, & 35

1шт.

7

539128R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

1251978C1

WASHER, hardened

2шт.

8

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 PTF short 90D lub

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

405840R12

KNUCKLE

ASSY, steering

2шт.

12

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING, steering knuckle thrust

2шт.

13

66702C91

EXTENSION

ASSY, front axle RH

1шт.

14

376099R1

BUSHING

2шт.

15

405837R1

ARM

steering knuckle RH

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

16

405576R1

NUT

front axle

4шт.

17

ROD ASSY, tie, using tie rod tube clamp as illustrated, order components Ref. no 18 to 25, of

2шт.

17

ROD ASSY, tie, using tie rod tube lock nut, order components as follows

2шт.

3116407R2

BALL JOINT

JOINT, ball, threaded end

1шт.

Stud end of joint will accept a 9/16" nut. Shaft end has 7/8" outside threads.

1шт.

3129379R1

TUBE,20.7 mm ID, 28 mm OD, 419 mm Length

ASSY, center

1шт.

P/N 3129379R1 Tube has 7/8'' inside threads.

1шт.

3129380R1

JOINT

ball, dimple end

1шт.

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW, set

1шт.

3116410R1

LOCK NUT

NUT, lock

1шт.

3116411R1

LOCK WASHER

1шт.

3116412R1

LOCK NUT

NUT, clamp

1шт.

18

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

19

527658R91

BALL JOINT

END ASSY, RH

2шт.

Stud end of joint will accept a 9/16" nut. Shaft end has 11/16" outside threads.

1шт.

19

527658R91GV

TIE-ROD

Value, Tie Rod End

2шт.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

20

358900R1

SEAL

COVER, dust

4шт.

21

390686R1

JAM NUT

11/16-18 hex jam

2шт.

22

527659R2

TUBE

tie rod

2шт.

Tube has 11/16 inch inside threads

1шт.

23

43747D

CLAMP

tie rod tube

2шт.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

7/16-20 x 1-3/4 hex hed cap

2шт.

9421096

LOCK WASHER,7/16"

2шт.

271505

BODY

7/16-NF pln type 5

2шт.

24

527660R91

END

ASSY, LH, or

2шт.

24

65082C91

END

ASSY, LH

2шт.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

26

405836R1

ARM

steering knuckle LH

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

27

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 hole less ball check lub

2шт.

28

66701C91

EXTENSION

ASSY, front axle LH

1шт.

29

376099R1

BUSHING

2шт.

30

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

31

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub

1шт.

32

379748R1

BUSHING

2шт.

33

405585R1

ARM

ASSY, power steering center

1шт.

34

405580R11

BAR ASSY.

BAR ASSY, power steering cylinder

1шт.

67976C1

PLATE, LOCKING

STRIP, center arm bolt lock

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

35

3125304R1

BUSHING

spring steel

1шт.
