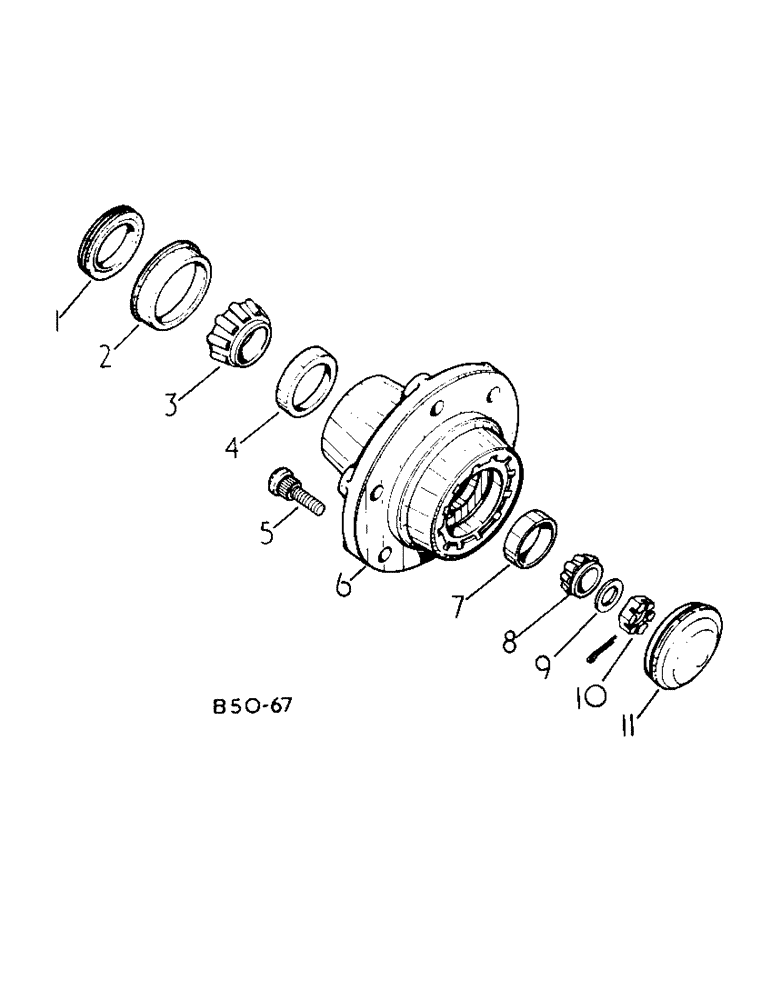

Запчасти Case IH 484 (14-04) - SUSPENSION, FRONT WHEEL HUB, BEARINGS & CAP, ADJUSTABLE FRONT AXLE SWEPT BACK Suspension

1

405832R91

SEAL

front wheel dust

2шт.

2

406293R2

RING

wear

2шт.

3

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

BEARING ASSY, inner cone

1шт.

4

536054R1

BEARING CUP,60mm OD x 11.94mm W

BEARING, inner cup

2шт.

5

528803R1

BOLT,1/2" - 20 x 1.75"

Mounting

12шт.

483879R1

NUT

wheel

12шт.

6

536058R11

HUB

ASSY, front wheel, composed of Ref. no 2, 4, 5 & 7

2шт.

7

536057R1

BEARING CUP,46mm OD x 12.06mm W

outer cup

2шт.

8

536056R91

ROLLER BEARING,0.8656" ID x 0.655"

ASSY, outer cone

2шт.

9

369936R1

WASHER

outer brg retainer

2шт.

10

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

368627R1

WASHER

2.250 x 2.530 x .250 felt

2шт.

11

612884R1

HUB CAP

CAP, front wheel hub

2шт.
