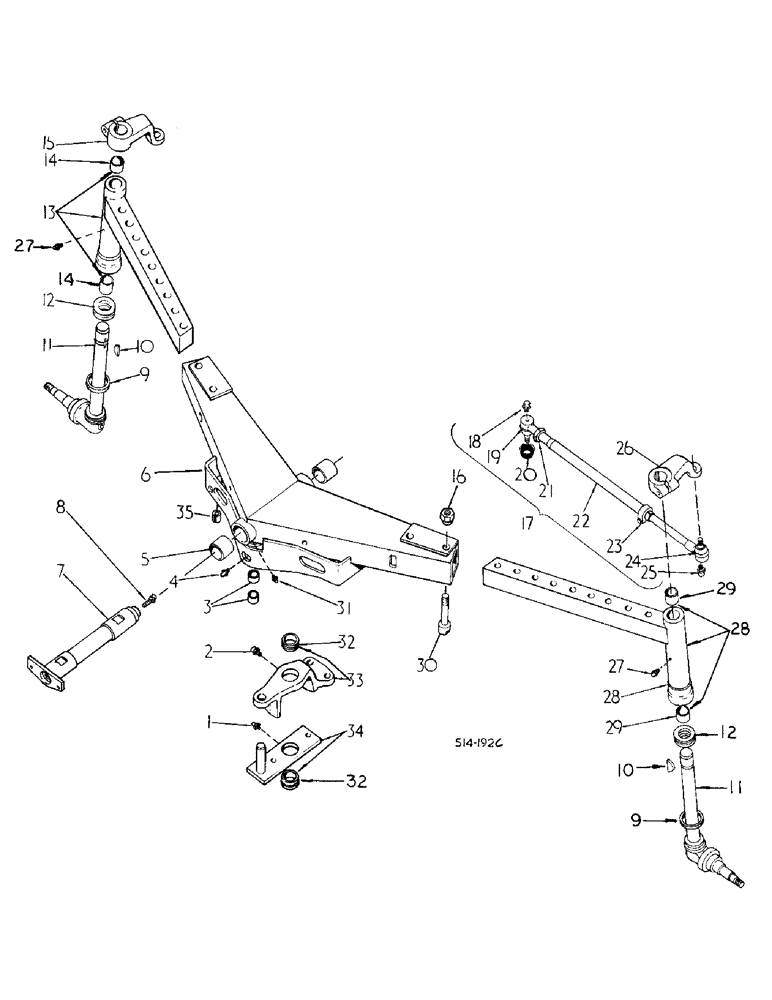

Запчасти Case IH 484 (14-03) - SUSPENSION, ADJUSTABLE FRONT AXLE, SWEPT BACK, 48 TO 80 INCHES TREAD Suspension

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, drive type str lub 3/16

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65° drive type str lub

1шт.

3

405574R1

BUSHING

support

1шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 65° angle drive type

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

6

539159R93

AXLE ASSY, front, composed of ref no. 3, 5 & 35, on orders for 539158R91 furnish 539158R93 plus clevis 3125306R1, pin 3125305R1 and bushing 3125304R1

1шт.

7

539128R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

hardened

2шт.

8

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 90° angle lub

1шт.

9

368627R1

WASHER

steering knuckle felt

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

536061R1

STEERING KNUCKLE

KNUCKLE ASSY, steering

2шт.

12

365317R91

THRUST BEARING,36.51mm ID x 2.48mm OD x 16.51mm W

steering knuckle thrust

2шт.

13

66696C91

EXTENSION

ASSY, front axle RH

1шт.

14

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

1шт.

15

405834R1

ARM

steering knuckle RH

1шт.

102637

NUT,1/2"-13, G5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 3 pln type 5

1шт.

16

405576R1

NUT

front axle

4шт.

17

ROD ASSY, tie, using tie rod tube clamp as illustrated, order components ref no 18 to 25, or

2шт.

17

ROD ASSY, tie, using tie rod tube lock nut, order components as follows

2шт.

3129377R1

JOINT

ball-threaded end, stud end of joint will accept a 1/2" nut, shaft end has 7/8" outside threads

1шт.

3129378R1

ROD

JOINT, ball-dimple end, stud end to accept 1/2" nut, 13/16" diameter of dimpled end of shaft

1шт.

3129379R1

TUBE,20.7 mm ID, 28 mm OD, 419 mm Length

ASSY, center, 7/8"-16 inside threads

1шт.

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW, set

1шт.

3116410R1

LOCK NUT

NUT, lock

1шт.

3116411R1

LOCK WASHER

1шт.

3116412R1

LOCK NUT

NUT, clamp

1шт.

18

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

19

356540R91

END

ASSY, RH, stud end of joint will accept a 1/2" nut, shaft end has 11/16" outside threads

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

20

358209R1

COVER

dust

4шт.

21

390686R1

JAM NUT

11/16-18 hex jam

2шт.

22

527659R1

TUBE

tie rod, 11/16 " inside threads

2шт.

23

43747D

CLAMP

2шт.

425-117

NUT,7/16"-20, G5

7/16-NF pln type 5

2шт.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

7/16-20 x 1-3/4 cap

2шт.

9421096

LOCK WASHER,7/16"

2шт.

24

65077C91

BALL JOINT

END ASSY, LH, Replaces: 527653R91

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Straight 1/4"-28 NPT x .54" lg

1шт.

26

405833R1

ARM

steering knuckle LH

1шт.

102637

NUT,1/2"-13, G5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 3 pln type 5

1шт.

27

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str lub

2шт.

28

66695C91

EXTENSION

ASSY, front axle LH

1шт.

29

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

2шт.

30

405575R2

BOLT,Shldr, 3/4" - 16 x 3.75"

shoulder

4шт.

31

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

32

379748R1

BUSHING

2шт.

33

405579R11

ARM

ASSY, power steering center

1шт.

34

405580R11

BAR ASSY.

BAR ASSY, power steering cylinder

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

67976C1

PLATE, LOCKING

STRIP, steering center arm lock

1шт.

35

3125304R1

BUSHING

spring steel

1шт.
