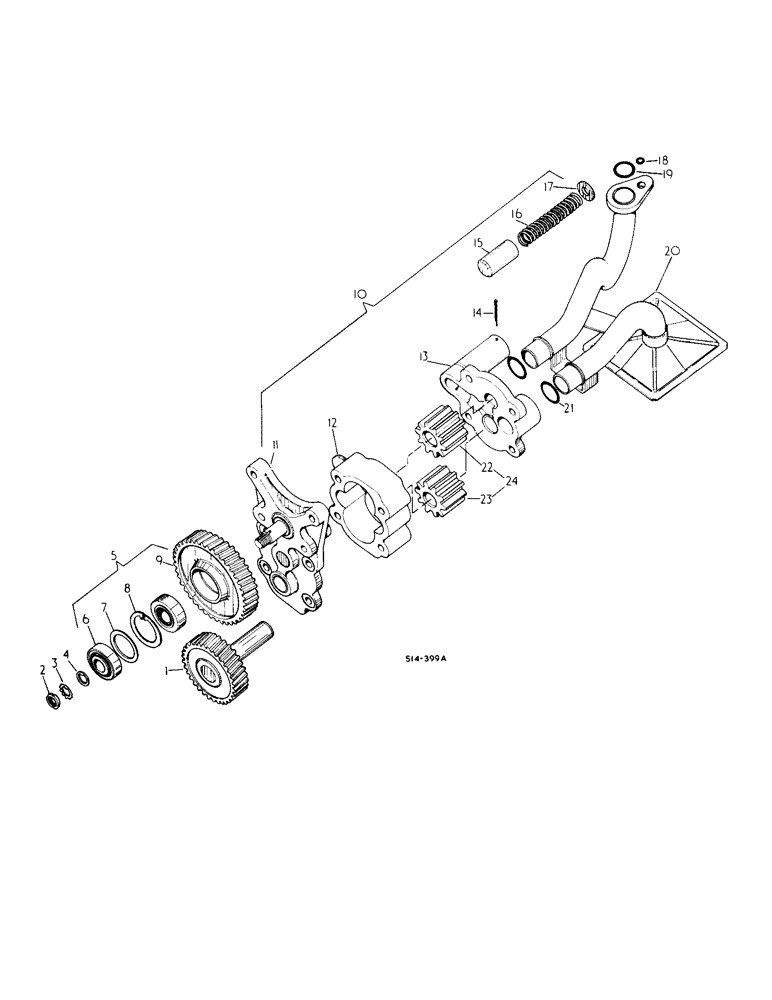

Запчасти Case IH 484 (12-42) - POWER, LUBRICATING OIL PUMP Power

3136429R95

PUMP, ENGINE OIL

PUMP ASSY, oil, consists of Refs. 2 thru 17 and Refs. 22 and 23

1шт.

3050129R1

LOCK WASHER

WASHER, lock

4шт.

21035R1

HEX SOC SCREW,5/16"-18 x 1"

4шт.

1

3136437R91

PINION

GEAR ASSY, drive

1шт.

2

3228141R1

LOCK NUT

shaft

1шт.

3

(Not used this application)

1шт.

4

(Not used)

1шт.

5

GEAR ASSY, idler, not furnished as an assembly

1шт.

6

3055294R91

TAPERED BEARING

BEARING ASSY, roller

2шт.

7

3055292R1

WASHER

WASHER

1шт.

8

933579R1

SNAP RING,M35, Int

1шт.

9

3055291R1

PINION

GEAR

1шт.

10

3136435R95

HOUSING ASSY.

CARRIER ASSY, w/3 pins, 932597R1

1шт.

932597R1

LOCK PIN,M10 x 14, Slotted

Roll M10 x 14, Slotted

3шт.

11

CARRIER, complete with bushing, not serviced separately

1шт.

3055297R5

AXLE

oil pump idler gear

1шт.

12

CASE, oil pump gear, not serviced separately

1шт.

13

COVER ASSY, oil pump, not serviced separately

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

14

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

15

3055202R2

VALVE

piston relief

1шт.

16

3136264R1

SPRING

pressure relief valve

1шт.

17

3139620R1

SPRING WASHER

spring

1шт.

18

717222R1

O-RING

1шт.

19

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

replaces 3055199R1

1шт.

20

3132828R94

PIPE ASSY.

PIPE ASSY, oil pressure and suction

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

3050129R1

LOCK WASHER

WASHER, lock

1шт.

21

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

replaces 3055199R1

2шт.

22

GEAR (NSS) idler

1шт.

23

GEAR (NSS)

1шт.

24

3136440R91

GEAR-SET

SET, oil pump gears

1шт.
