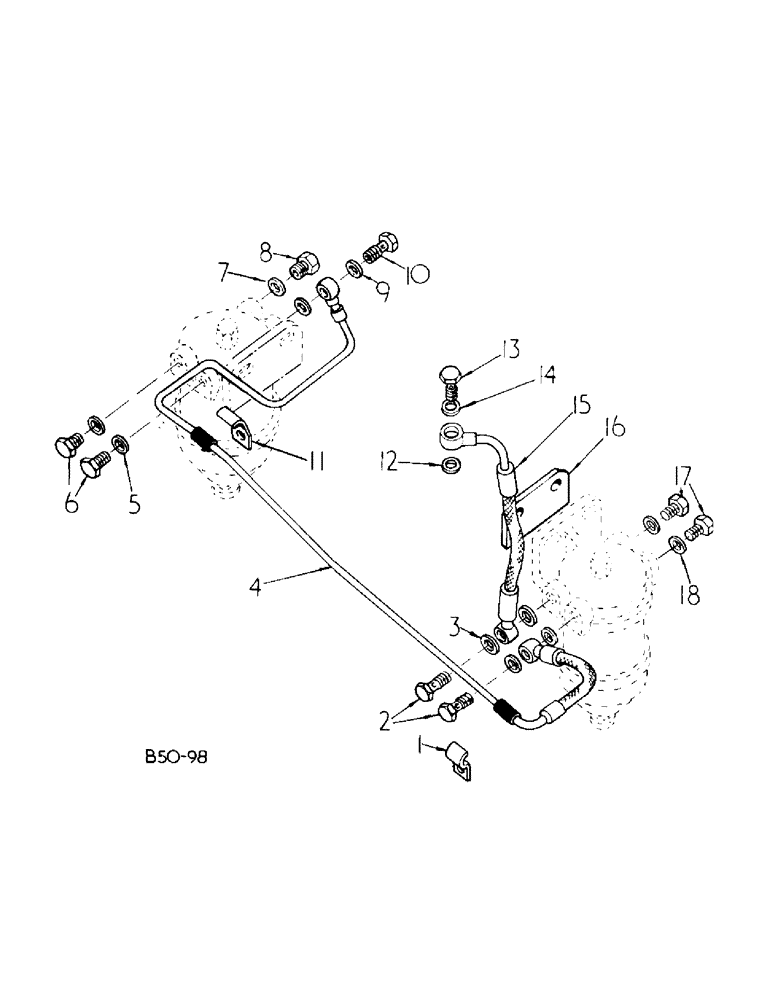

Запчасти Case IH 484 (12-40) - POWER, FUEL FILTER CONNECTIONS, ENGINE SERIAL NO. 376419 AND BELOW Power

1

3056927R1

CLAMP

CLIP, fuel line

1шт.

2

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

2шт.

3

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

4

3218478R1

PIPE

HOSE, fuel

1шт.

5

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

6

712616R1

PLUG,Hex, M14 x 1.5

Closing Hex, M14 x 1.5

2шт.

7

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

8

3056600R1

ADAPTER

1шт.

9

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

1шт.

10

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

1шт.

11

3132052R1

CLIP

fuel line

1шт.

12

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing M12 x 18 x 1.5

1шт.

13

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW, hollow

1шт.

14

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

1шт.

15

3218479R1

LINE

HOSE, filter

1шт.

16

3059289R1

PLATE

fuel filter

1шт.

179842

SPACER

BOLT, 3/8 x 1-3/8 pln type 5

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

(Lock 3/8") M10.2 ID x 20 OD x 1.1 Thk

2шт.

17

712616R1

PLUG,Hex, M14 x 1.5

Closing Hex, M14 x 1.5

2шт.

18

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.
