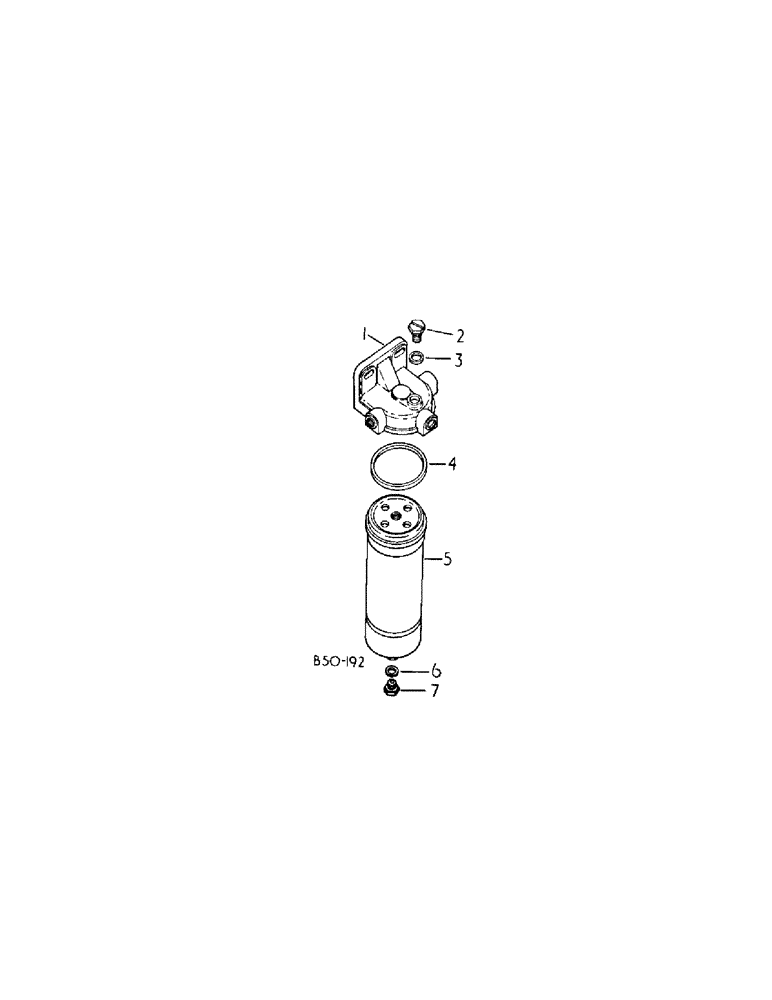

Запчасти Case IH 484 (12-35[A]) - POWER, FUEL FILTER - 3228064R91, ENGINE SERIAL NO. 376420 AND ABOVE Power

3228064R91

FILTER

fuel, w/o glass bow

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

2шт.

1

3228102R1

LID

HEAD, fuel filter

1шт.

2

3144780R1

SCREW

air vent

1шт.

3

757760R1

RING

packing air vent

1шт.

4

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING, packing

1шт.

5

3218794R91

FILTER

ELEMENT, w/rings, filter

1шт.

6

933696R1

SEALING RING,M6 x 10 x 1

RING - packing, 6 x 10 mm

1шт.

7

3144780R1

SCREW

drain

1шт.
