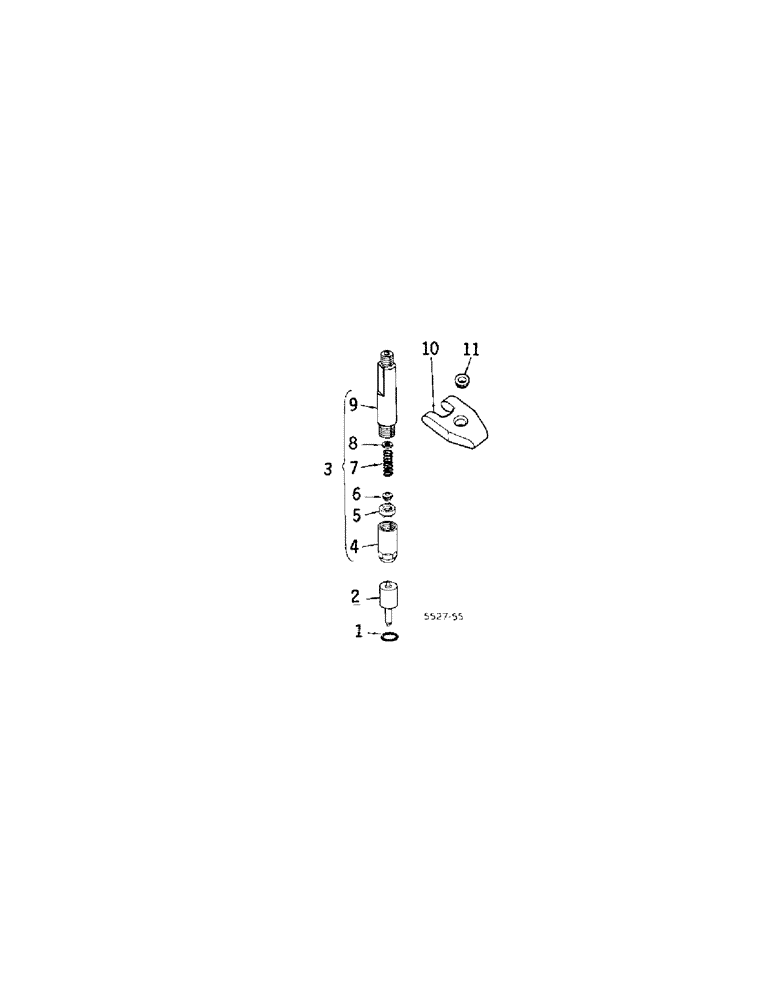

Запчасти Case IH 484 (12-34) - POWER, INJECTION NOZZLE HOLDER AND NOZZLE Power

NSS

NOT SOLD SEPARAT

HOLDER (NSS) injection nozzle, complete with nozzle, order individual components

3шт.

Engine serial no. 379591 and below.

1шт.

NSS

NOT SOLD SEPARAT

HOLDER (NSS) injection nozzle, complete with nozzle, order individual components

3шт.

Engine serial no. 379592 and above.

1шт.

1

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

O-RING

3шт.

2

3218251R2

NOZZLE CAP

NOZZLE

1шт.

Engine serial no. 379591 and below.

1шт.

2

3218248R2

NOZZLE CAP

NOZZLE

1шт.

Engine serial no. 379592 and above.

1шт.

2

735255C91

REMAN-FUEL INJECTOR

Remanufactured Nozzle

1шт.

2

1934199C1

CORE-FUEL INJECTOR

Return Number, Injection Nozzle

1шт.

3

3218247R92

HOLDER

HOLDER, nozzle, consists of items 4 thru 9 incl.

1шт.

4

3218388R1

NUT

NUT, nozzle cap

1шт.

5

3218387R1

SPACER

SPACER

1шт.

6

3218386R2

SPACER

PIN, pressure

1шт.

7

3218385R2

SPRING

SPRING, pressure

1шт.

8

3218658R1

SHIM

SHIM, .525 mm

1шт.

8

3218659R1

SHIM

SHIM, .550 mm

1шт.

8

3218660R1

SHIM

SHIM, .575 mm

1шт.

8

3218661R1

SHIM

SHIM, .600 mm

1шт.

8

3218662R1

SHIM

SHIM, .700 mm

1шт.

8

3218663R1

SHIM

SHIM, .800 mm

1шт.

8

3218664R1

SHIM

SHIM, .900 mm

1шт.

9

3218389R1

BODY

BODY

1шт.

10

3218128R1

RETAINER

RETAINER

1шт.

24477R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

BOLT, Hex, 5/16"-18 x 1", G8, Full Thd

3шт.

11

3218129R1

WASHER

WASHER, retainer bolt

3шт.
