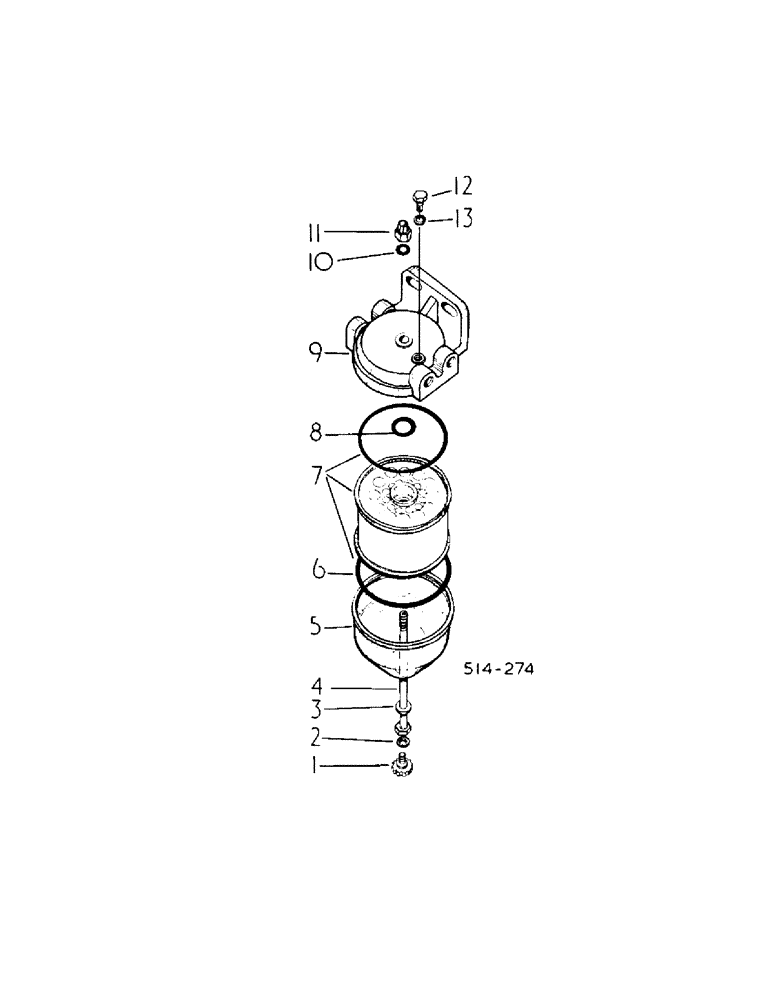

Запчасти Case IH 484 (12-34[A]) - POWER, FUEL FILTER, ENGINE SERIAL NO. 376419 AND BELOW Power

3144502R91

FILTER

fuel complete

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc M10.2 ID x 20 OD x 1.1 Thk

4шт.

1

3144475R1

SCREW

drain

1шт.

2

3144476R2

RING,7.2mm ID x 12mm OD x 1.5mm Thk

packing

2шт.

3

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

packing (replaces 31444801R1)

1шт.

4

3144479R1

BOLT,Hex, M8 x 148mm, Cl 8.8

hollow

1шт.

5

3144478R1

FILTER BOWL

glass

1шт.

6

3144472R1

RING

packing

2шт.

7

3144477R92

FILTER

ELEMENT, filter package, or

1шт.

7

3044506R93

FILTER, FUEL

ELEMENT, filter package

1шт.

8

3144779R1

RING

packing

1шт.

9

3144503R1

HEAD

1шт.

10

3144474R1

RING,8mm ID x 13mm OD x 1.5mm Thk

packing

1шт.

11

3144473R1

CROWN NUT

crown

1шт.

12

3144780R1

SCREW

air vent

1шт.

13

757760R1

RING

packing

1шт.
