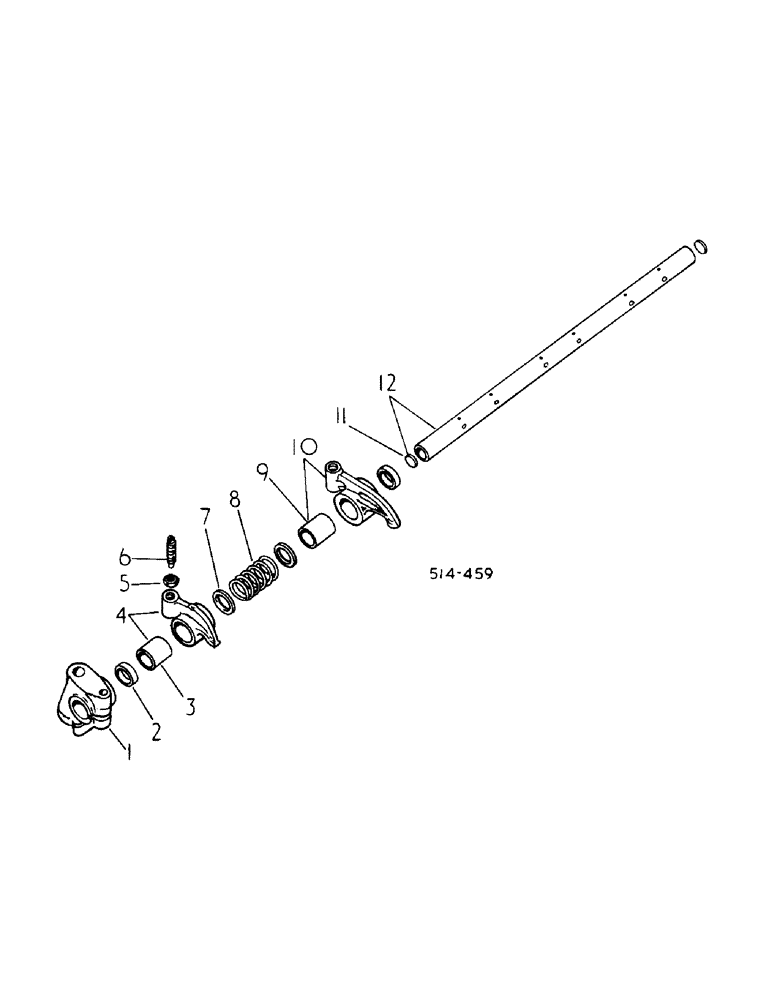

Запчасти Case IH 484 (12-33) - POWER, VALVE MECHANISM Power

1

3055077R6

SUPPORT

BRACKET, rocker arm shaft

4шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

3050129R1

LOCK WASHER

WASHER, lock

4шт.

2

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

distance

5шт.

3

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

use only w/arms requiring bushings

3шт.

4

3132293R92

ROCKER

PACKAGE, exhaust rocker arm

3шт.

5

3132138R1

NUT

rocker arm adjusting

6шт.

6

3132137R1

ADJUSTMENT SCREW

Rocker arm

6шт.

7

3055669R1

THRUST WASHER

thrust rocker arm

6шт.

8

3055075R2

SPRING

rocker arm

3шт.

9

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

use only w/arms requiring bushings

3шт.

10

3132292R92

ROCKER

PACKAGE, intake rocker arm

3шт.

11

933565R1

PLUG,M14, Conical

expansion

2шт.

12

3055069R31

SHAFT

rocker arm w/plugs

1шт.
