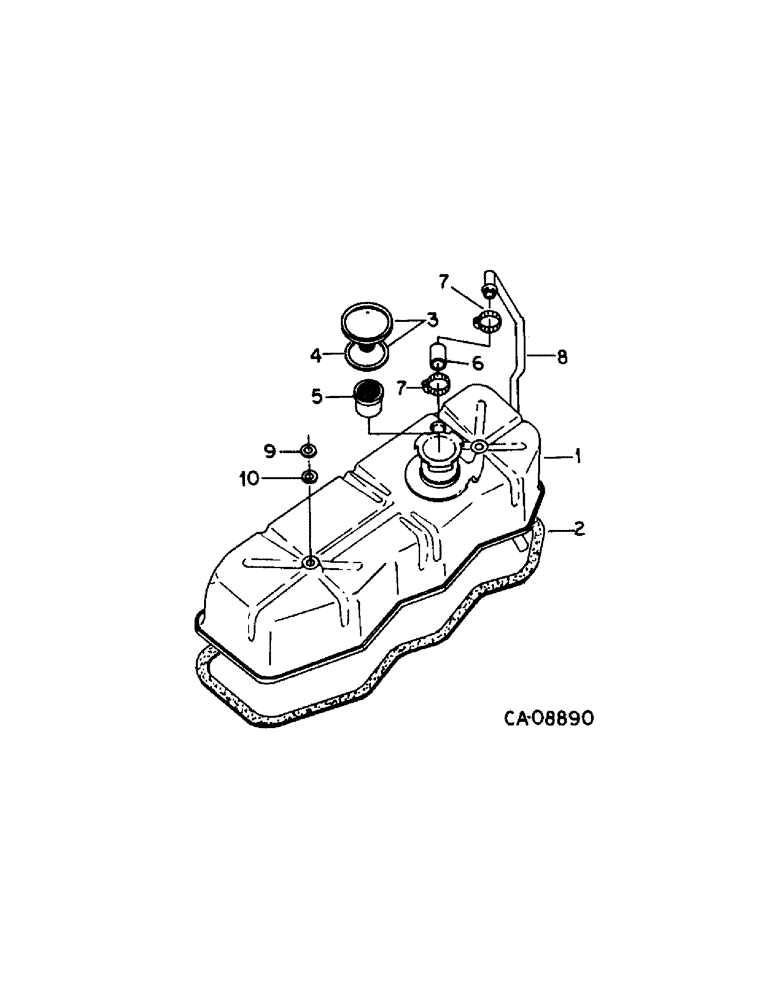

Запчасти Case IH 484 (12-29[A]) - POWER, VALVE HOUSING COVER TRACTORS WITH VALVE COVER BREATHER Power

1

3136358R13

COVER

ASSY, valve housing

1шт.

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

2шт.

2

3138641R1

GASKET

valve housing cover

1шт.

3

3136337R91

COVER

CAP, breather, includes gasket

1шт.

4

3136338R1

GASKET,45mm ID x 68mm OD x 2.3mm Thk

breather cap

1шт.

5

3136336R1

FILTER

ELEMENT, breather

1шт.

6

1806928C1

HOSE

connecting

1шт.

7

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, no. 16 type F hose

2шт.

8

1806922C1

VENTILATION PIPE

TUBE ASSY, breather

1шт.

25827R1

BOLT,Hex, 9/16" - 12 x 1", Gr 8

9/16 x 1 phc type 8

1шт.

26610R1

WASHER

.594 x 1.188 x .188 PHC HDN

1шт.

9

3138637R1

CUP WASHER

WASHER, valve cover

2шт.

10

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

valve cover

2шт.
