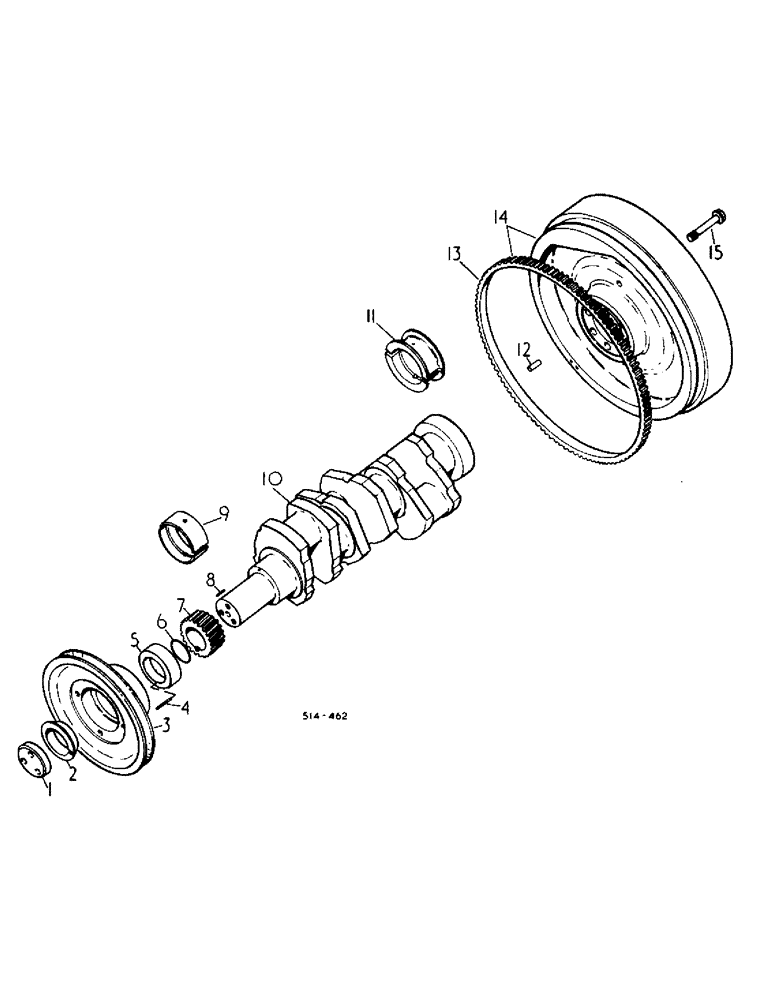

Запчасти Case IH 484 (12-28) - POWER, CRANKSHAFT, FLYWHEEL AND BEARINGS Power

1

3055154R1

WASHER

pressure

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3138874R1

BEARING WASHER

RING, clamping

1шт.

3

3144613R1

PULLEY

crankshaft, 9-11/16 inch dia., order 180848C1

1шт.

3

180848C1

PULLEY

crankshaft, 8-3/8 inch dia., replace 3144613R1 by also ordering fan 1275810C1 and belt 3129140R1

1шт.

4

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

5

RING ASSY, distance, order package 3228133r93

1шт.

6

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

7

3055028R1

PINION

GEAR, crankshaft pinion, 33T

1шт.

8

932169R1

LOCK PIN,M4 x 10, Slotted

Roll M4 x 10, Slotted

1шт.

9

3055130R21

CRANKSHAFT BEARING

BEARING ASSY, main std.

3шт.

9

3056832R21

BEARING ASSY

BEARING, main 0.25mm U/S

4шт.

Engine serial no. D374567 and above.

1шт.

10

3055782R92

CRANKSHAFT BEARING

w/bearings, std., consists of

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

CRANKSHAFT (NSS)

1шт.

141242

DOWEL

PIN

1шт.

3055028R1

PINION

GEAR

1шт.

3055129R21

CRANKSHAFT BEARING

BEARING

1шт.

3055130R21

CRANKSHAFT BEARING

BEARING

3шт.

3055351R91

BEARING ASSY

BEARING

3шт.

11

3055129R21

CRANKSHAFT BEARING

BEARING ASSY, main std.

1шт.

11

3056820R11

BEARING ASSY

BEARING, main 0.25mm U/S

1шт.

Engine serial no. D374567 and above.

1шт.

12

NLS

NO LONGER SERVICED

PIN, 3/8 x 7/8 pln uhdn dowel

1шт.

13

60883H

RING GEAR

GEAR, ring

1шт.

14

3144614R92

ENGINE FLYWHEEL

FLYWHEEL

1шт.

15

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Flywheel

7шт.

3228133R93

SEAL KIT

PACKAGE, crankshaft oil seal, replaces 3136724R94, consists of (1) retainer, distance (NSS) (1) seal, radial lip (NSS)

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

RING, sealing

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

932224R1

DOWEL,M4 x 32, Oval

PIN, 4M6X32

1шт.

932652R1

DOWEL,4mm OD x 28mm L

PIN, 4M6x28

1шт.

INSTRUCTIONS(NSS)

1шт.
