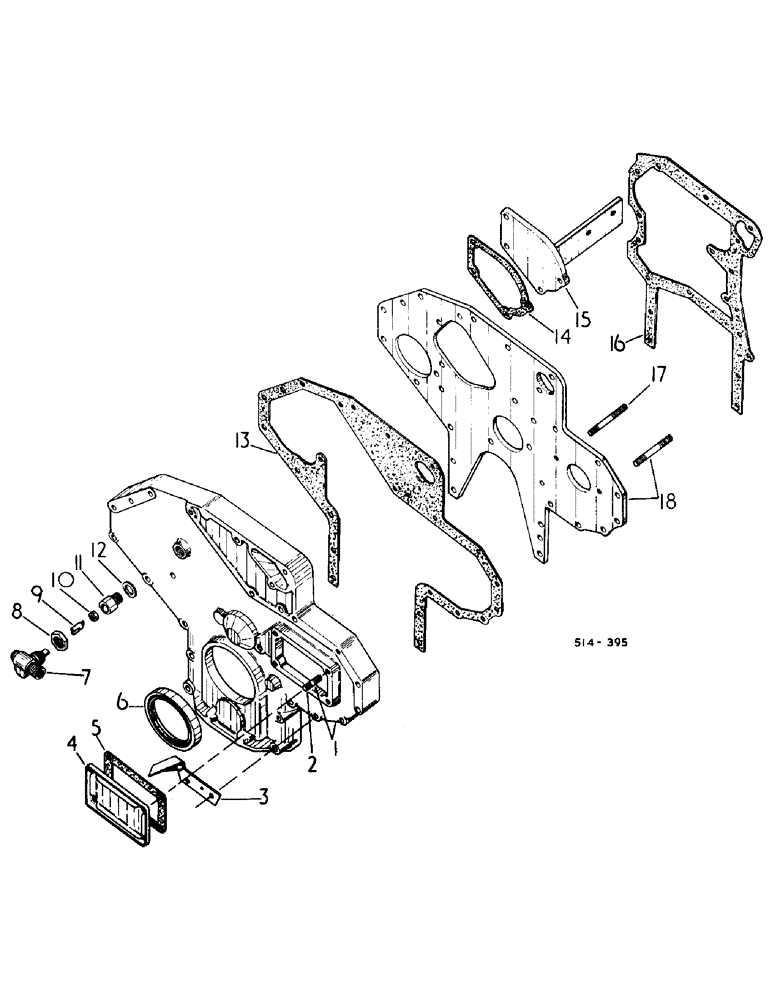

Запчасти Case IH 484 (12-25) - POWER, CRANKCASE FRONT COVER Power
№
Артикул
Название
Примечание
Количество
1
3136057R14
COVER ASSY
crankcase front
1шт.
179826
BOLT,Hex, 5/16" - 18 x 2", Gr 5
9шт.
179827
FRONT AXLE
2шт.
9635082
NUT,5/16" - 18, Gr 5
7шт.
3050129R1
LOCK WASHER
WASHER, lock
5шт.
3218395R1
BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk
6шт.
179828
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
2шт.
2
3055242R1
STUD
4шт.
3
3136252R11
INDICATOR
timing
1шт.
4
3055140R1
COVER
injection pump
1шт.
9635082
NUT,5/16" - 18, Gr 5
4шт.
131042H
WASHER
11/32 x 11/16 x 16 ga
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
5
3138640R1
GASKET
injection pump cover
1шт.
6
3228133R93
SEAL KIT
PACKAGE, crankshaft oil seal service, consists of (1) retainer, distance (NSS) (1) seal, radial lip (NSS)
1шт.
713778R1
O-RING,3mm Thk x 55mm ID
RING, sealing
1шт.
932681R1
DOWEL,4mm OD x 24mm L
Pin M4 x 24, Oval
1шт.
932224R1
DOWEL,M4 x 32, Oval
PIN, 4M6x32
1шт.
932652R1
DOWEL,4mm OD x 28mm L
PIN, 4M6x28
1шт.
INSTRUCTIONS (NSS)
1шт.
7
3055982R93
DRIVE, ANGLE
1шт.
8
3132116R1
NUT
hex
1шт.
9
3056986R1
SUPPORT
SHAFT, angle drive extension
1шт.
10
3052295R91
SEAL,6mm ID x 16mm OD x 7mm Thk
SEAL, radial lip oil
1шт.
11
3055983R1
REDUCER FITTING
SPACER
1шт.
12
3051337R1
SEALING RING,M18 x 24mm OD x 1.5mm Thk
Packing M18 x 24 x 1.5
1шт.
13
3055994R1
GASKET
crankcase front cover
1шт.
14
3132541R1
GASKET
closing cover
1шт.
15
3138776R91
COVER
ASSY
1шт.
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
4шт.
9635082
NUT,5/16" - 18, Gr 5
4шт.
16
3055239R1
GASKET
front plate
1шт.
17
3055065R1
STUD
Bosch injection
2шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
18
3055996R11
PLATE ASSY.
PLATE ASSY, crankcase front, Bosch injection
1шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
5/16 x 5/8 pln type 5
7шт.
3050129R1
LOCK WASHER
WASHER, lock
7шт.
20990R1
PLUG
hex hd
1шт.
Выбрано товаров: 40
