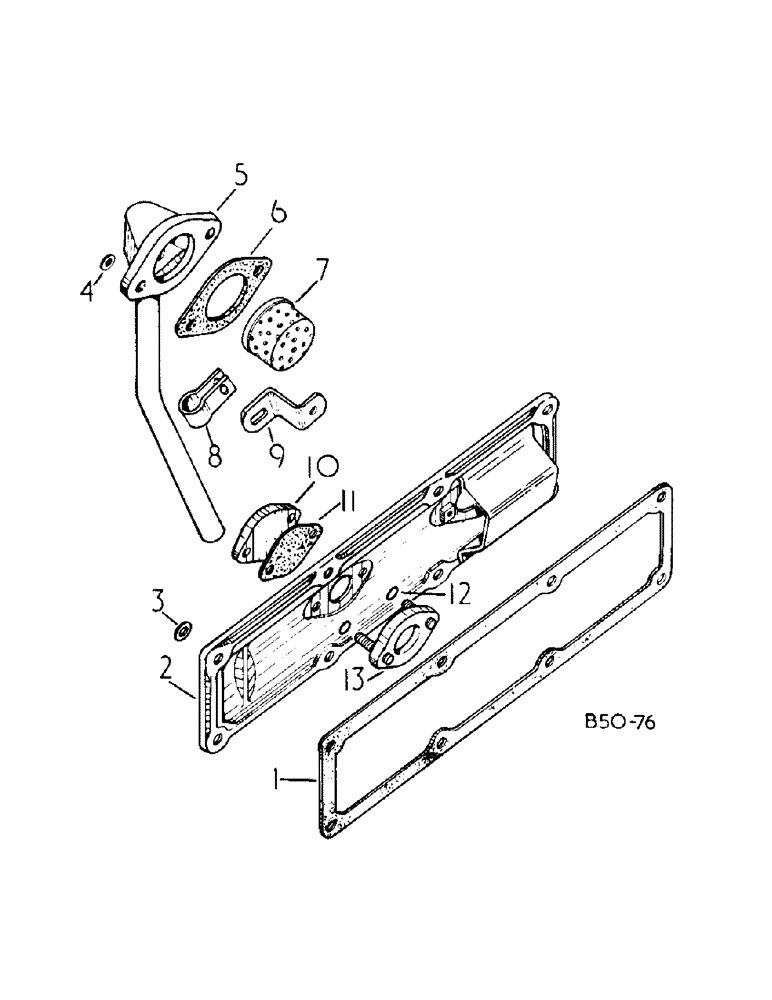

Запчасти Case IH 484 (12-22) - POWER, CRANKCASE SIDE COVER, TRACTORS WITH SIDE COVER BREATHER Power

1

3055394R1

GASKET

side cover, replaces 3136174R1

1шт.

2

3055313R31

COVER

ASSY, crankcase side

1шт.

179814

SPACER

5/16 x 5/8 pln type 5

7шт.

3050129R1

LOCK WASHER

WASHER, lock

8шт.

3

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.355 x .748 x .398

8шт.

4

3138687R1

RING

packing

2шт.

5

3144020R91

BREATHER ASSY.

BREATHER ASSY, crankcase

1шт.

3144789R1

COVER

used w/valve cover attachment

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

6

3138639R1

GASKET

breather

1шт.

7

3055324R92

HYDRAULIC OIL FILTER

ELEMENT ASSY, filter breather

1шт.

8

3144023R1

CLAMP

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103634

NUT

5/16-18 hex

1шт.

9

3144022R1

BRACKET

LINK, fixing

1шт.

179900

BOLT,Hex, 9/16" - 12 x 3/4", Gr 5

9/16 x 3/4 pln type 1

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

10

3144684R1

COVER

1шт.

933682R1

BELLEVILLE WASHER,M6 Bolt Size x 12.6mm OD x 0.7mm Thk

WASHER

2шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

11

3144685R1

GASKET

cover

1шт.

12

3132869R1

O-RING

2шт.

13

3055391R41

RETAINER

FLANGE ASSY

1шт.
