(12-21[A]) - POWER, CRANKCASE SIDE COVER, TRACTORS WITH VALVE COVER BREATHER

Запчасти Case IH 484 (12-21[A]) - POWER, CRANKCASE SIDE COVER, TRACTORS WITH VALVE COVER BREATHER Power

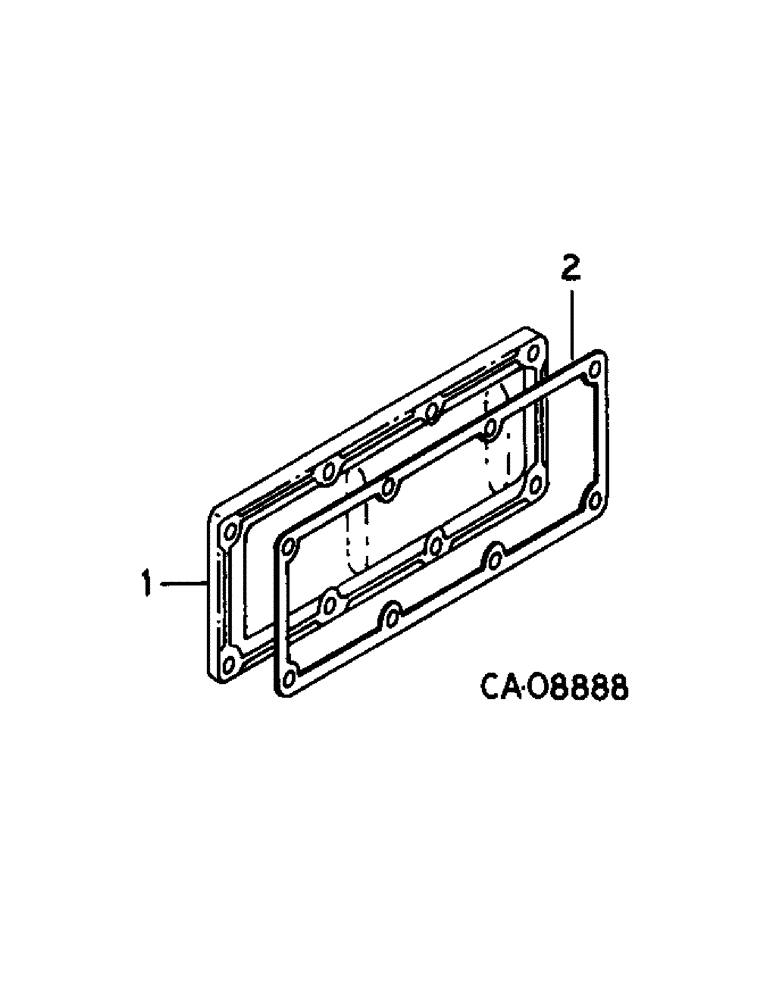

Схема запчастей Case IH 484 - (12-21[A]) - POWER, CRANKCASE SIDE COVER, TRACTORS WITH VALVE COVER BREATHER Power
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3132815R2

COVER

crankcase side

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

8шт.

3050129R1

LOCK WASHER

WASHER, lock

8шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

8.5 x 19 x 2.5mm

8шт.

2

3055394R1

GASKET

side cover

1шт.
